Helicopter skid landing gear
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2018
Issued Date -
N/A
app pub date -
Dec 19, 2013
filing date -
Dec 21, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

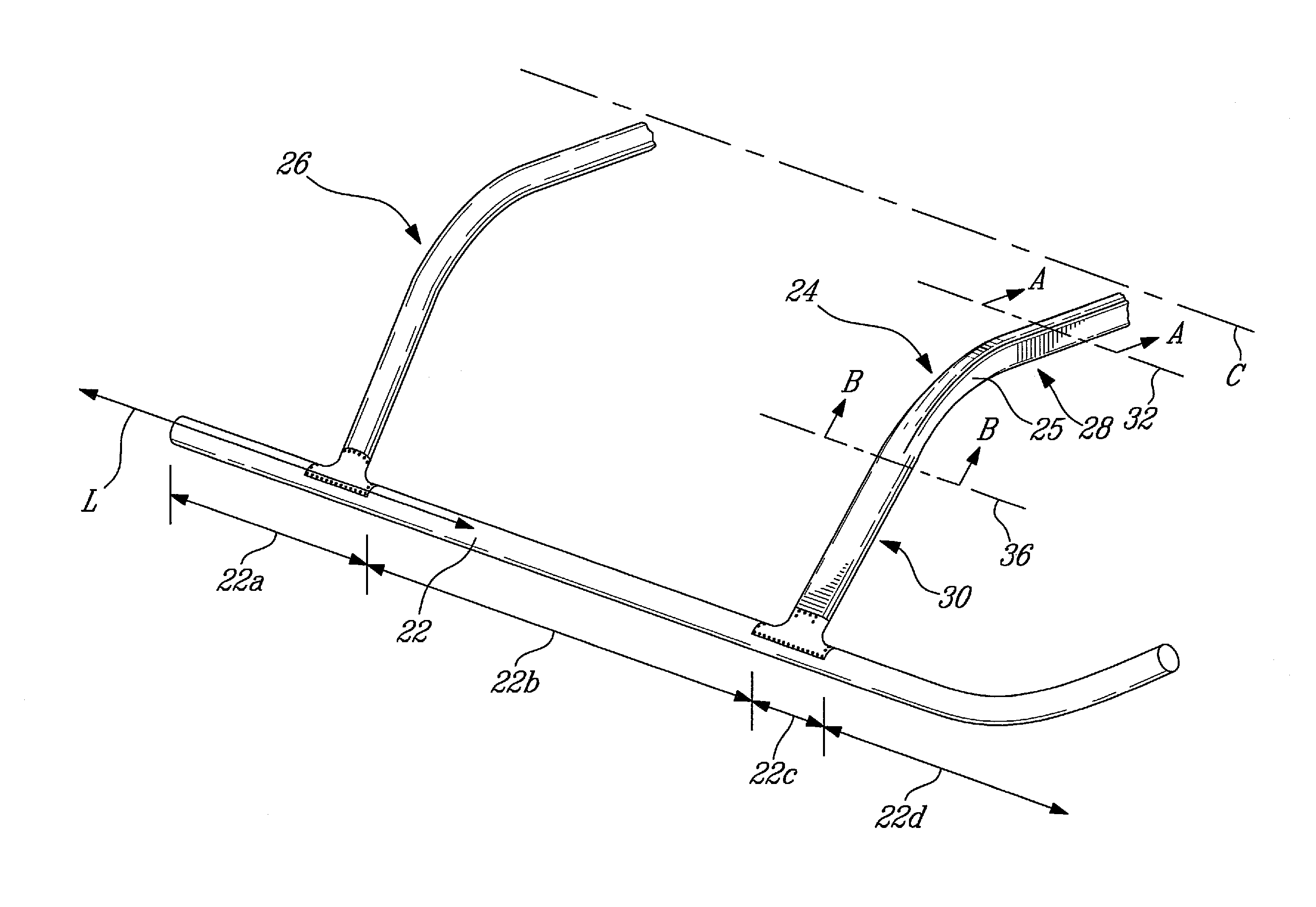

A cross tube for a helicopter skid landing gear, including a monolithic metallic tube having a central portion extending transversely between two end portions with longitudinal central axes of the central portion and of the end portions being located in a plane, where the central portion has inner and outer heights, the end portions each have inner and outer heights, and the inner and outer heights of one of the central portion and the end portion are respectively greater than the inner and outer heights of the other of the central portion and the end portion. A skid tube with two portions with cross-sections having one or both of different orientations with respect to one another and different dimensions with respect to one another, and a method of forming a structural tube for a helicopter skid landing gear are also provided.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B64C Class
- 1064 Applications Filed
- 965 Patents Issued To-Date
- 90.70 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- B64C Class
- 24.15 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 12, 2029 |
