Human-machine interface device and method for sensory augmentation in a vehicle environment
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2018
Issued Date -
N/A
app pub date -
Sep 16, 2016
filing date -
Sep 16, 2016
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

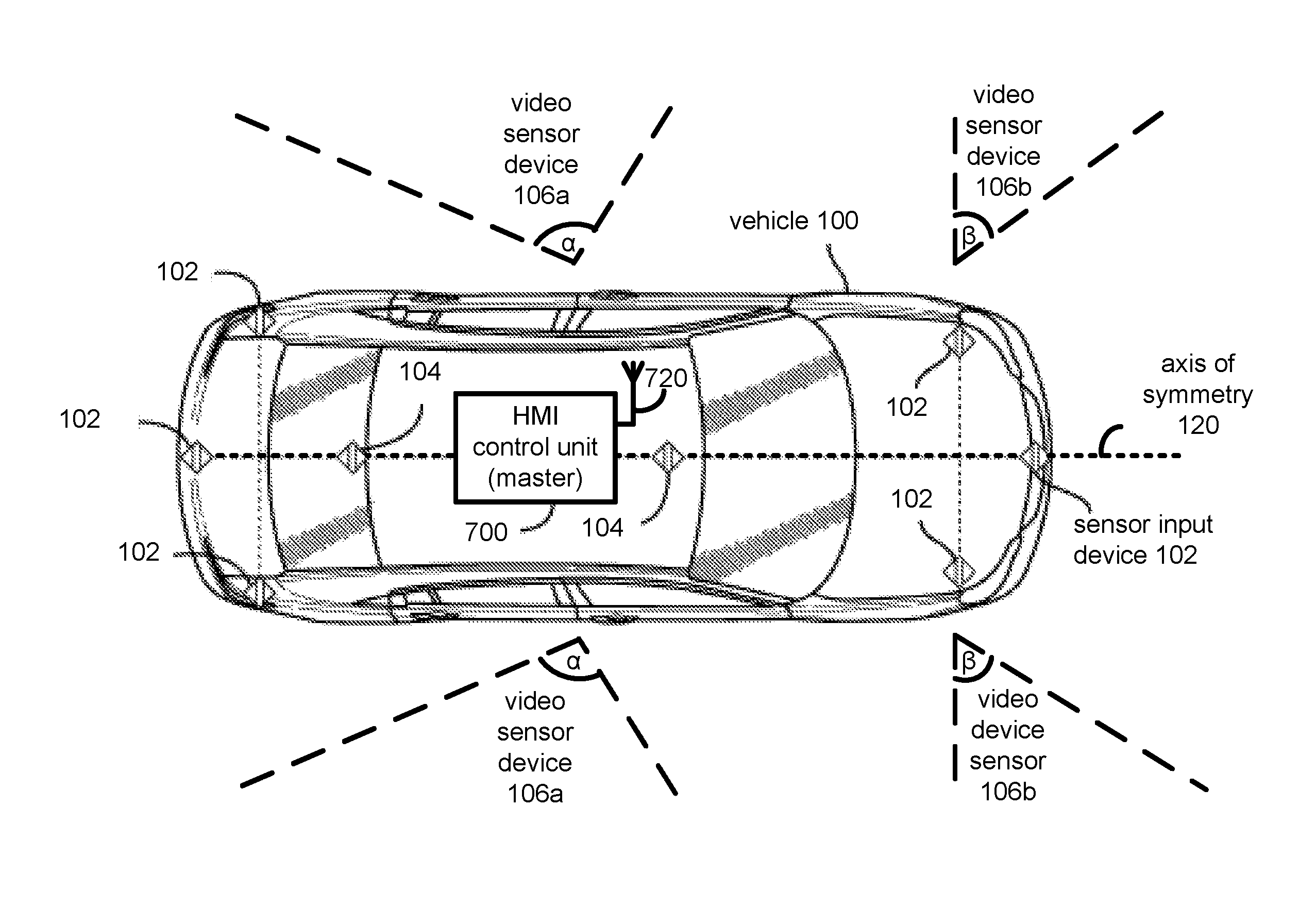

A device and method for a human machine interface (HMI) device to provide sensory augmentation in a vehicle environment are disclosed. The device and method include receiving, via a vehicle network, location data relating to a vehicle obstacle identified by a vehicle sensor. With the location data, the device and method include identifying a haptic device of a plurality of haptic devices correlating to the location data and to a directional reference, wherein the plurality of haptic devices distributed in a defined-relation along a wearable band device and operable to convey directional information. With the haptic device being identified, the device and method include generating a haptic signal, by the haptic device, to define a vector relating to the vehicle obstacle with respect to the directional reference.
