Vehicle rear wheel steering assist control system and control method therefor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2018
Issued Date -
N/A
app pub date -
Jan 12, 2016
filing date -
Jan 19, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

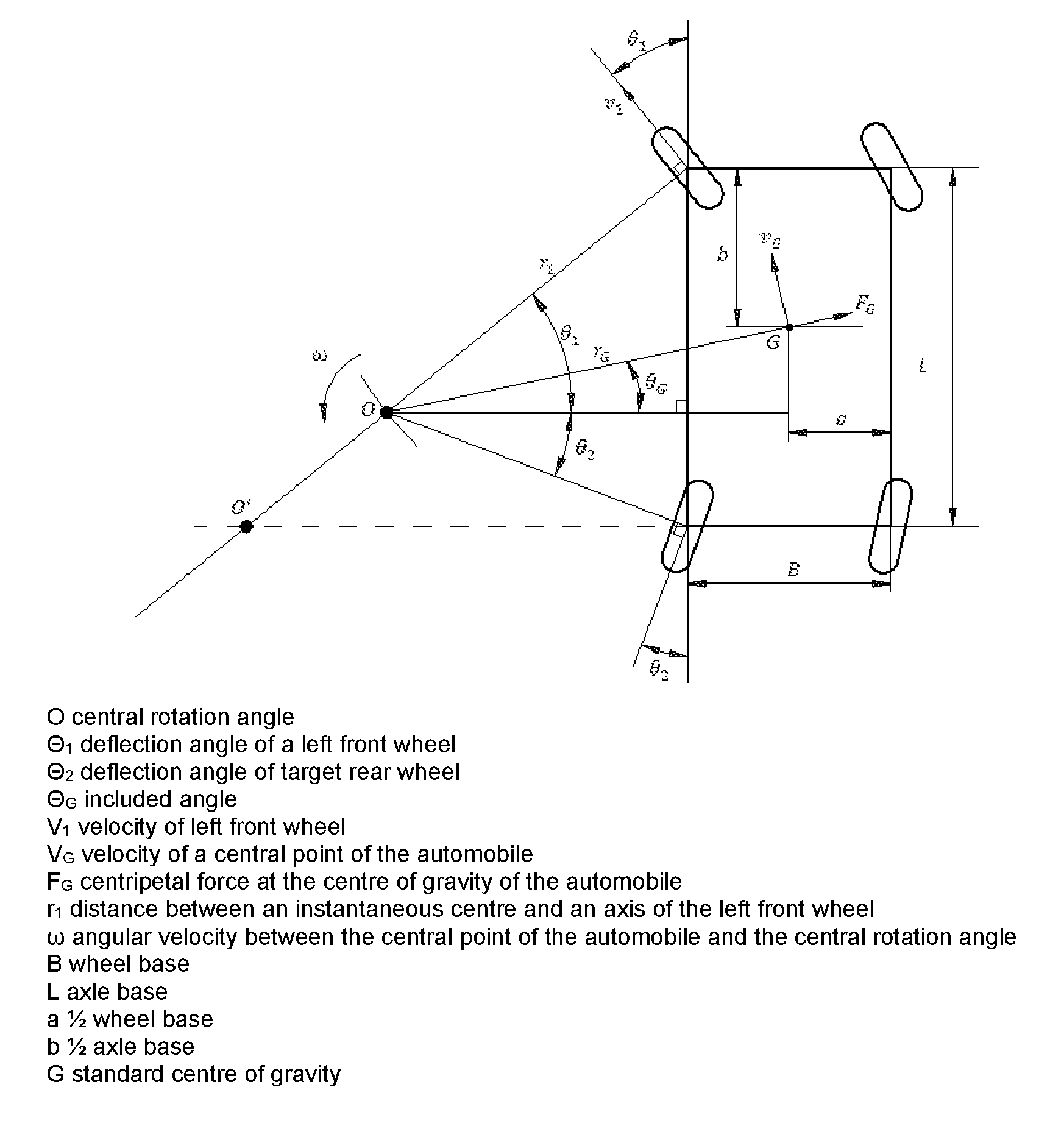

A vehicle rear wheel steering assist control system is provided where a wheel deflection angle measuring instrument is mounted at a front wheel for measuring a steering angle of the front wheel, a rotational velocity measuring instrument is also mounted at the front wheel for testing a velocity of the front wheel, output ends of the wheel deflection angle measuring instrument and the rotational velocity measuring instrument are electrically connected to the data acquisition module, the data acquisition module is electrically connected to the controller, the controller is electrically connected to a data execution module, the rear wheel active steering device is mounted at a rear wheel of the automobile, the rear wheel active steering device is electrically connected to the data execution module, the controller is electrically connected to an ECU of the automobile, each automobile seat is provided with a weight sensor, which are electrically connected to the controller.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B60G Class
- 610 Applications Filed
- 463 Patents Issued To-Date
- 75.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60G Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 12, 2029 |
