Transportation refrigeration bulkhead
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2018
Issued Date -
N/A
app pub date -
Jun 19, 2013
filing date -
Jun 19, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

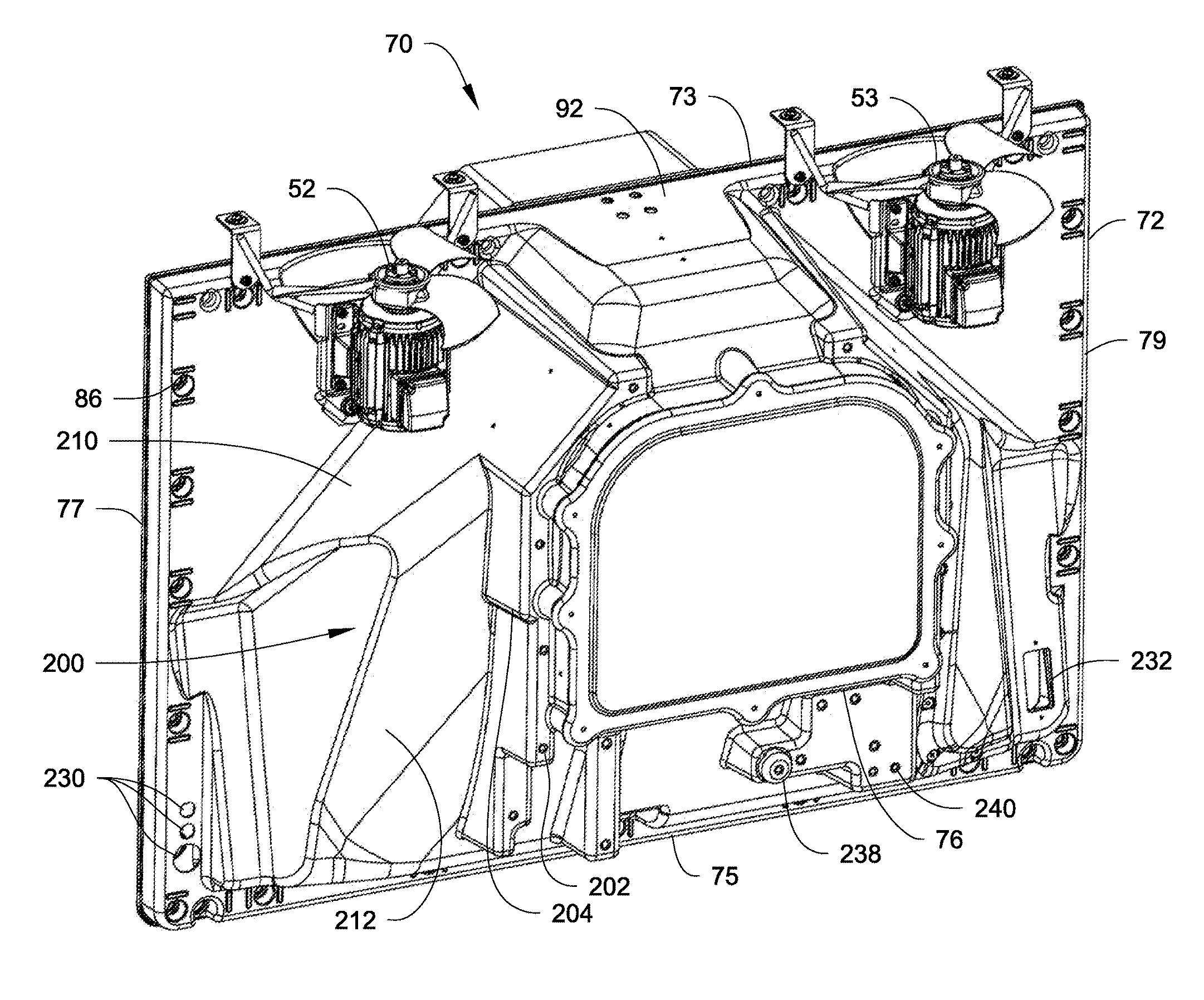

A bulkhead for a transport refrigeration unit (TRU) is provided. The bulkhead is configured to create optimal air flow on both a front side (e.g. the side where the condenser unit is located) and a rear side (e.g. the side where the evaporator unit is located) of the bulkhead, provide structural support for various components of the TRU, and provide a thermal barrier between the front side and the rear side. Also, the bulkhead is configured to include an access door and a service opening that allows a user to access TRU components located on the rear side of the bulkhead via the front side of the bulkhead. Further, the rear side of the bulkhead is configured to provide a removal support shelf that can be used as a resting surface or a sliding surface for removing components located on the rear side of the bulkhead out of the TRU from the front side of the TRU via the service opening by removing the access door.
First Claim
Other Claims data not available
Family
International Classification(s)
- B60H:ARRANGEMENTS OR ADAPTATIONS OF HEATING, COOLING, V....
- B29C:SHAPING OR JOINING OF PLASTICS; SHAPING OF SUBSTAN....
- B62D:MOTOR VEHICLES; TRAILERS
- B60P:VEHICLES ADAPTED FOR LOAD TRANSPORTATION OR TO TRA....
- F25D:REFRIGERATORS; COLD ROOMS; ICE-BOXES; COOLING OR F....
- B29K:INDEXING SCHEME ASSOCIATED WITH SUBCLASSES B29B, ....
- B29L:INDEXING SCHEME ASSOCIATED WITH SUBCLASS B29C, RE....
- 2013 Application Filing Year
- B60H Class
- 402 Applications Filed
- 357 Patents Issued To-Date
- 88.81 % Issued To-Date
