Image decoloring apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2018
Issued Date -
N/A
app pub date -
Jul 13, 2017
filing date -
Feb 3, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

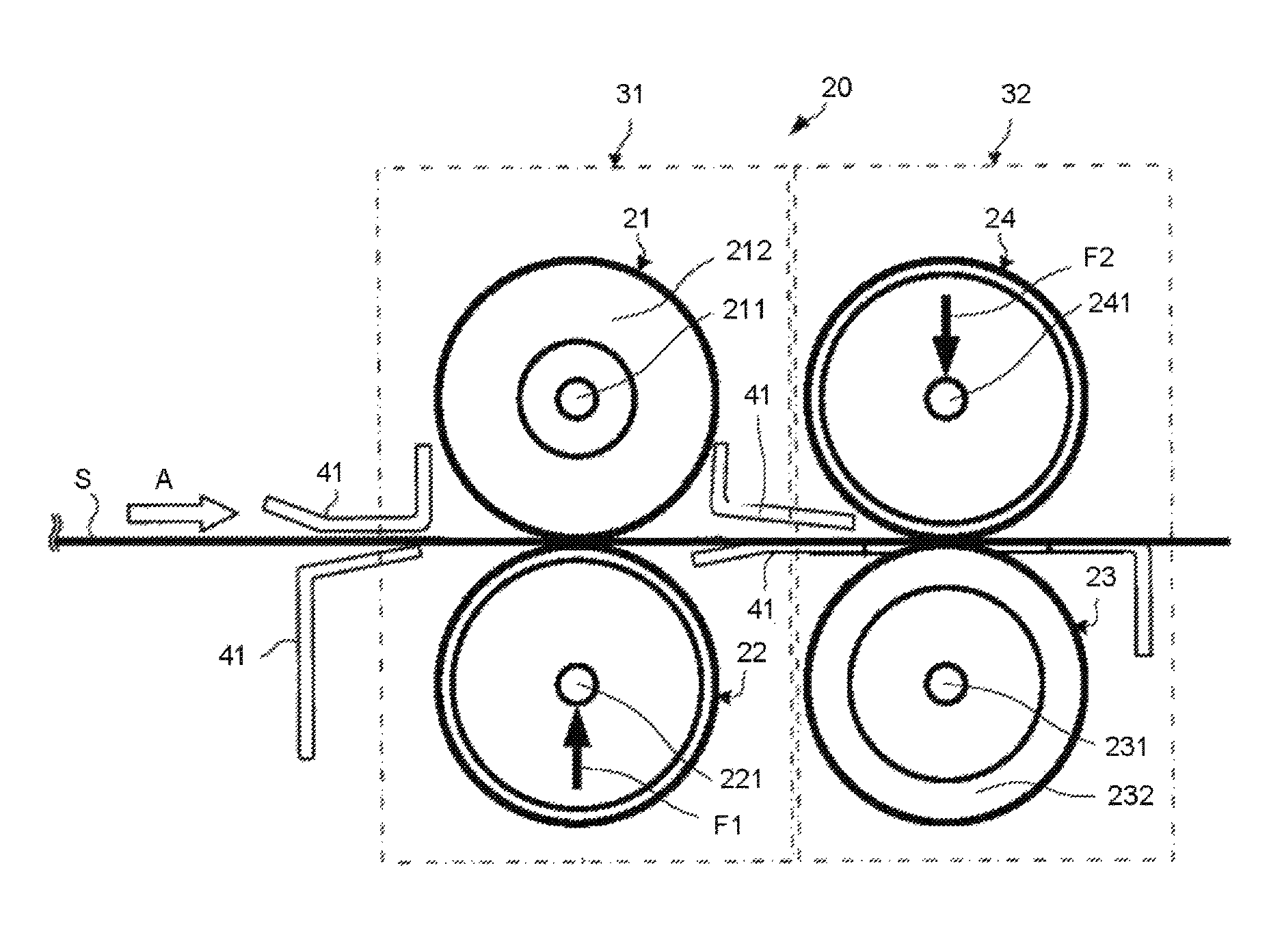

In accordance with an embodiment, an image decoloring apparatus comprises a conveyance path configured to convey a sheet on which an image is formed with a coloring agent that is decolored by heat; a first heat roller configured to be arranged at the upstream side of the conveyance path; and a second heat roller configured to be arranged at the downstream side of the conveyance path. Each of the first heat roller and the second heat roller includes a cylindrical portion and a heat source. The thickness of the cylindrical portion constituting the first heat roller is larger than the thickness of the cylindrical portion constituting the second heat roller. In this way, the heat capacity of the first heat roller is also larger than the heat capacity of the second heat roller.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B41M Class
- 639 Applications Filed
- 440 Patents Issued To-Date
- 68.86 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B41M Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 12, 2029 |
