Method for producing a sheet metal profile for a drawer pull-out guide and sheet metal profile produced thereby and drawer pull-out guide produced thereby
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2018
Issued Date -
N/A
app pub date -
Apr 30, 2015
filing date -
Nov 15, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

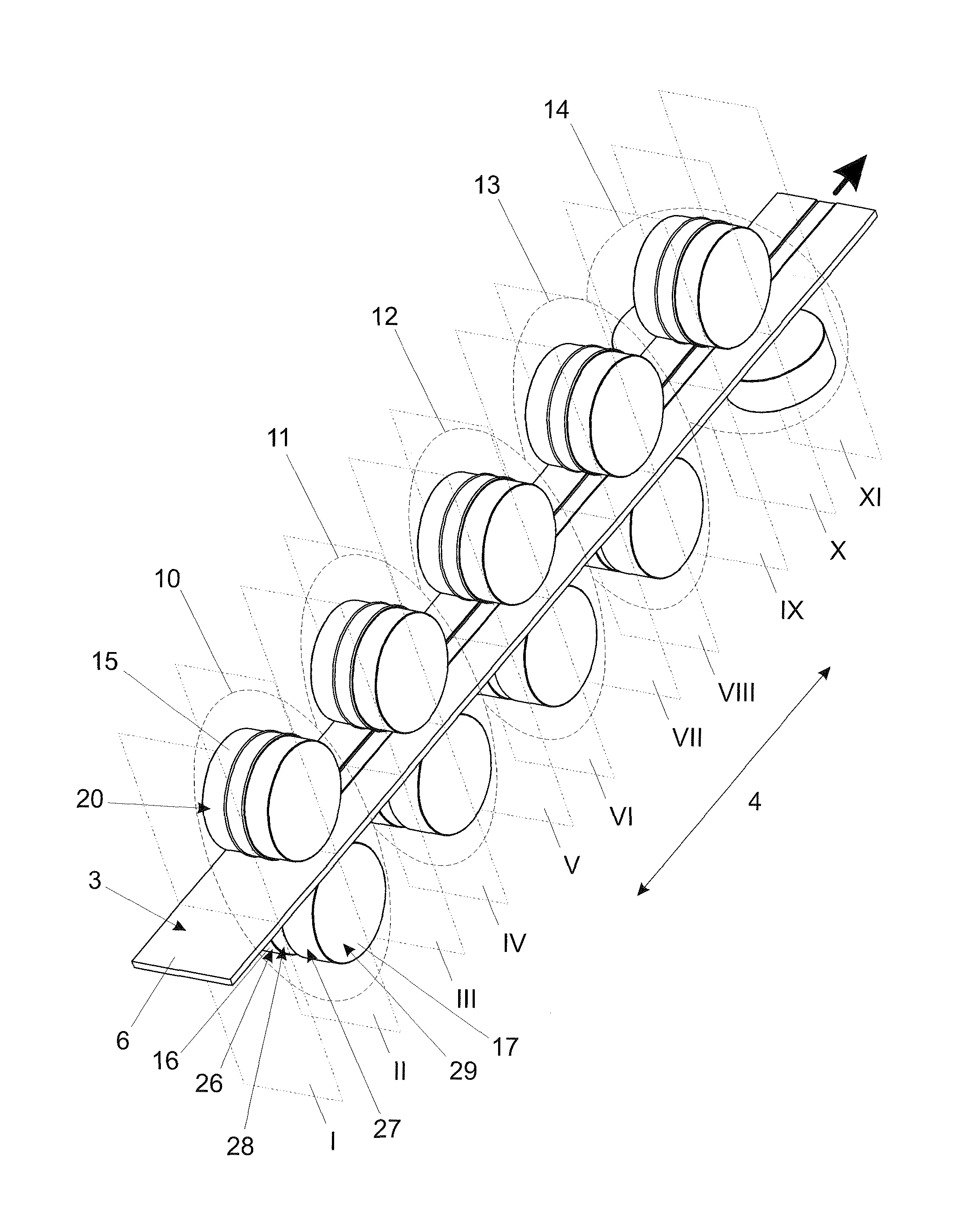

A method relates to producing a sheet metal profile, in particular consisting of steel, for a drawer pull-out guide having at least one web projecting laterally, in particular perpendicularly, from a flat surface of the sheet metal profile and extending in the longitudinal direction of the sheet metal profile. In a first method step, from at least one flat surface of a sheet metal billet, there is extruded at least one web projecting laterally, in particular perpendicularly, and extending in the longitudinal direction of the sheet metal billet. In at least one further method step, preferably in 10 to 15 further method steps, the at least one web is squeezed together, i.e. is reduced in width and increased in height. The invention further relates to a sheet metal profile produced in this manner and to a drawer pull-out guide that comprises such a profile.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- A47B Class
- 1135 Applications Filed
- 954 Patents Issued To-Date
- 84.06 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A47B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 12, 2029 |
