Robotic surgery system and surgical instrument
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2018
Issued Date -
N/A
app pub date -
Oct 24, 2014
filing date -
Apr 27, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

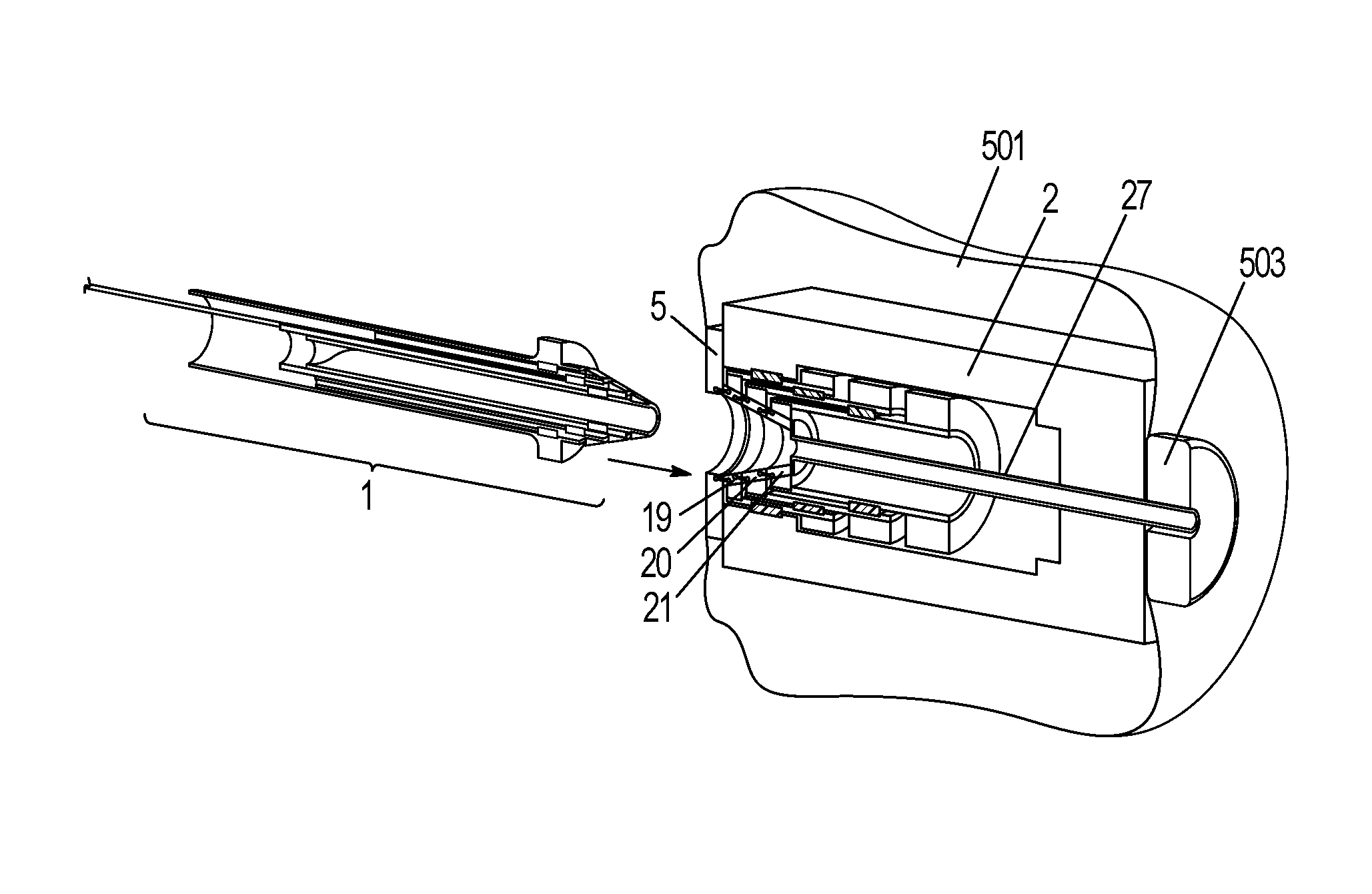

A robotic surgery system includes a robot and an instrument assembly. The instrument assembly includes a drive unit with at least one rotary drive having an electric motor and a drive shaft that has a coupling part for coupling to a drive shaft of the instrument; an instrument including an instrument shaft and a drive shaft that has a coupling part for coupling to a drive shaft of the drive unit; and an instrument interface including a sheath that encompasses the drive unit. In order to detachably couple an instrument module to an instrument part of a surgical instrument, an electromagnet in a magnet assembly of the instrument module is activated or deactivated, a permanent magnet of said magnet assembly is moved into a locking position and/or an angular position of a coupled counter element assembly of the instrument part is detected by an angle sensor of the instrument module.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- A61B Class
- 14296 Applications Filed
- 12053 Patents Issued To-Date
- 84.32 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- A61B Class
- 20.51 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 12, 2029 |
