Positioning system and methods for use with automated hair cutting systems
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2018
Issued Date -
N/A
app pub date -
Oct 28, 2014
filing date -
Jan 16, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

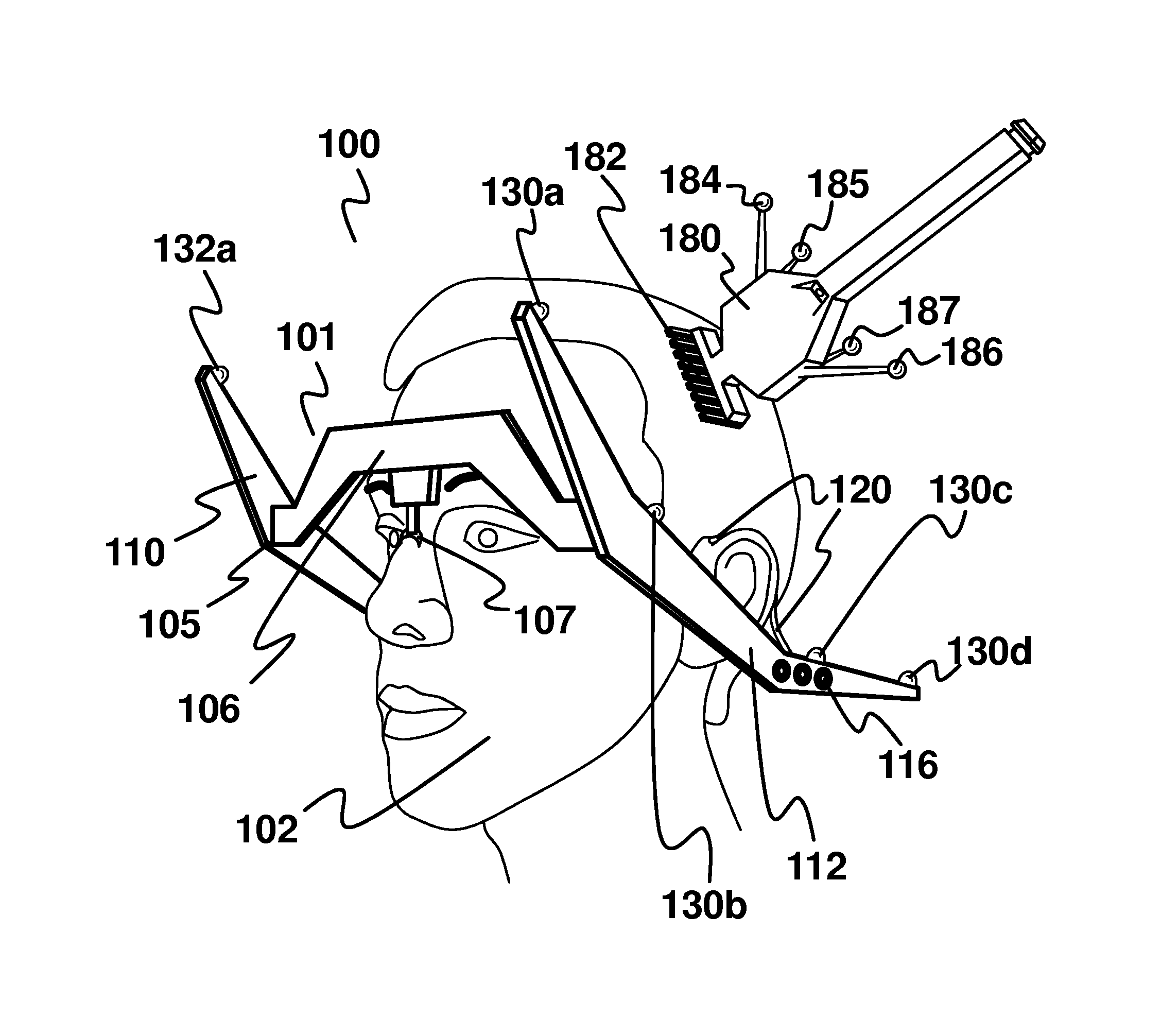

Embodiments of positioning systems and methods for use with grooming systems are disclosed herein. One embodiment of a grooming system comprises a moveable grooming device; a positioning device, and a system interface for determining positioning of the moveable grooming device relative to the positioning device. The positioning device comprises a frame having a front, a first side, and a second side; a plurality of frame supports; and a plurality of positioning interfaces. The moveable grooming device comprises at least one sensor for interfacing with the plurality of positioning interfaces. The system interface is configured to interface the plurality of positioning interfaces with the at least one positioning sensor to establish an origin position of the at least one sensor and moveable grooming device; compute a plurality of positioning ranges; and select at least two positioning ranges for calibrating one or more positions of the moveable grooming device.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B26B Class
- 250 Applications Filed
- 219 Patents Issued To-Date
- 87.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B26B Class
- 36.84 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 12, 2029 |
