Energy imaging with controlled rise and fall times
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2018
Issued Date -
N/A
app pub date -
Mar 16, 2015
filing date -
Dec 30, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

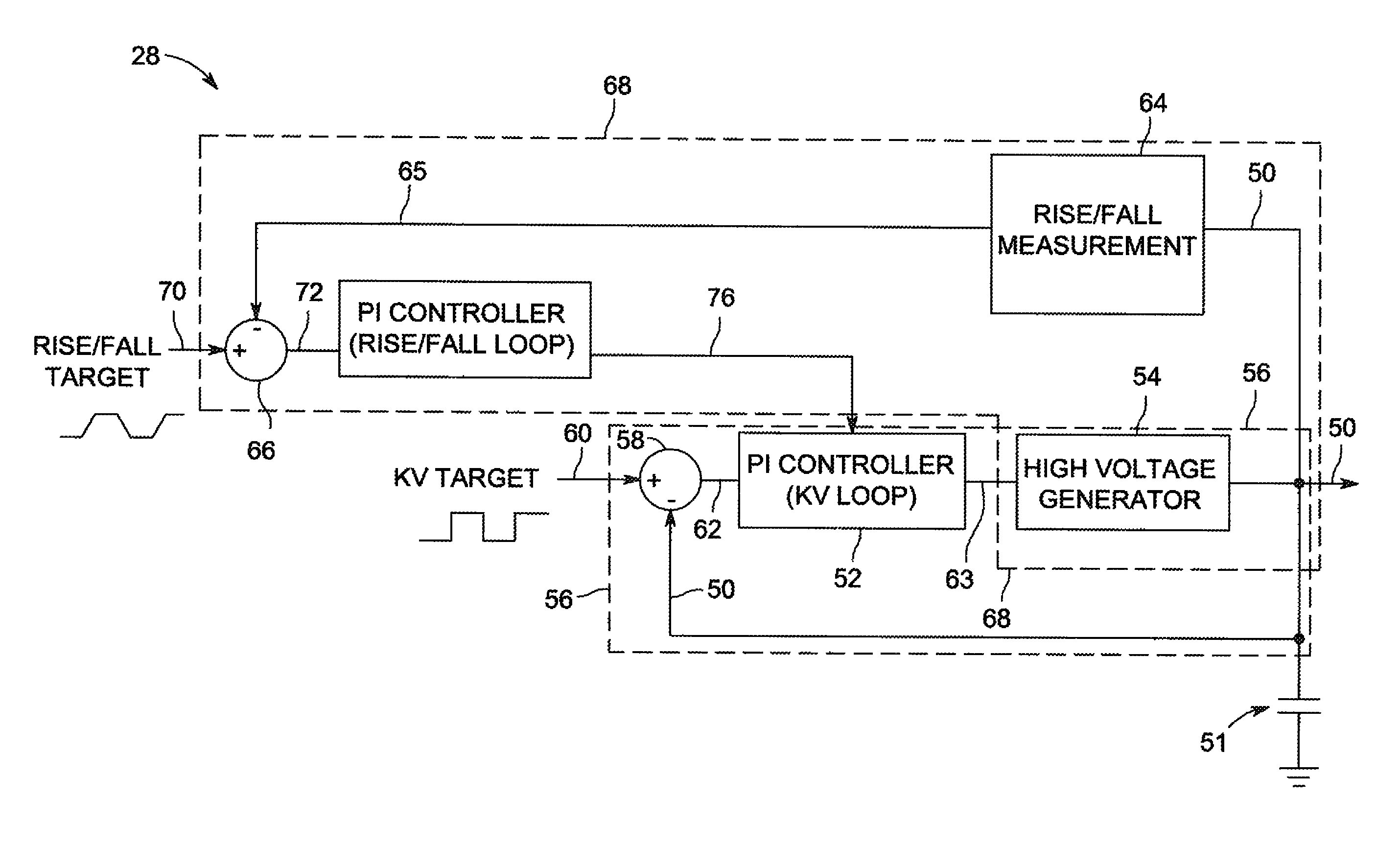

Rise times and fall times provided by a high voltage generator are controlled to maintain image quality during such scans. The rise and fall times are controlled by first measuring rise and fall times at each transition. Then, a closed-loop controller is used to adjust control parameters of the high voltage generator, based on an error determined from the measurement, to achieve substantially constant rise and fall times. This invention may be based on the implementation of two closed-loop controllers on rise and fall time of fast-kV exposures. As a result, image quality may be improved and system calibration time may be reduced.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H05G Class
- 239 Applications Filed
- 205 Patents Issued To-Date
- 85.78 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 11 Citation Count
- H05G Class
- 89.81 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 5, 2029 |
