Maximum power point tracking method and apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2018
Issued Date -
N/A
app pub date -
Mar 9, 2017
filing date -
Mar 9, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

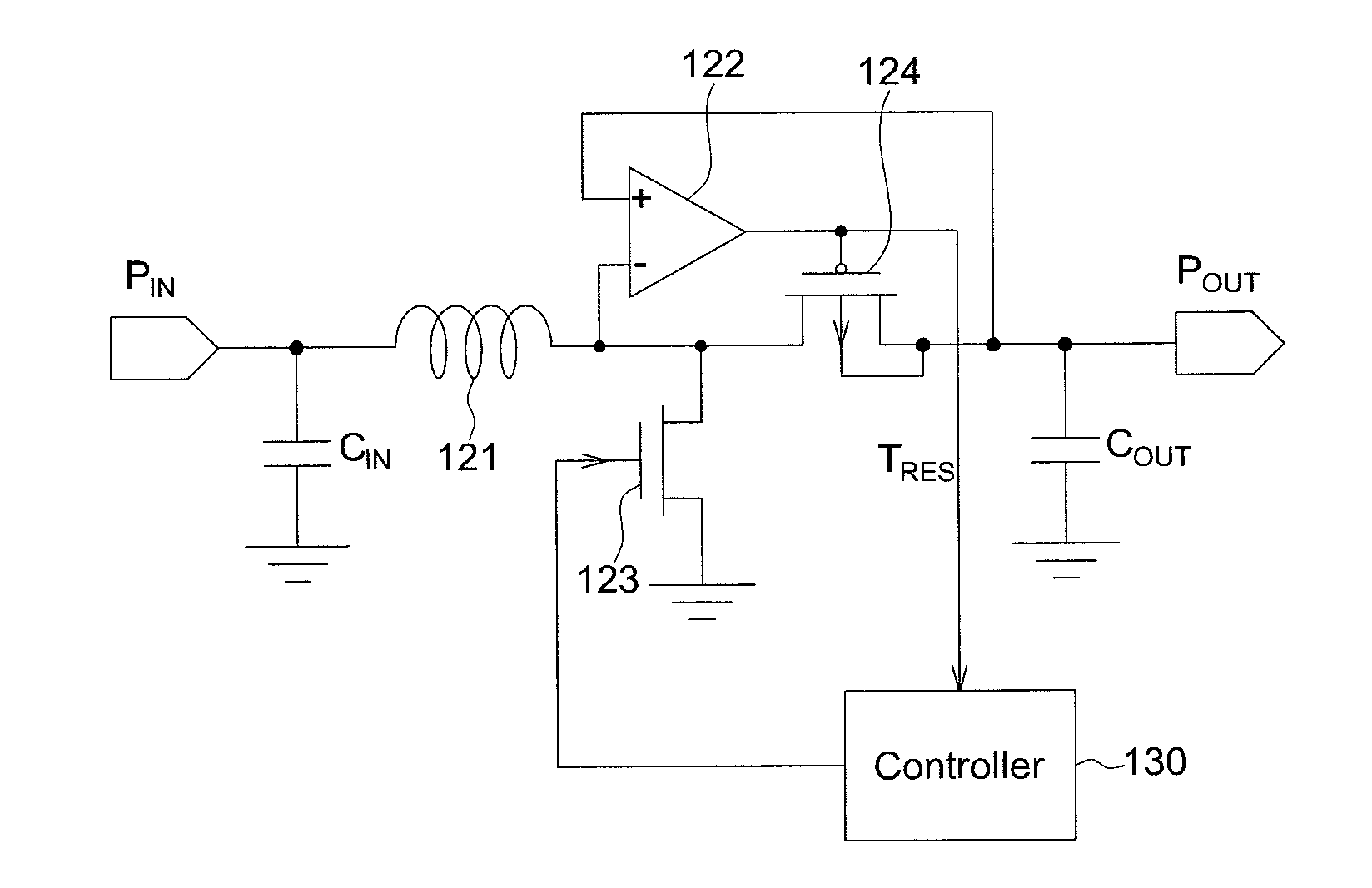

A maximum power point tracking method is provided. The method includes the following steps. Perform a power conversion operation by a converter according to a duty cycle signal so as to convert an input power supplied by an energy harvester into an output power, wherein the converter includes an inductor, and a current flowing through the inductor increases in an energy-storing duration and decreases in an energy-releasing duration. Obtain a length of the energy-releasing duration. Adjust the duty cycle signal according to the length of the energy-releasing duration so as to track a maximum power point of the input power or the output power.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- H02J Class
- 22.71 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 5, 2029 |
