Motion correction in a projection domain in time of flight positron emission tomography
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2018
Issued Date -
N/A
app pub date -
Sep 19, 2016
filing date -
Sep 28, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

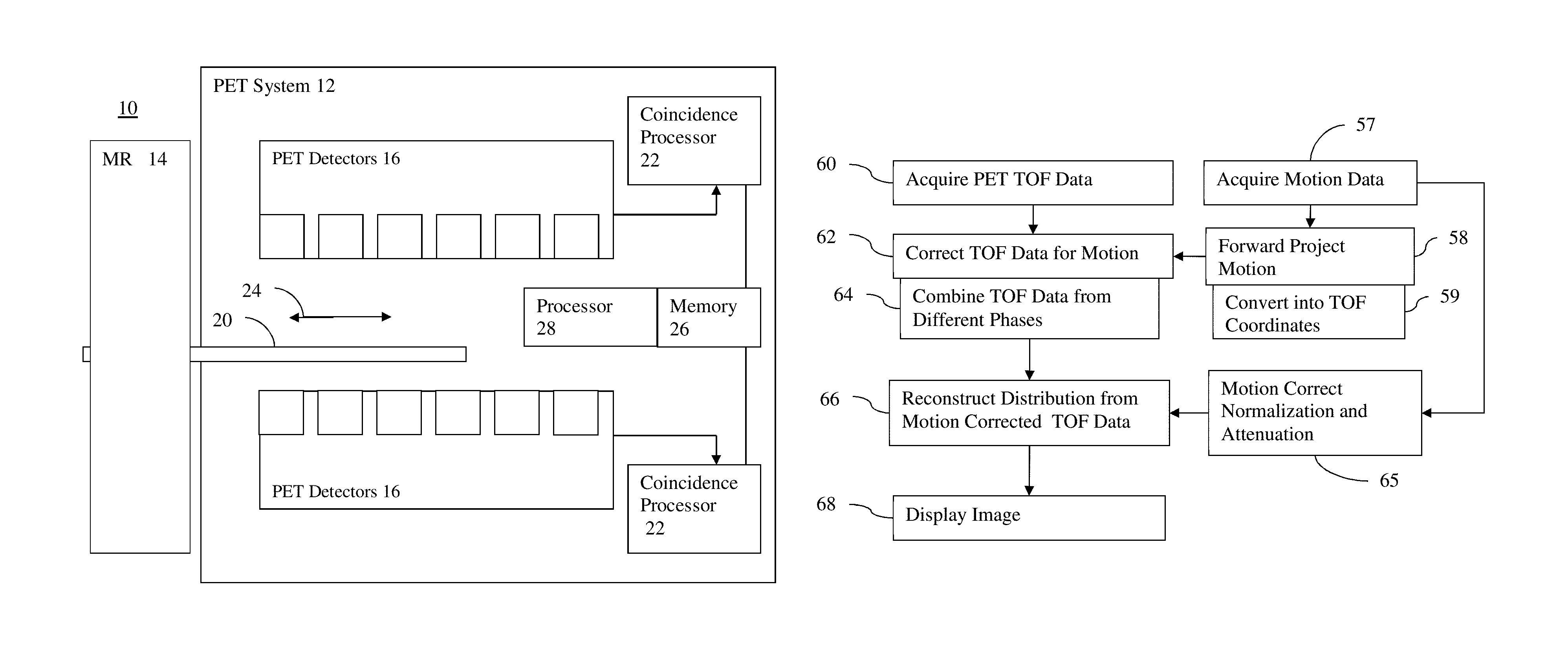

Motion correction is performed in time-of-flight (TOF) positron emission tomography (PET). Rather than applying motion correction to reconstructed images or as part of reconstruction, the motion correction is applied in the projection domain of the PET data. The TOF data from the PET scan is altered to account for the motion. The TOF data is altered prior to starting reconstruction. The motion in the patient or image domain is forward projected to provide motion in the projection domain of the TOF data. The projected motion of different phases is applied to the TOF data from different phases, respectively, to create a combined dataset of motion corrected TOF data representing the patient at a reference phase. The dataset is larger (e.g., similar size from projection data dimension point of view, but contains more counts per projection data unit or is more dense) than available at one phase of the physiological cycle and is then used in reconstruction.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- G06T Class
- 22.86 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 5, 2029 |
