Split range control using proportional-integral control with flow valves
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2018
Issued Date -
N/A
app pub date -
May 11, 2016
filing date -
May 11, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

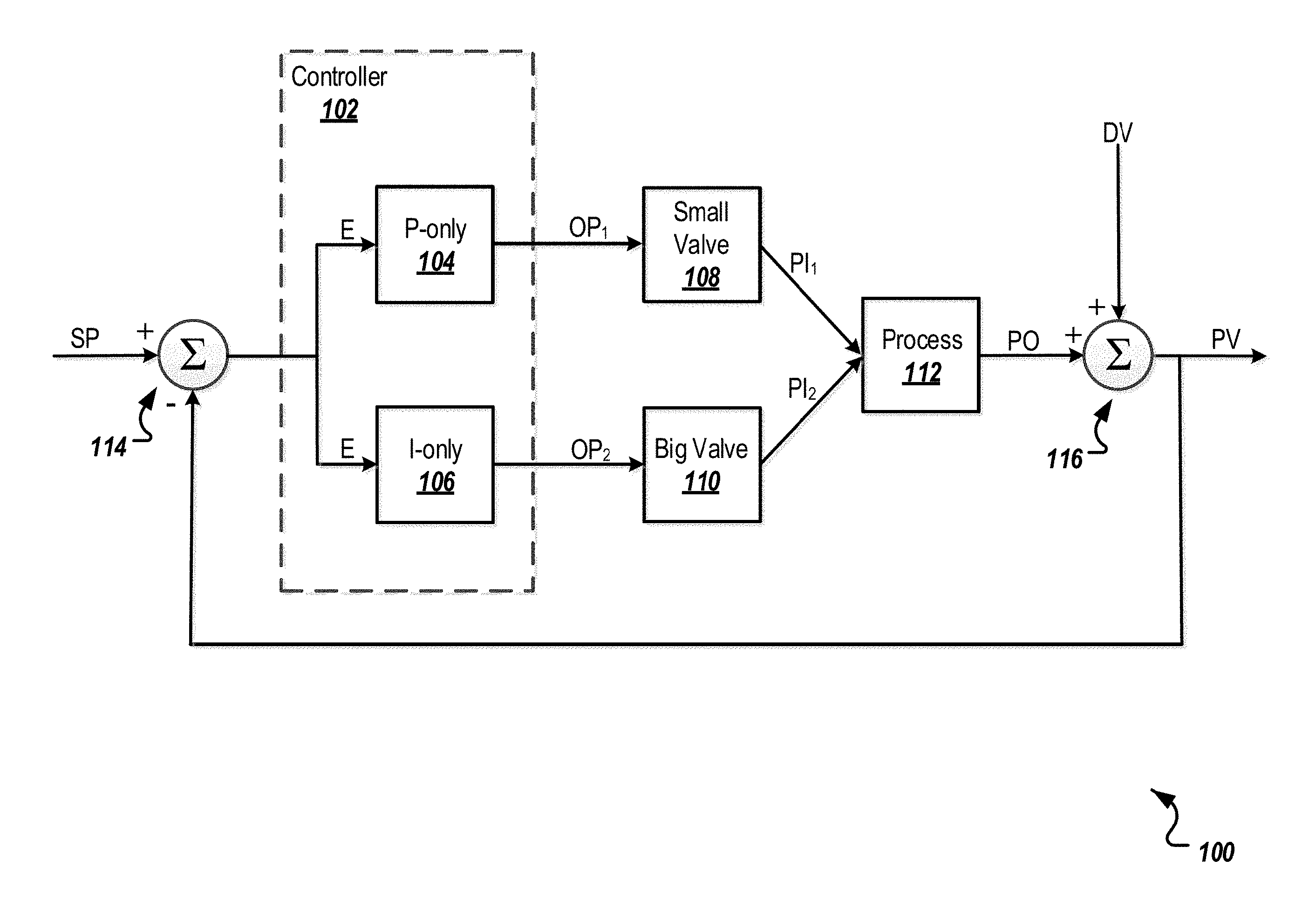

Example computer-implemented methods, apparatuses, and systems are described for implementing split range control using Proportional-Integral (PI) control on a process. In some aspects, a feedback signal from the process is received. A proportional control is performed on the feedback signal to generate a first control output while an integral control is performed on the feedback signal to generate a second control output. A first valve of the process is controlled based on the first control output while a second valve of the process is controlled based on the second control output. The second valve has a valve diameter larger than a valve diameter of the first valve.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G05B Class
- 4372 Applications Filed
- 2901 Patents Issued To-Date
- 66.36 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G05B Class
- 24.54 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 5, 2029 |
