Spectacle lens for a display device that can be fitted on the head of a user and generates an image
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2018
Issued Date -
Jun 29, 2017
app pub date -
Apr 16, 2015
filing date -
Apr 17, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

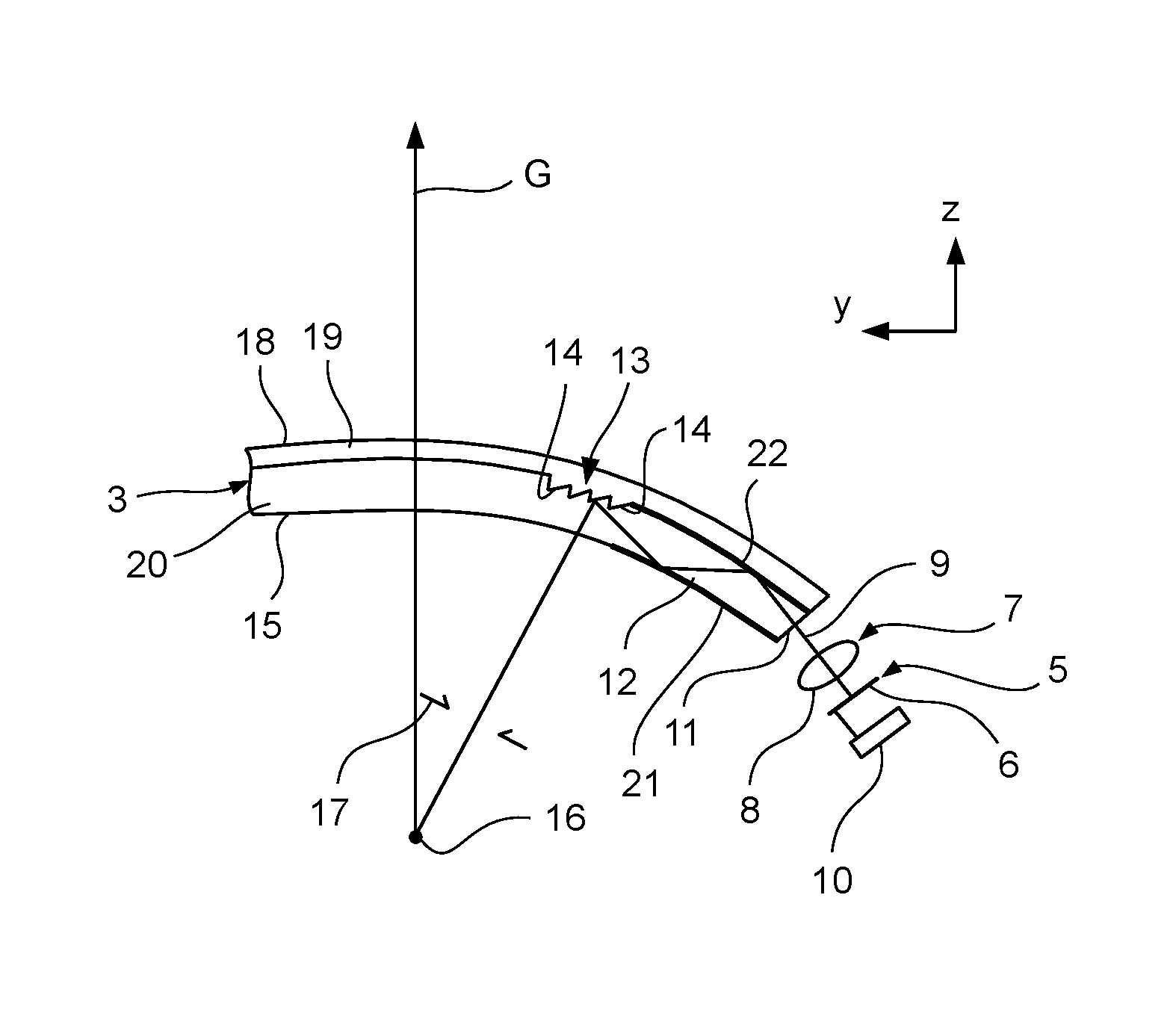

A spectacle lens for a display device can be fitted on the head of a user and generate an image. The spectacle lens includes a front side and a rear side, a coupling-in section and a coupling-out section spaced apart from the coupling-in section, as well as a light guiding channel which is suitable for guiding light bundles of pixels of the generated image, which are coupled into the spectacle lens via the coupling-in section of the spectacle lens, in the spectacle lens to the coupling-out section, by which they are coupled out of the spectacle lens. The light guiding channel includes a first reflecting layer, which extends from the coupling-in section to the coupling-out section and on which the light bundles are reflected for guiding to the coupling-out section. The first reflecting layer includes at least one transparent gap.
First Claim
Other Claims data not available
Family
International Classification(s)
- F21V:FUNCTIONAL FEATURES OR DETAILS OF LIGHTING DEVICES....
- G09G:ARRANGEMENTS OR CIRCUITS FOR CONTROL OF INDICATING....
- G02B:OPTICAL ELEMENTS, SYSTEMS, OR APPARATUS
- G03B:APPARATUS OR ARRANGEMENTS FOR TAKING PHOTOGRAPHS O....
- G02C:SPECTACLES; SUNGLASSES OR GOGGLES INSOFAR AS THEY ....
- G02F:DEVICES OR ARRANGEMENTS, THE OPTICAL OPERATION OF ....
- G03H:HOLOGRAPHIC PROCESSES OR APPARATUS
- 2015 Application Filing Year
- F21V Class
- 3770 Applications Filed
- 2807 Patents Issued To-Date
- 74.46 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F21V Class
- 23.81 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 5, 2029 |
