Debris protection system for reflective optic utilizing gas flow
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2018
Issued Date -
Oct 16, 2014
app pub date -
Apr 7, 2014
filing date -
Apr 10, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

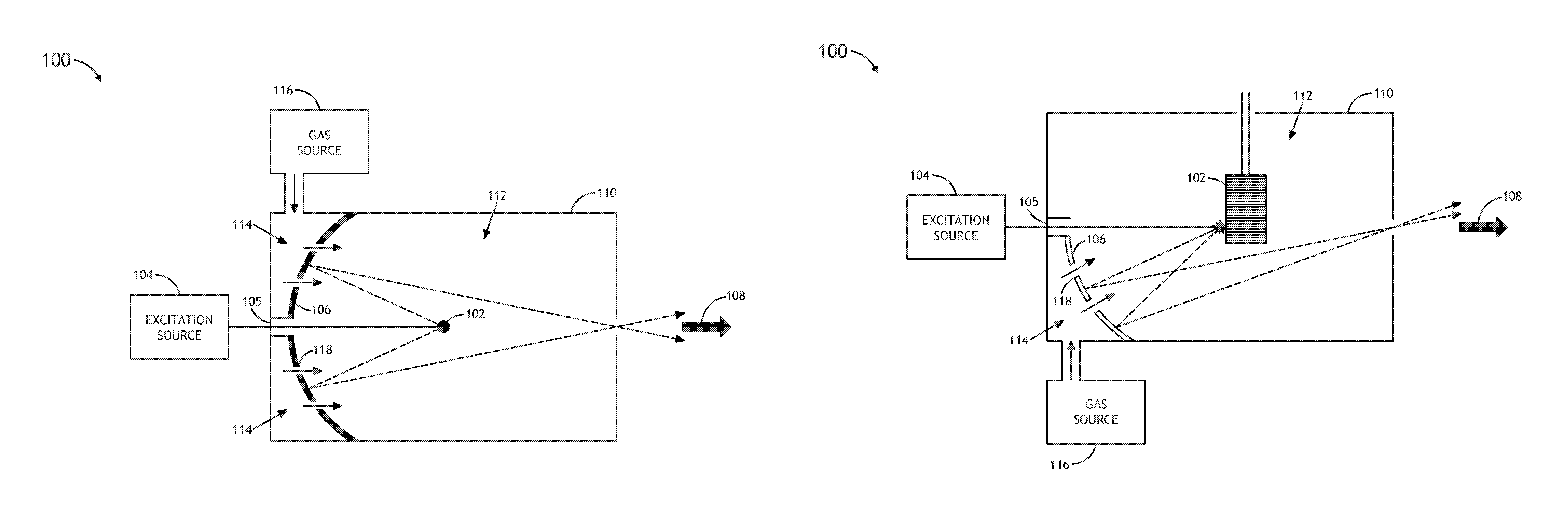

The present disclosure is directed to a system for protecting a reflective optic and/or any other surface in a plasma-based illumination system from debris by actively flowing gas against the debris flow direction. According to various embodiments, a vacuum chamber is configured to contain a target material, wherein a laser or discharge produced plasma is generated in response to an excitation of the target material. One or more outlets within the chamber are configured to receive gas flowing from a fluidically coupled gas source and further configured to actively flow the gas towards a source of debris and away from the reflective optic or any other protected surface at a controlled flow rate.
