Low-weight small-form-factor stun grenade
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2018
Issued Date -
Apr 13, 2017
app pub date -
Sep 6, 2016
filing date -
Oct 9, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

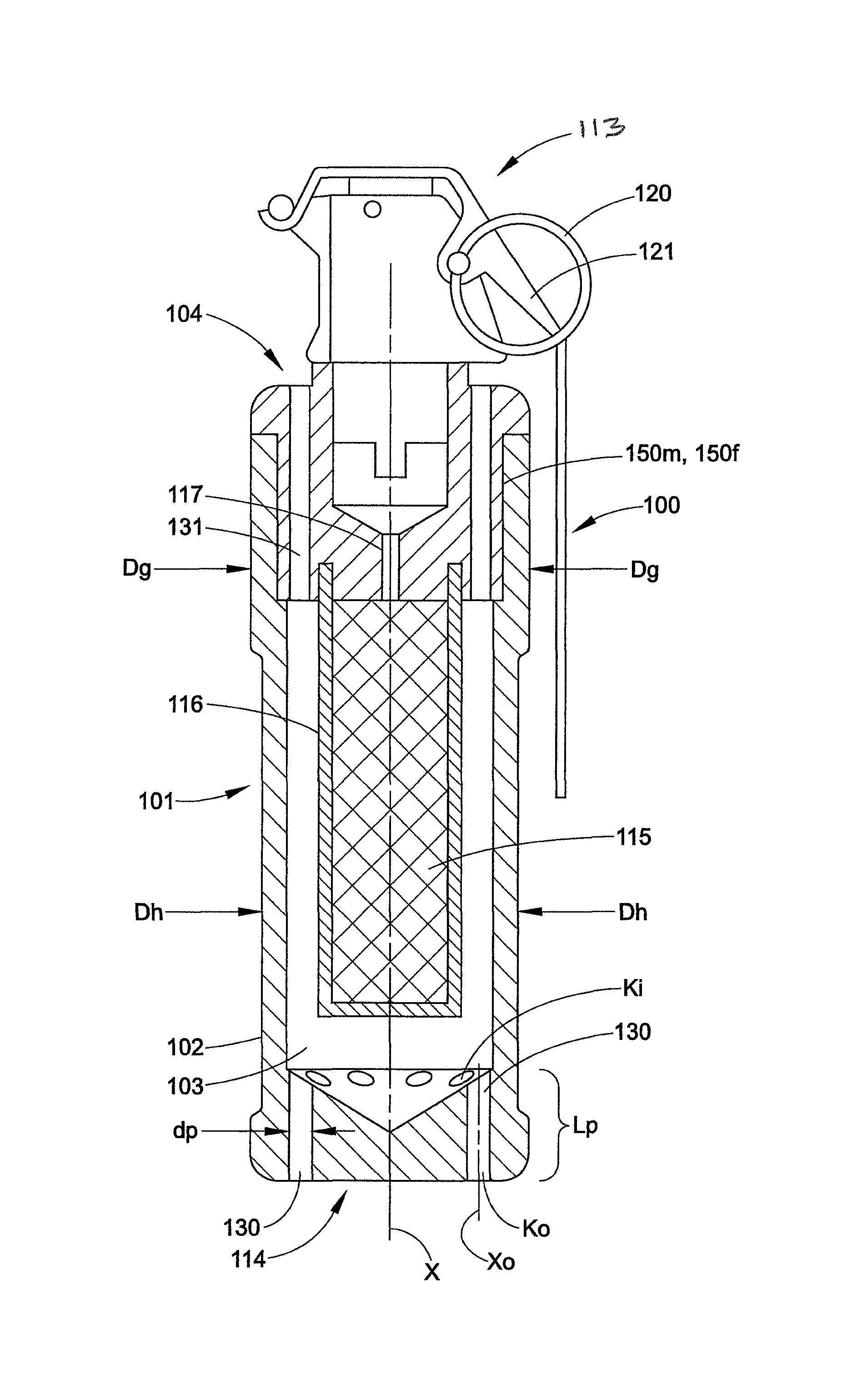

A stun grenade includes a cartridge having an explosive charge in communication with a fuse and a housing including a closed end, an open end, a longitudinal axis and including an internal cavity which accommodates the cartridge. An end cap is attachable to the open end of the housing, the end cap including an end wall and a side wall. A plurality of spaced first vents are defined in the end wall of the end cap. A plurality of spaced second vents is defined in an end wall of the housing. The output from an explosive charge is optimized by vents having a straight flow path. The vents have a first end in fluid communication with the cavity and a second end in fluid communication with an exterior periphery of the housing.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F42B Class
- 451 Applications Filed
- 354 Patents Issued To-Date
- 78.50 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F42B Class
- 29.72 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 5, 2029 |
