Wheel bearing apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2018
Issued Date -
N/A
app pub date -
Sep 10, 2016
filing date -
Mar 12, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

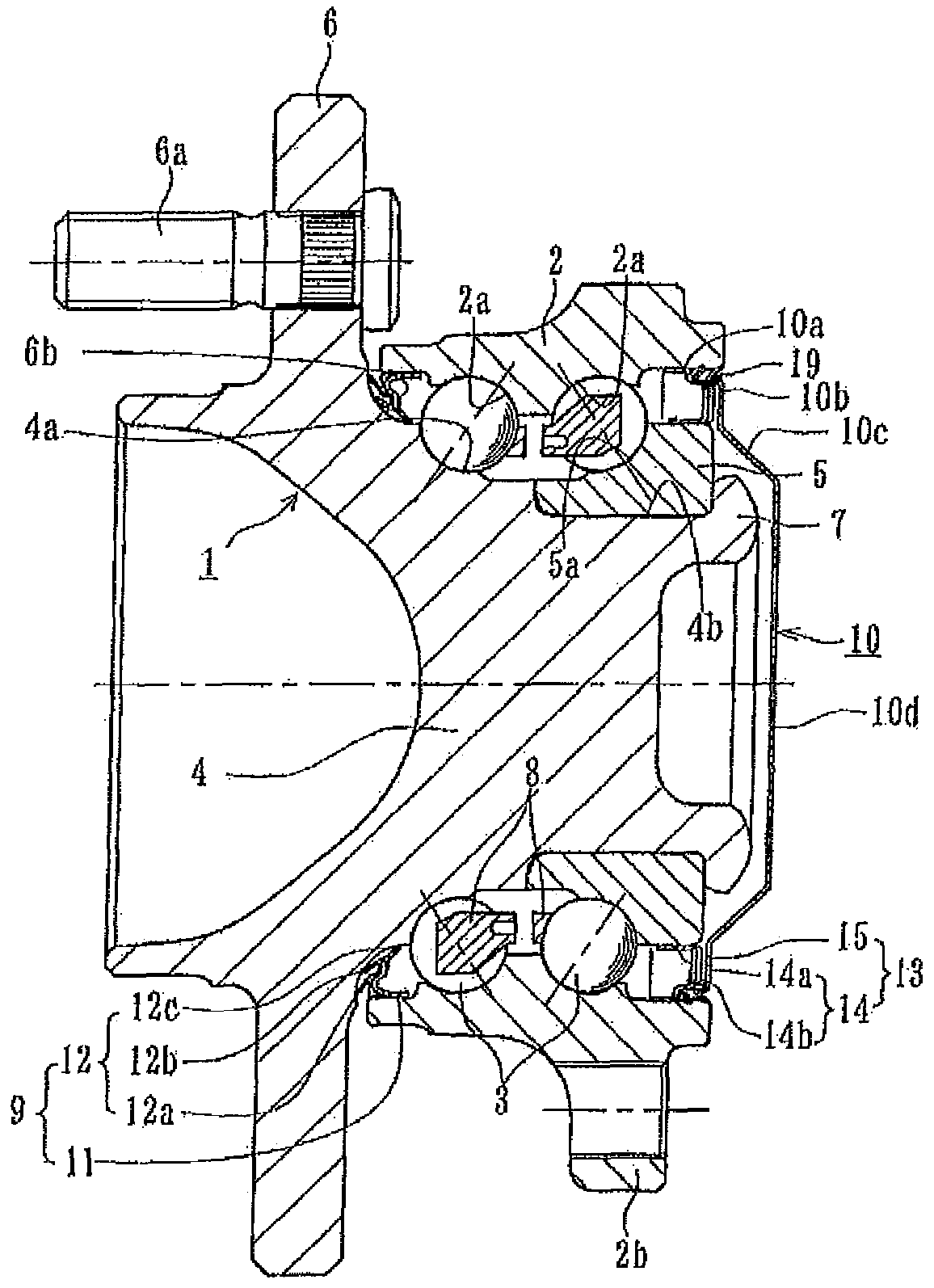

A wheel bearing apparatus has an outer member, an inner member, and double row rolling elements contained between the outer raceway surfaces and inner raceway surfaces of the outer member and the inner member. A cup-shaped steel protective cover is mounted on the inner-side end of the outer member. The cover fitting portion has a cylindrical portion, a radially reduced portion and an elastic member. The elastic member has an annular projection and a contact lip. When the protective cover is fit into the outer member, the annular projection closely contacts with the fitting surface while elastically deforming and the contact lip elastically contacts the inner-side end of the outer member.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16C Class
- 45.21 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 5, 2029 |
