Engine automatic stop/restart device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2018
Issued Date -
Apr 28, 2016
app pub date -
Sep 10, 2013
filing date -
Sep 10, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

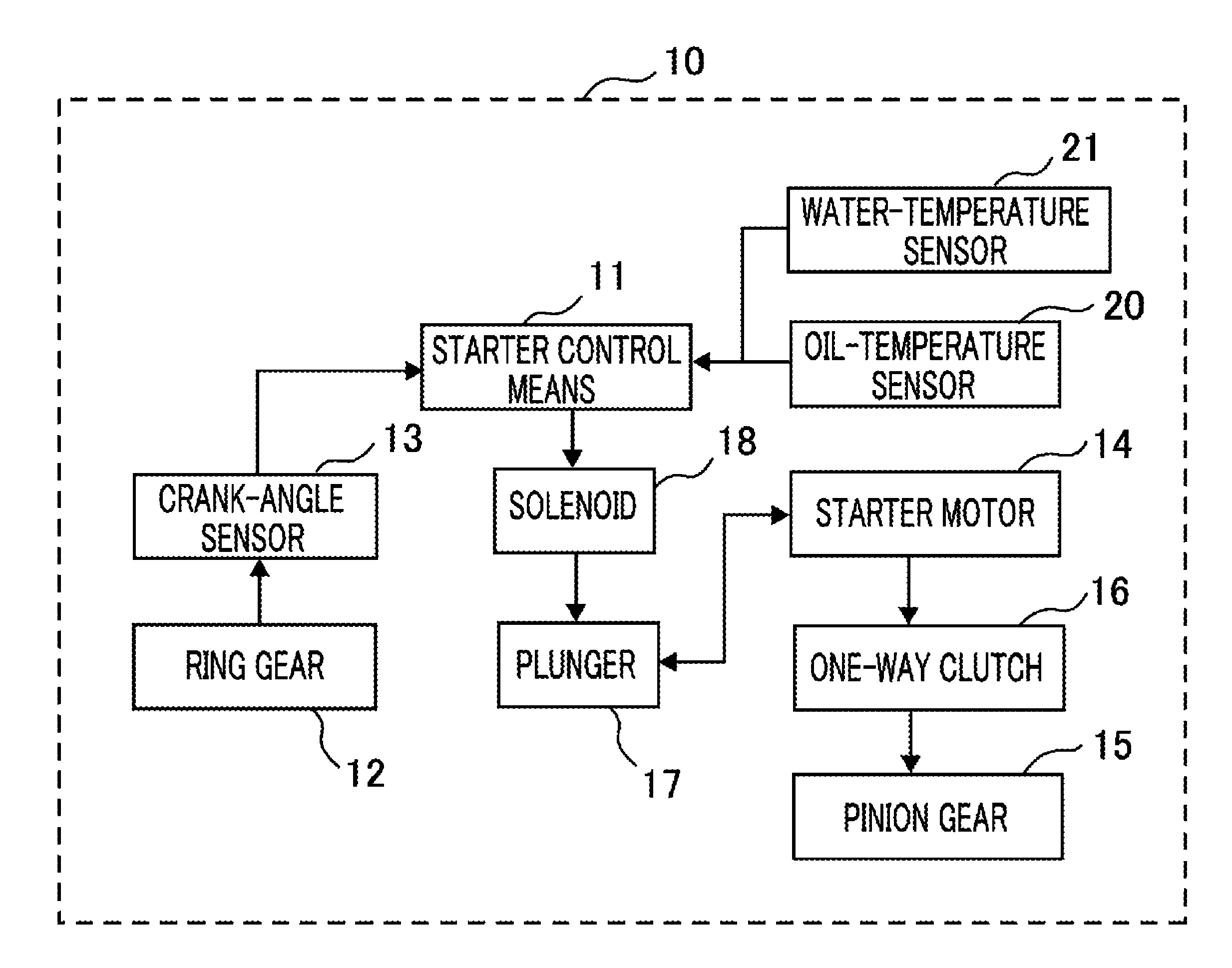

An engine automatic stop/restart device includes a ring gear which is linked to a crank shaft of the engine, a starter motor which is energized so as to be rotated, a pinion gear which transmits a rotation of the starter motor to the ring gear, and a pinion gear movement unit which is energized so as to move the pinion gear in a direction of the ring gear, whereby the pinion gear is engaged to the ring gear, in a state where the engine automatic stop/restart device automatically stops the engine when an engine automatic stop condition is established, and restarts the engine when an engine restart condition is established, and includes an inertially-rotating-restart-decision unit which permits or prohibits a restart of the engine, which is inertially rotating after the engine is automatically stopped, in accordance with a detection result of an oil temperature of the engine.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- F02N Class
- 267 Applications Filed
- 245 Patents Issued To-Date
- 91.77 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F02N Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 5, 2029 |
