Vapor jetting device and spacecraft
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2018
Issued Date -
N/A
app pub date -
Feb 9, 2015
filing date -
Aug 10, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

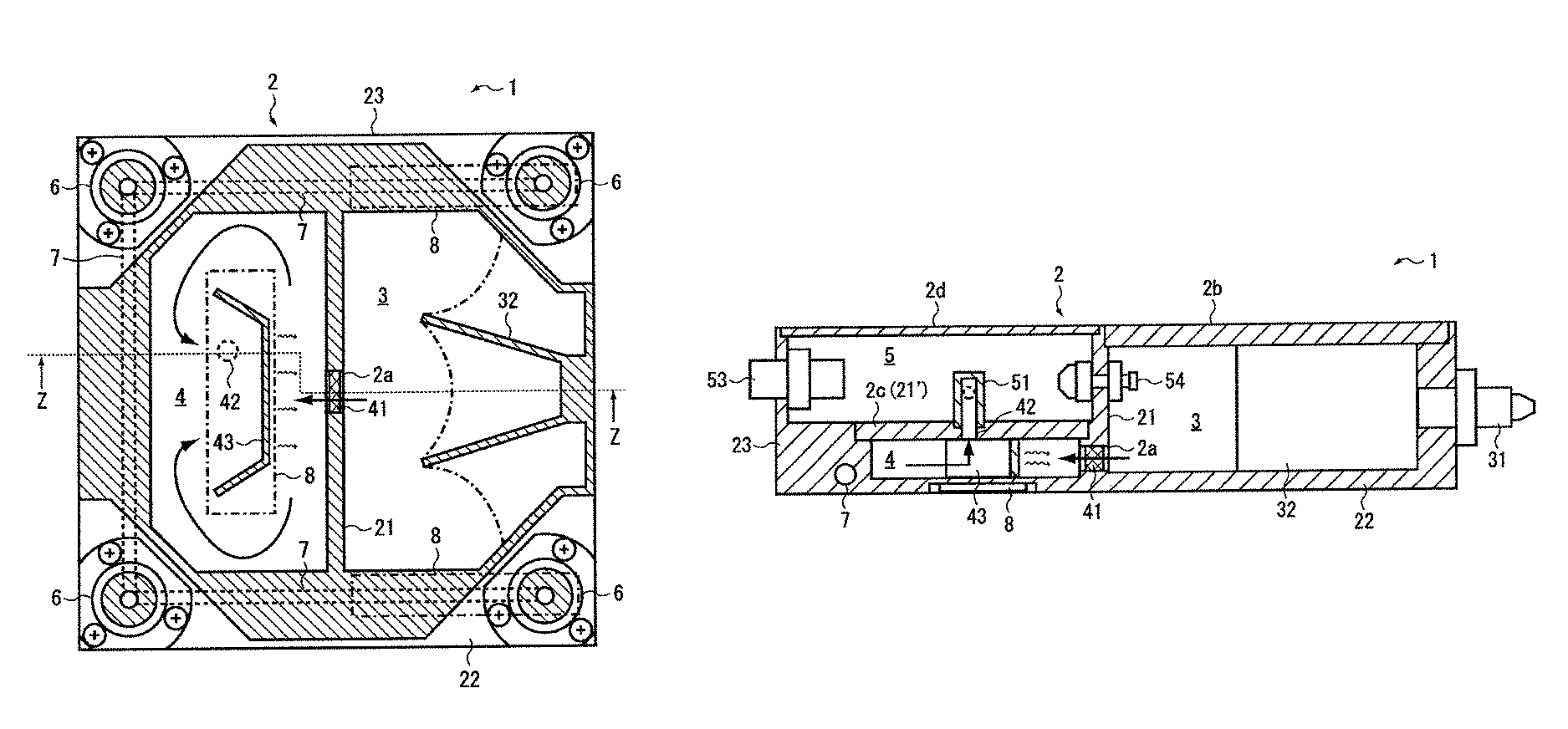

Provided is a vapor jetting device including: a box-shaped casing; a propellant holding unit that is placed in the casing and forms a space for holding a propellant; a gas storing unit that is placed in the casing, forms a space that is divided from the propellant holding unit by a partition wall including a communication hole, and stores gas; a machine housing unit that is placed in the casing, forms a space that is divided from the propellant holding unit and the gas storing unit by partition walls, and houses machines; a nozzle that is connected to the casing and ejects the gas to an outside; a gas flow path that is formed in the casing and supplies the gas stored in the gas storing unit to the nozzle; and a heater that is placed in the casing and heats at least the gas storing unit.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2015 Application Filing Year
- F02K Class
- 482 Applications Filed
- 379 Patents Issued To-Date
- 78.64 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F02K Class
- 22.31 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 5, 2029 |
