Engine synchronization apparatus and control method thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2018
Issued Date -
Jun 22, 2017
app pub date -
Oct 7, 2016
filing date -
Dec 16, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

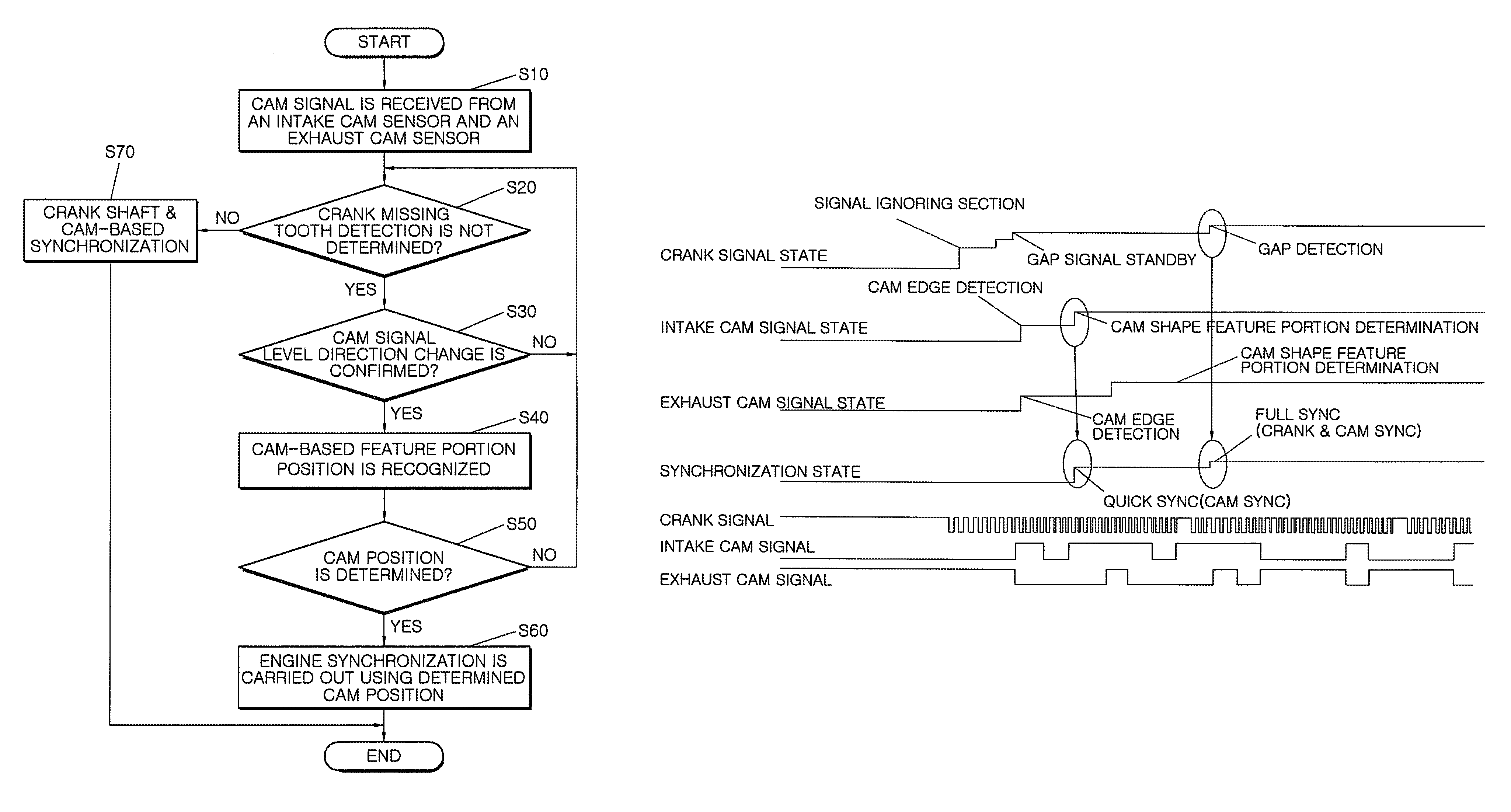

An engine synchronization apparatus includes: a crank shaft position sensor detecting a position of a crank shaft to detect a tooth and a missing tooth; a cam sensor detecting a position of a cam corresponding to an angle of rotation of each of an intake cam and an exhaust cam; and a controller synchronizing the engine to use a tooth detection signal from the crank shaft position sensor and a cam signal from the cam sensor. The controller carries out an engine synchronization by determining the position of the crank shaft and the position of the cam to select one cam between the intake cam and the exhaust cam and to detect the position of a unique part of the cam signal from a voltage level and a level length of the cam signal of the selected cam.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F02P Class
- 319 Applications Filed
- 241 Patents Issued To-Date
- 75.55 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F02P Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 5, 2029 |
