Turbocharger
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2018
Issued Date -
Nov 26, 2015
app pub date -
May 8, 2015
filing date -
May 24, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

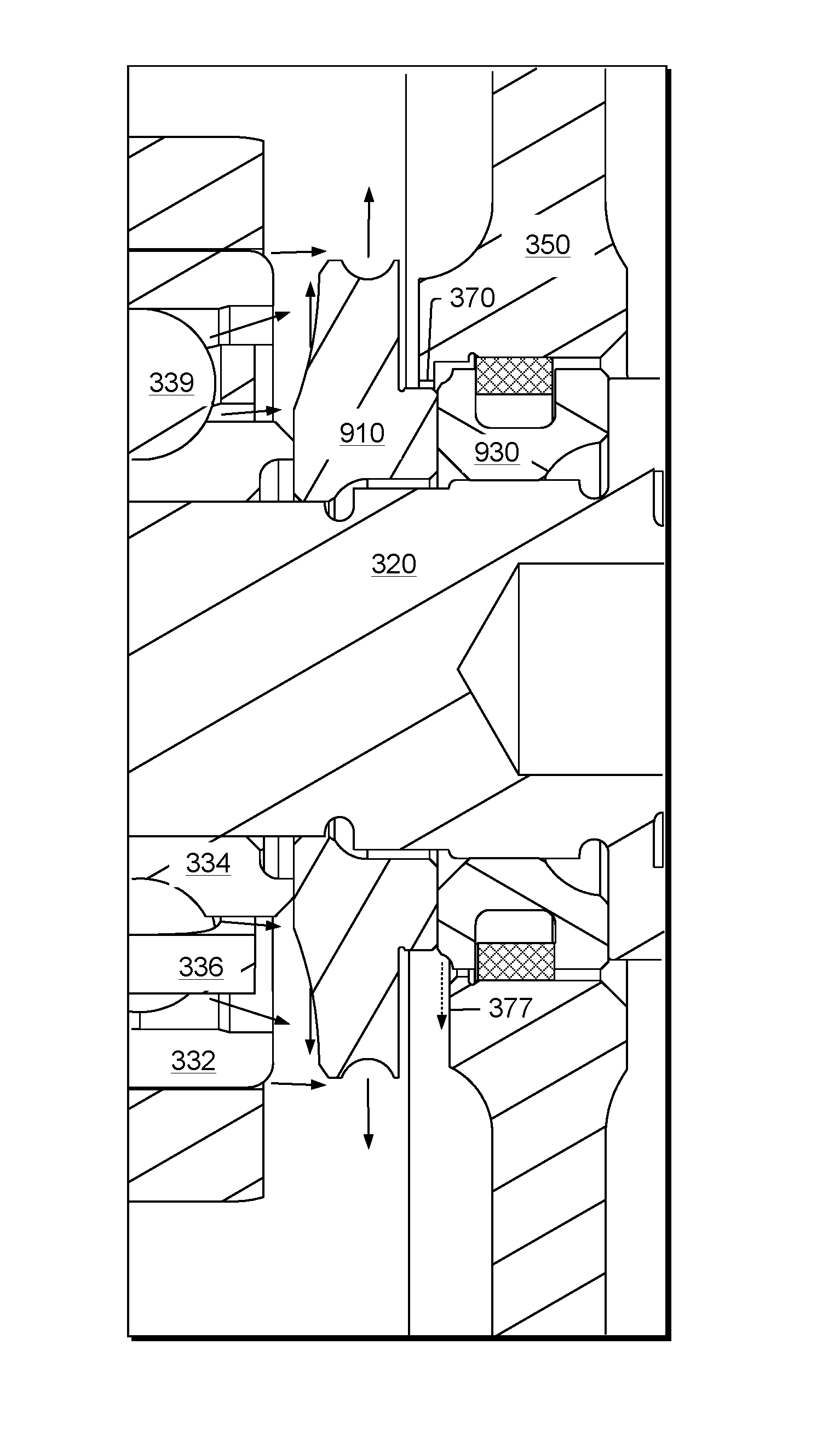

A turbocharger assembly can include a shaft having a rotational axis where the shaft includes a turbine wheel that includes a hub portion; a bearing that includes an outer race, an inner race operatively coupled to the shaft, and rolling elements disposed between the inner race and the outer race where an inner radius of the outer race and an outer radius of the inner race define a radial gap; and a lubricant slinger disposed axially between the inner race and the hub portion of the turbine wheel where the lubricant slinger includes a surface that faces and slopes away from the radial gap.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2015 Application Filing Year
- F16N Class
- 109 Applications Filed
- 95 Patents Issued To-Date
- 87.16 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F16N Class
- 56.82 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 5, 2029 |
