Panel construction member and mounting structure thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2018
Issued Date -
Jun 22, 2017
app pub date -
Mar 23, 2015
filing date -
Apr 10, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

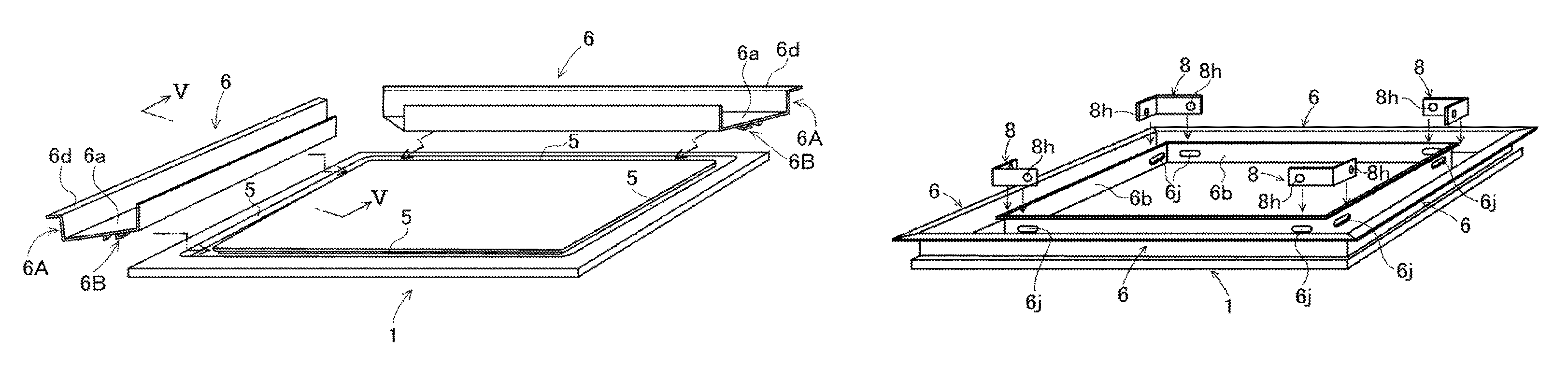

Provided are a panel construction member and a mounting structure for the same that can be rigidly mounted to a building and for which the panel, after being mounted, has excellent flexural strength and flexural rigidity. A panel construction member 1 has a layered structure in which a core plate 4 is disposed between a pair of metal plates 2, 3, wherein the panel construction member 1 is provided with a groove 5 that extends along at least one pair of edges of the panel construction member 1, and an undercut portion 5a that penetrates between the metal plates 2, 3 from the groove 5. A rail member 6 is mounted in the groove 5 of the panel construction member 1, and the panel construction member 1 is mounted to a ceiling or a wall by means of the rail member 6.
