Thread aspirating device for a dial group of a circular knitting machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2018
Issued Date -
Sep 1, 2016
app pub date -
Nov 5, 2014
filing date -
Nov 11, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

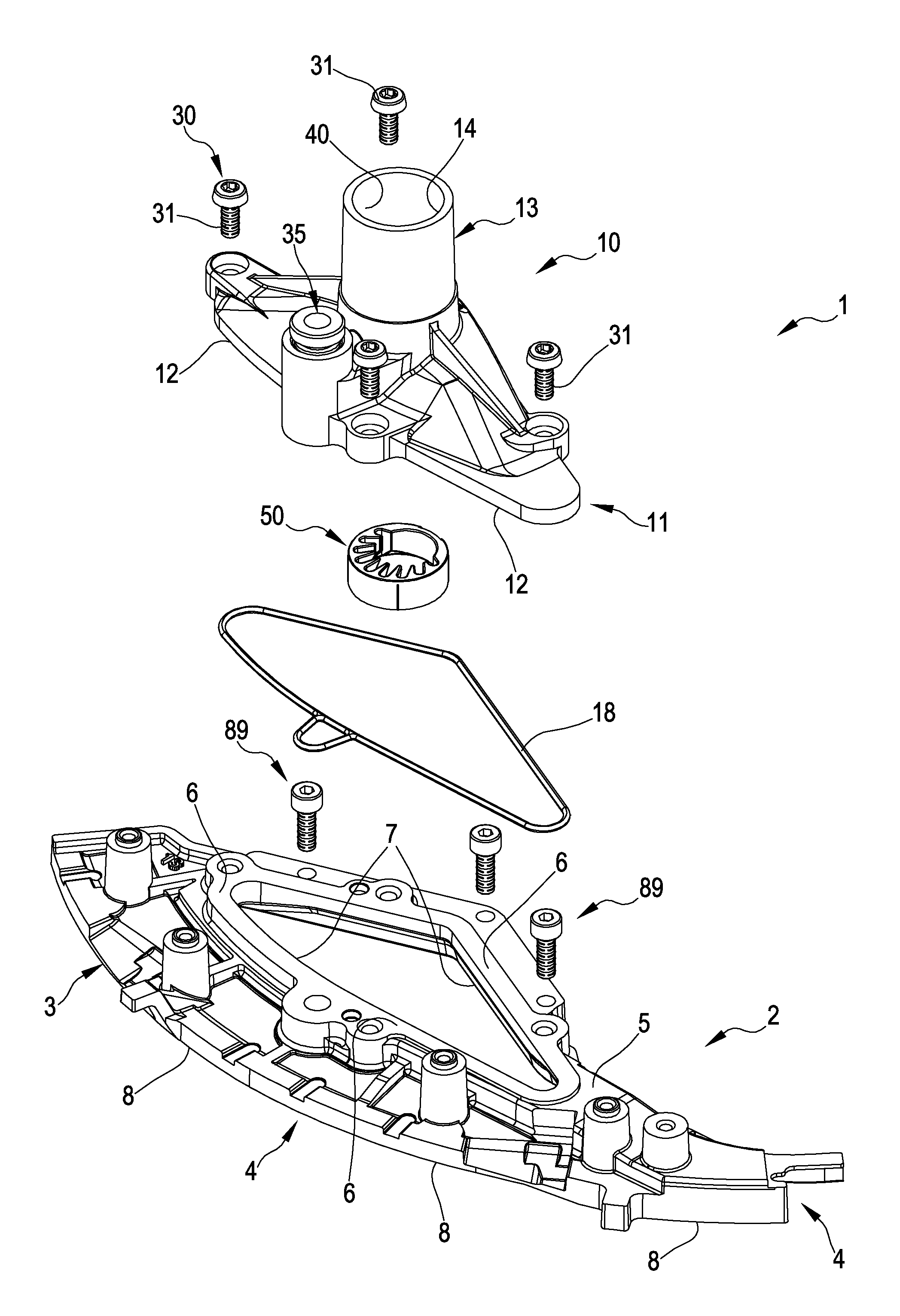

A thread aspirating device (1) for circular knitting machines, comprising a body (2) of the thread aspirating device having a lower side (3), defining an inlet opening (4) enabling inlet of one or more threads in the thread aspirating device, and an up per side (5), provided with an engaging portion (6) delimiting a passage opening (7) in the upper side. The thread aspirating device comprises a mouthpiece (10) extending between an open lower end (11), defining a mounting portion (12) complementarily shaped to the engaging portion, and an upper end (13) provided with an aspirating opening (14). The mouthpiece is superiorly mounted on the body of the device so that the mounting portion corresponds to the engaging portion; the mouthpiece and the body internally define an aspirating space (20) of the threads between the inlet opening and the aspirating opening. The mouthpiece and the body overall form, in mounting condition, a thread aspirating device in a single body.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- D04B Class
- 151 Applications Filed
- 124 Patents Issued To-Date
- 82.12 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- D04B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 5, 2029 |
