Clutch for a winch or hoist
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2018
Issued Date -
N/A
app pub date -
May 19, 2015
filing date -
May 19, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

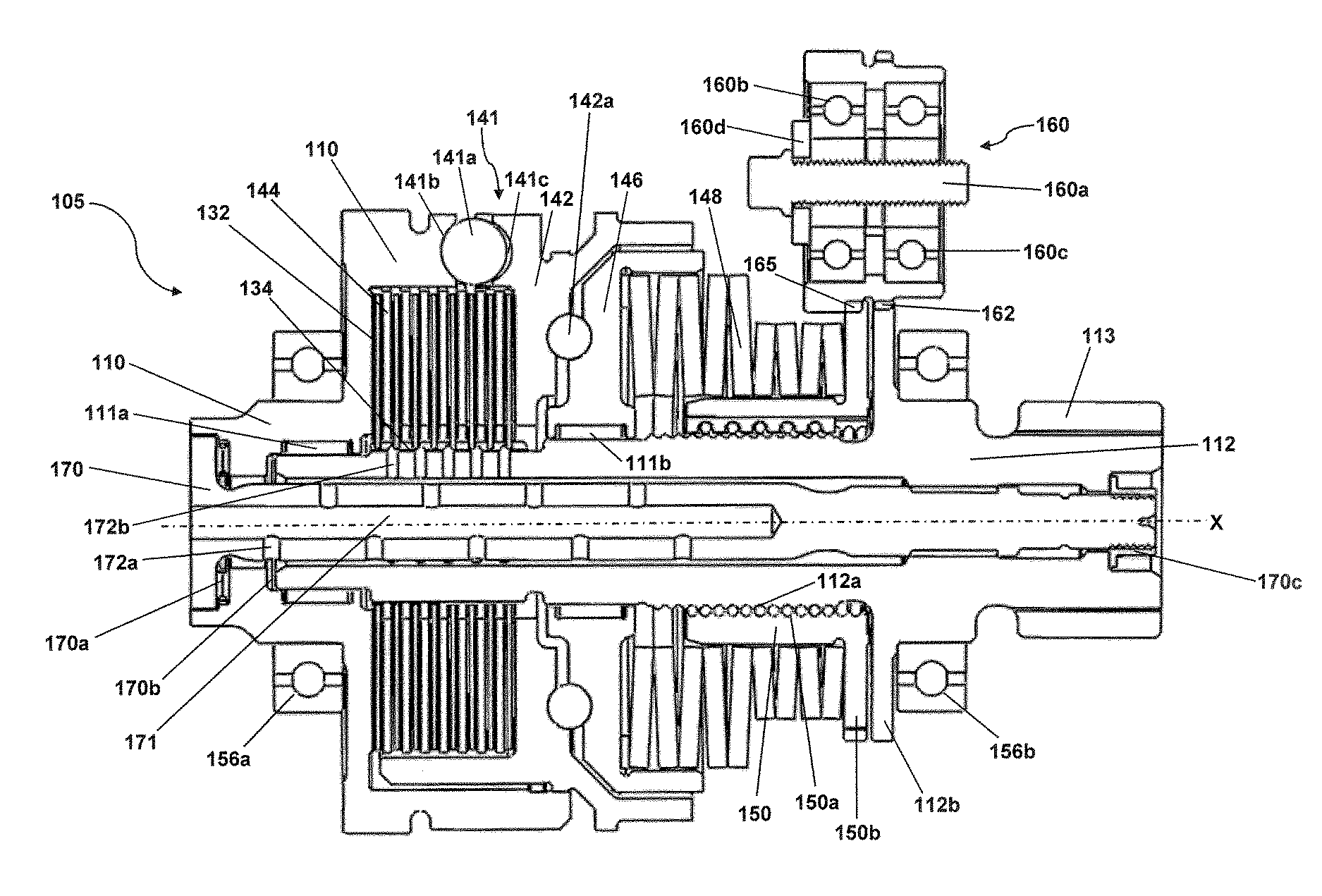

A clutch comprises an input shaft, an output shaft and a biasing member. The biasing member is arranged to provide a biasing force that allows torque transfer from the input shaft to the output shaft via one or more input friction plates and one or more output friction plates. Rotation of the output shaft may cause the biasing force to vary to adjust the maximum torque setting of the clutch during reeling-in or reeling-out of a winch cable around a winch drum. A retainer may be included in the clutch which retains the biasing member in operative connection with the output shaft and translates axially relative to the input shaft upon rotation of the output shaft. The axial translation may cause the biasing force to vary by varying the compression of the biasing member.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2015 Application Filing Year
- F16D Class
- 1523 Applications Filed
- 1279 Patents Issued To-Date
- 83.98 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- F16D Class
- 41.32 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 5, 2029 |
