Suspension and steering assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2018
Issued Date -
N/A
app pub date -
Mar 9, 2015
filing date -
Apr 15, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

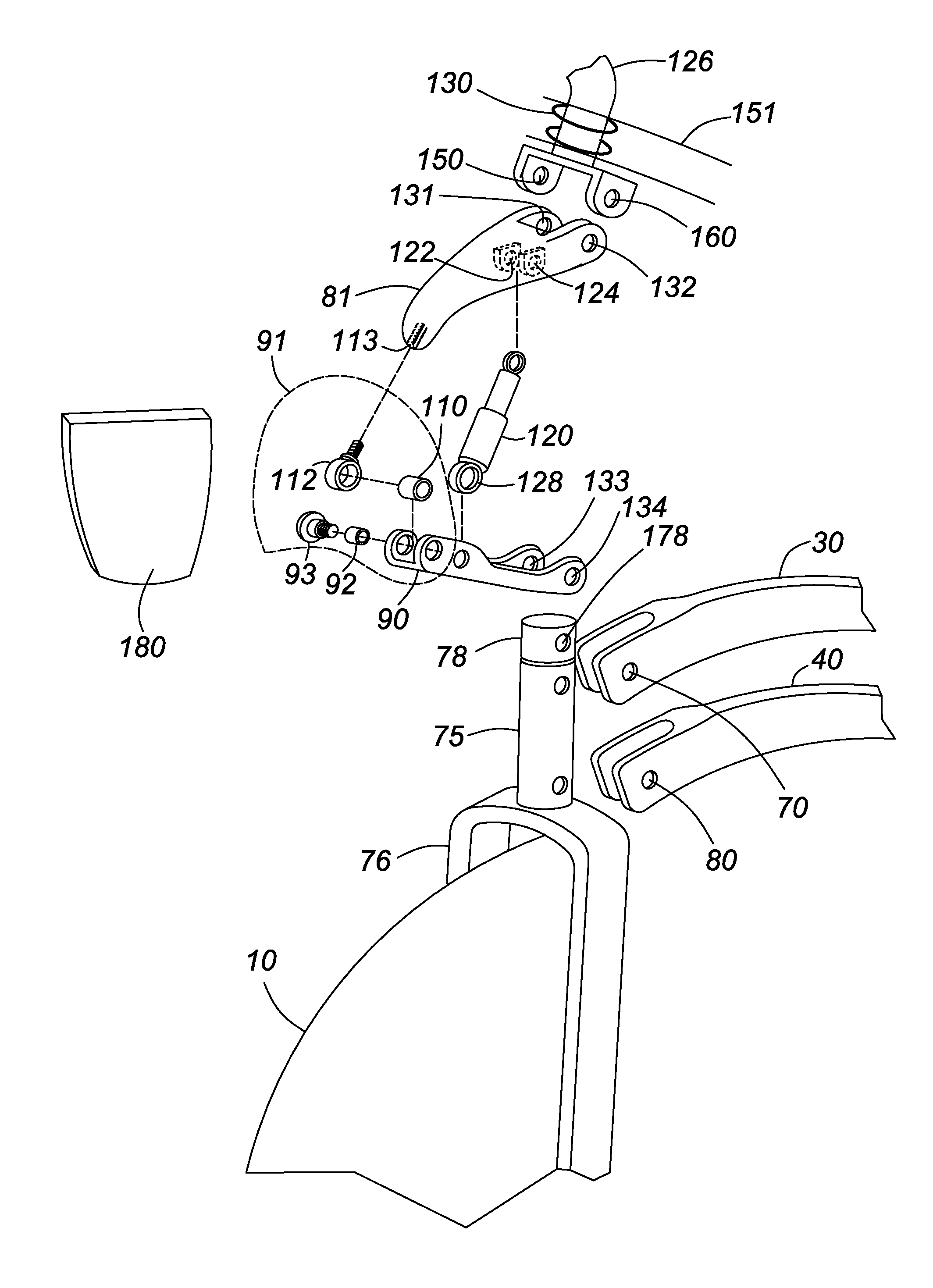

A suspension and steering assembly is provided for a vehicle. The assembly comprises a steering means mounted on a vehicle frame; a steering mechanism comprising an upper link connected to the steering means; and a steering stem having a top section connected to a lower link of the steering mechanism; a steering tube having an upper and a lower portion; an upper control arm having a first extremity connected to a middle section of the frame, and a second extremity connected to the upper portion of the steering tube; a lower control arm having a first extremity connected to a lower section of the frame, and a second extremity connected to the lower portion of the steering tube; the steering stem mounted inside the steering tube; and a wheel fork having a lower section for receiving a wheel of the vehicle and an upper section connected to the steering stem.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B62K Class
- 498 Applications Filed
- 416 Patents Issued To-Date
- 83.54 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B62K Class
- 26.49 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 5, 2029 |
