Deck fitting with removable fixture
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2018
Issued Date -
N/A
app pub date -
Aug 17, 2017
filing date -
Aug 17, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

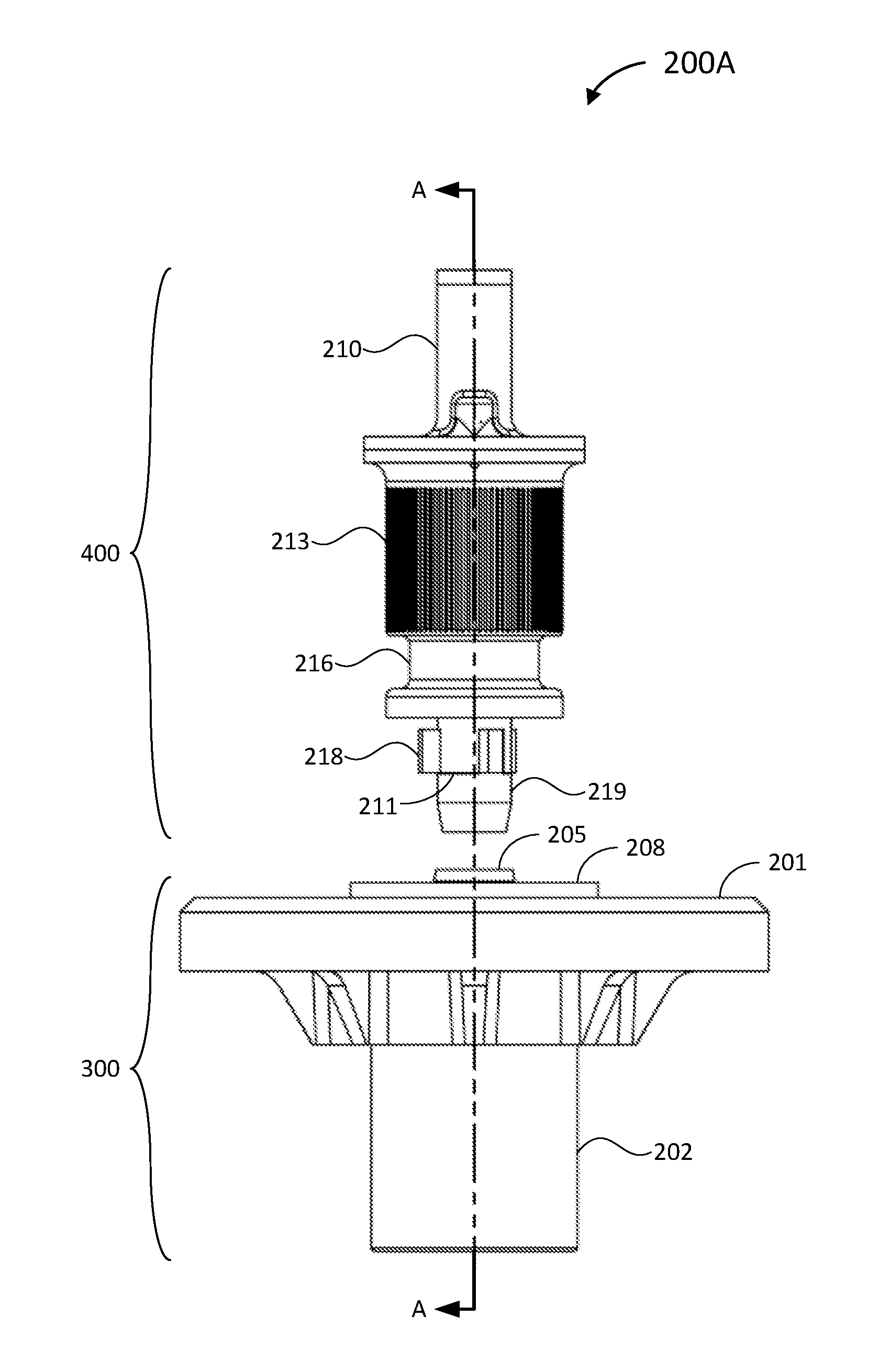

A removable locking apparatus includes a shaft body having an upper portion configured to receive tie-down equipment. A shaft socket is rotatably coupled to a lower portion of the shaft body, and a plurality of locking members are housed within the shaft socket. The locking members are configured to extend laterally from the shaft socket when the shaft body is rotated in a first direction relative to the shaft socket, and retract into the shaft socket when the shaft body is rotated in a second direction relative to the shaft socket. A clutch mechanism is coupled to the shaft socket and configured to slideably engage the shaft body. When disengaged, the clutch mechanism enables the plurality of locking members to extend or retract from the shaft socket. When engaged, the clutch mechanism prevents the plurality of locking members from extending and retracting from the shaft socket.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B60P Class
- 747 Applications Filed
- 568 Patents Issued To-Date
- 76.04 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B60P Class
- 31.32 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 5, 2029 |
