Apparatus and method for determining mounting state of electronic control unit of electronically controlled suspension system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2018
Issued Date -
N/A
app pub date -
Nov 2, 2016
filing date -
Mar 30, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

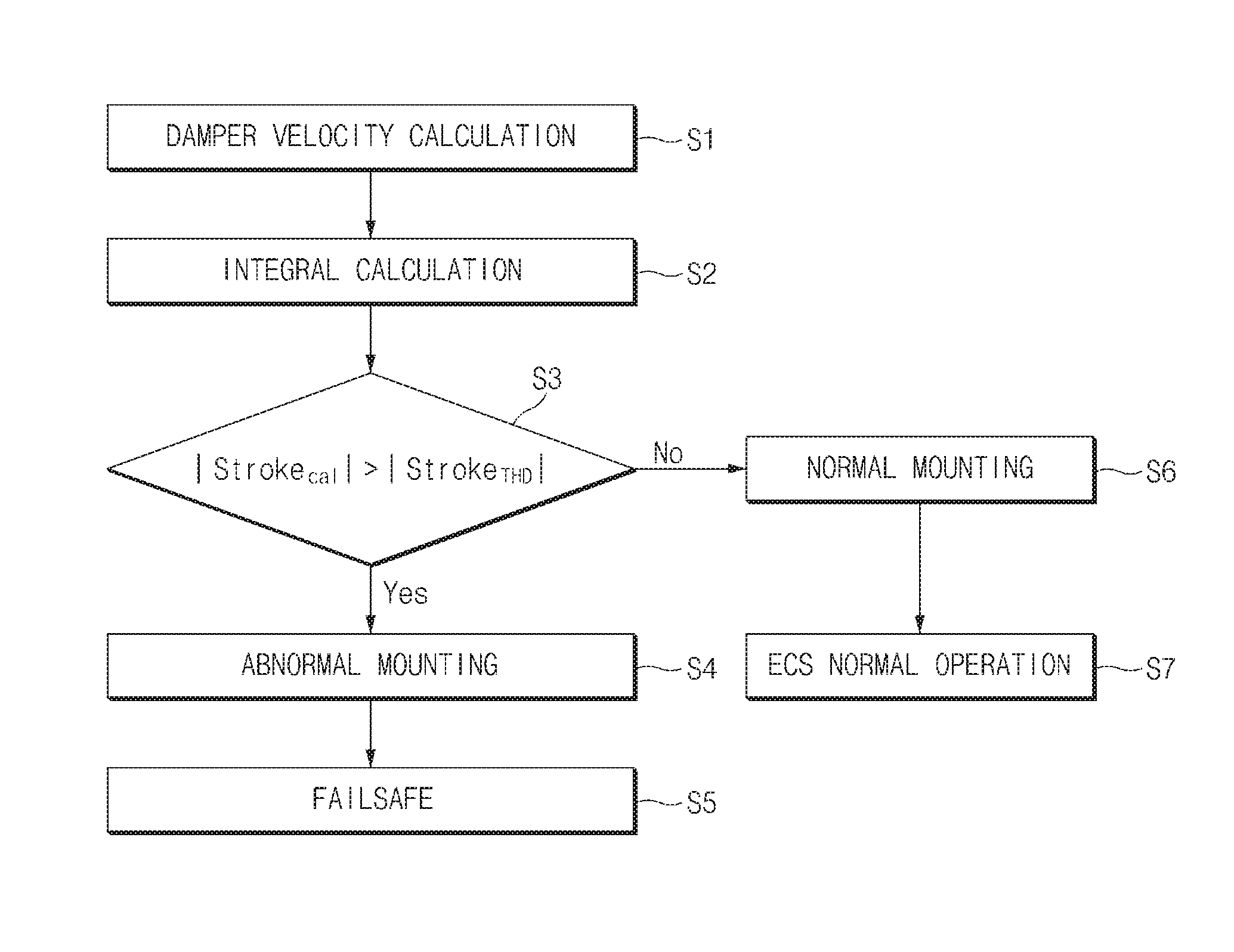

An apparatus and a method for determining a mounting state of an electronic control unit (ECU) of an electronic controlled suspension (ECS) system can determine either a normal mounting state or a mounting failure of the ECU of the ECS system. The apparatus for determining the mounting state of the ECU includes: a signal processor receiving a damper velocity of each damper; an integrator calculating an integral of the damper velocity by integrating the damper velocity of each damper received by the signal processor per unit time; a comparator comparing the integral of the damper velocity calculated by the integrator with an actual stroke of each damper; and an index output unit outputting a mounting state of the ECU in the form of an index according to comparison results of the comparator.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B60G Class
- 610 Applications Filed
- 463 Patents Issued To-Date
- 75.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B60G Class
- 27.98 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 5, 2029 |
