Vehicle trailer system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2018
Issued Date -
N/A
app pub date -
May 20, 2016
filing date -
May 23, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

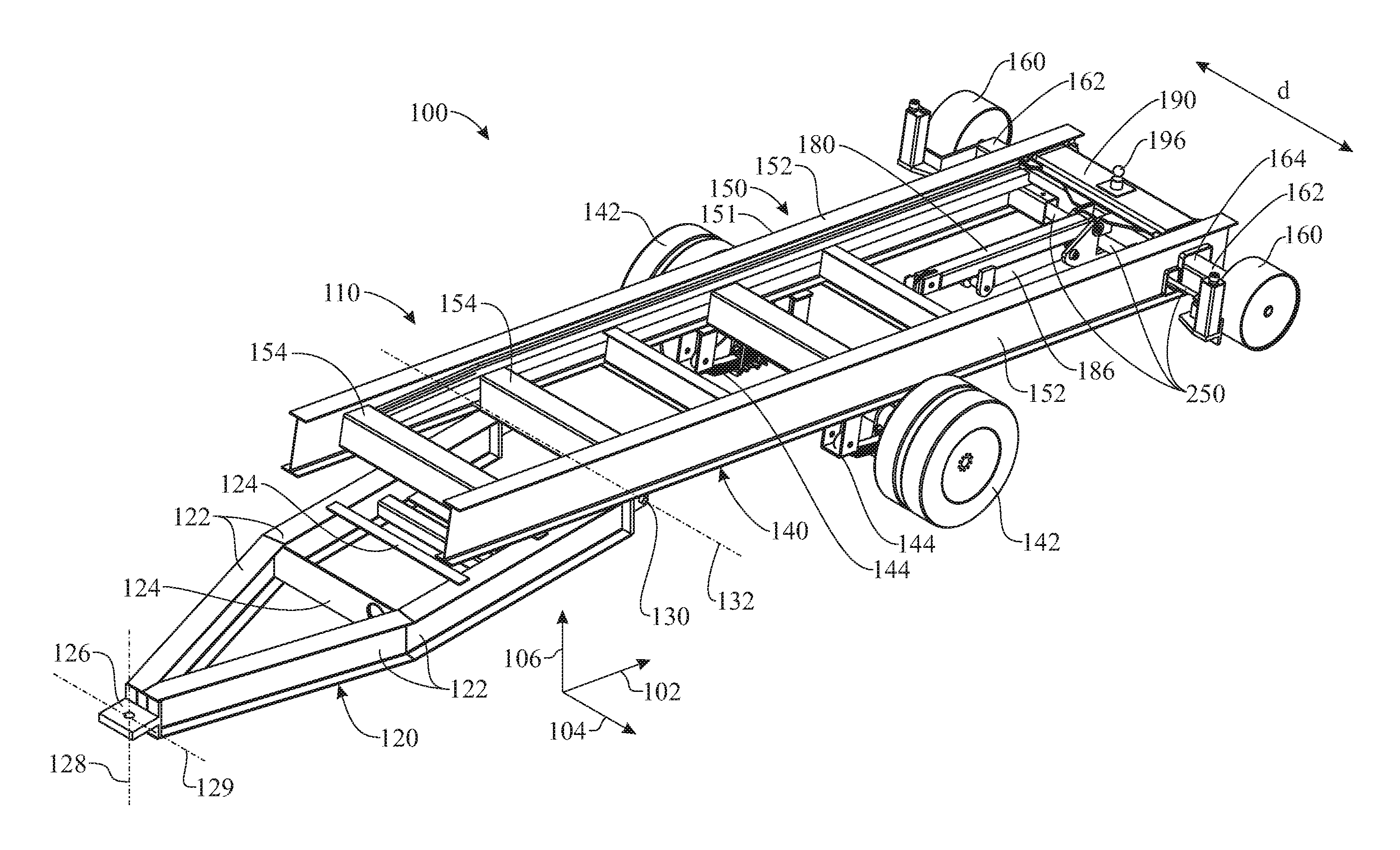

A vehicle trailer system for loading, transporting and unloading a load includes a trailer front structure for attachment to a towing vehicle; a pivotable structure pivotally coupled to the trailer front structure and including a transversely-movable structure for a load to slide or roll thereupon. An actuator allows causing transverse movement of the transversely-movable structure relative to a main body of the pivotable structure. A carriage mounted for bidirectional travel on the main body of the pivotable structure, the carriage including a carriage hitch for pivotably coupling a load. The transversely-movable structure in combination with the pivotably coupling carriage hitch allow correcting virtually any misalignments between the cargo container and the trailer, and clearing virtually any obstacle, in such a way that cargo containers will be able to be loaded and unloaded by small vehicles and in practically any location.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B60D Class
- 205 Applications Filed
- 162 Patents Issued To-Date
- 79.03 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B60D Class
- 21.05 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 5, 2029 |
