Arrangement for protecting cables and lines in C-arms, and X-ray imaging apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2018
Issued Date -
Aug 17, 2017
app pub date -
Feb 10, 2017
filing date -
Feb 12, 2016
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

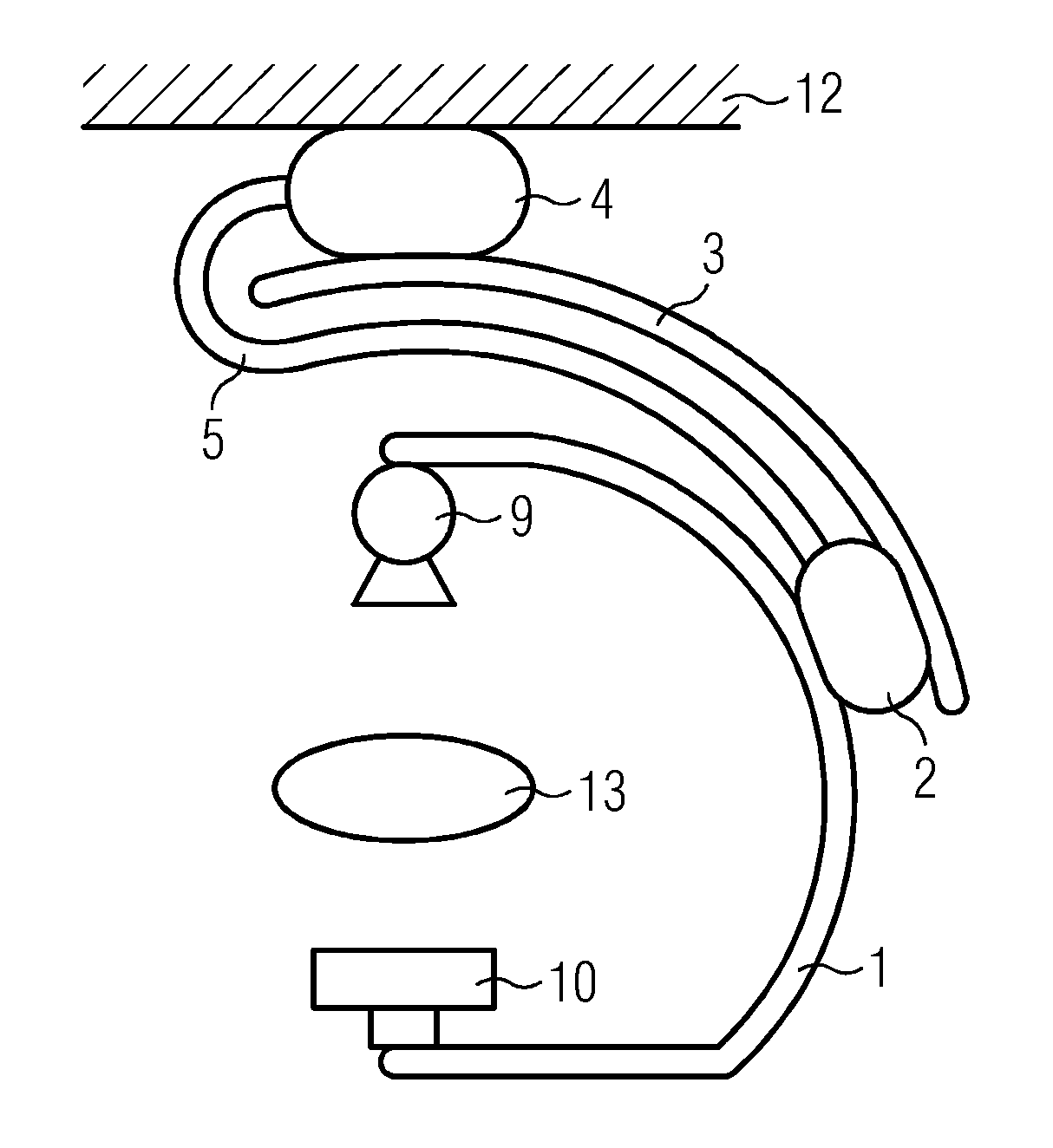

A system for protecting cables and lines is provided. The system includes a telescopic C-arm and a cable carrier. The telescopic C-arm includes an outer C-arm, an inner C-arm, an outer carriage, and an inner carriage. The outer C-arm, on an outer surface of the outer C-arm, is arranged in a displaceable manner along the outer carriage. The inner C-arm, on an outer surface of the inner C-arm, is arranged in a fixed or displaceable manner on the inner carriage. The inner carriage is arranged in a displaceable manner along an inner surface of the outer C-arm. The cable carrier connects the outer carriage and the inner carriage. The cable carrier accommodates the cables and the lines and is configured to move freely between the outer C-arm and the inner C-arm.
