Antimicrobial self-cleaning toilet
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2018
Issued Date -
Jan 11, 2018
app pub date -
Jul 31, 2017
filing date -
Jul 5, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

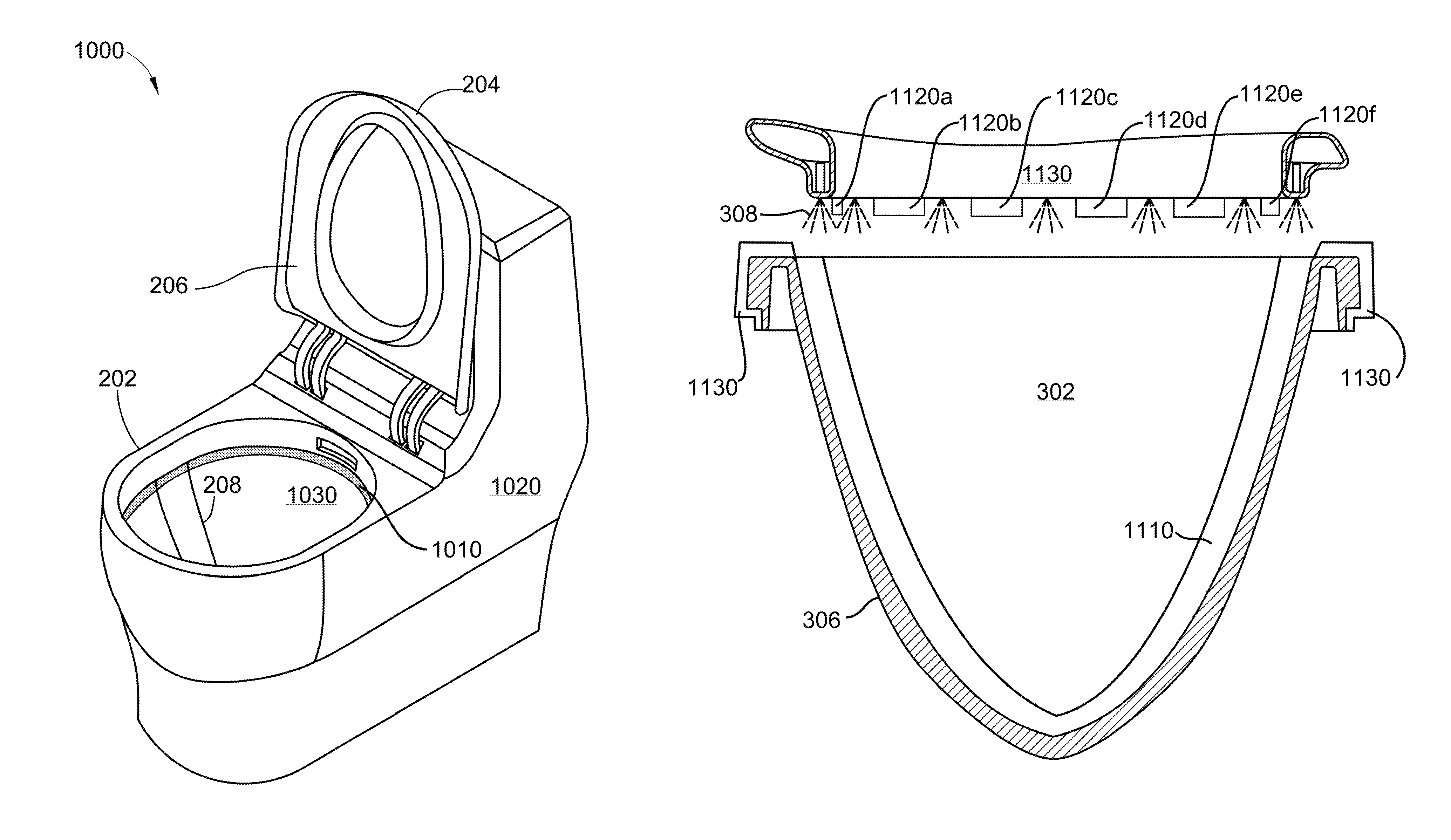

A toilet comprising a rinsing seat, a rimless bowl, and a helical loop trapway is disclosed. An annular cavity for the purpose of storing and dispensing rinse water from the rinsing seat is disclosed. Outlet nozzles arranged about the circumference of the rinsing seat and designed to dispense rinse water at the rimless bowl are disclosed. Rinsing seat supports, hinge assemblies, and seat sensors which offer additional functionality to the rinsing seat are also disclosed. The toilet includes a steep interior surface with a titanium dioxide coating and actuatable ultraviolet light sources. The titanium dioxide has antimicrobial properties in the presence of ultraviolet light to sanitize the toilet. The ultraviolet light source is actuatable to control when the antimicrobial properties of the titanium dioxide coating are activated. The exterior of the toilet is coated with doped titanium dioxide which is antimicrobial in the presence of visible light.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- A47K Class
- 734 Applications Filed
- 465 Patents Issued To-Date
- 63.36 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- A47K Class
- 46.36 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 5, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 5, 2029 |
