Temperature control apparatus including groove-routed optical fiber heating, substrate temperature control systems, electronic device processing systems, and processing methods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 29, 2018
Issued Date -
N/A
app pub date -
Jun 12, 2015
filing date -
Jul 2, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

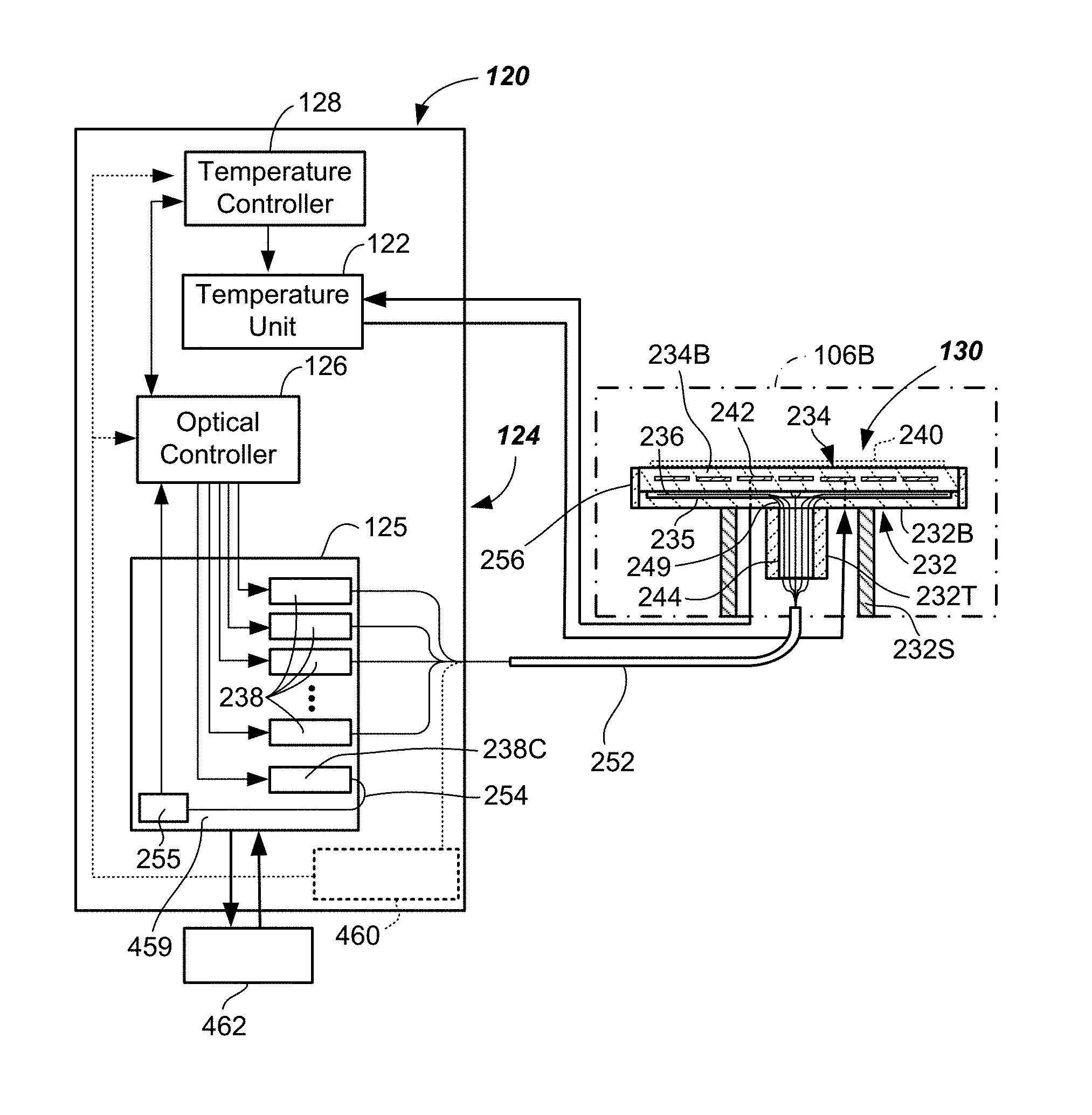

Substrate temperature control apparatus including groove-routed optical fibers. Substrate temperature control apparatus includes upper and lower members including grooves in one or both, and a plurality of optical fibers routed in the grooves. In one embodiment, the optical fibers are adapted to provide light-based pixelated heating. In another embodiment, embedded optical temperature sensors are adapted to provide temperature measurement. Substrate temperature control systems, electronic device processing systems, and methods including groove-routed optical fiber temperature control and measurement are described, as are numerous other aspects.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F21V Class
- 3770 Applications Filed
- 2807 Patents Issued To-Date
- 74.46 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F21V Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 29, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 29, 2029 |
