Optical computing device having tunable detector with non-planar semiconductor structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 29, 2018
Issued Date -
N/A
app pub date -
Dec 18, 2013
filing date -
Dec 18, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

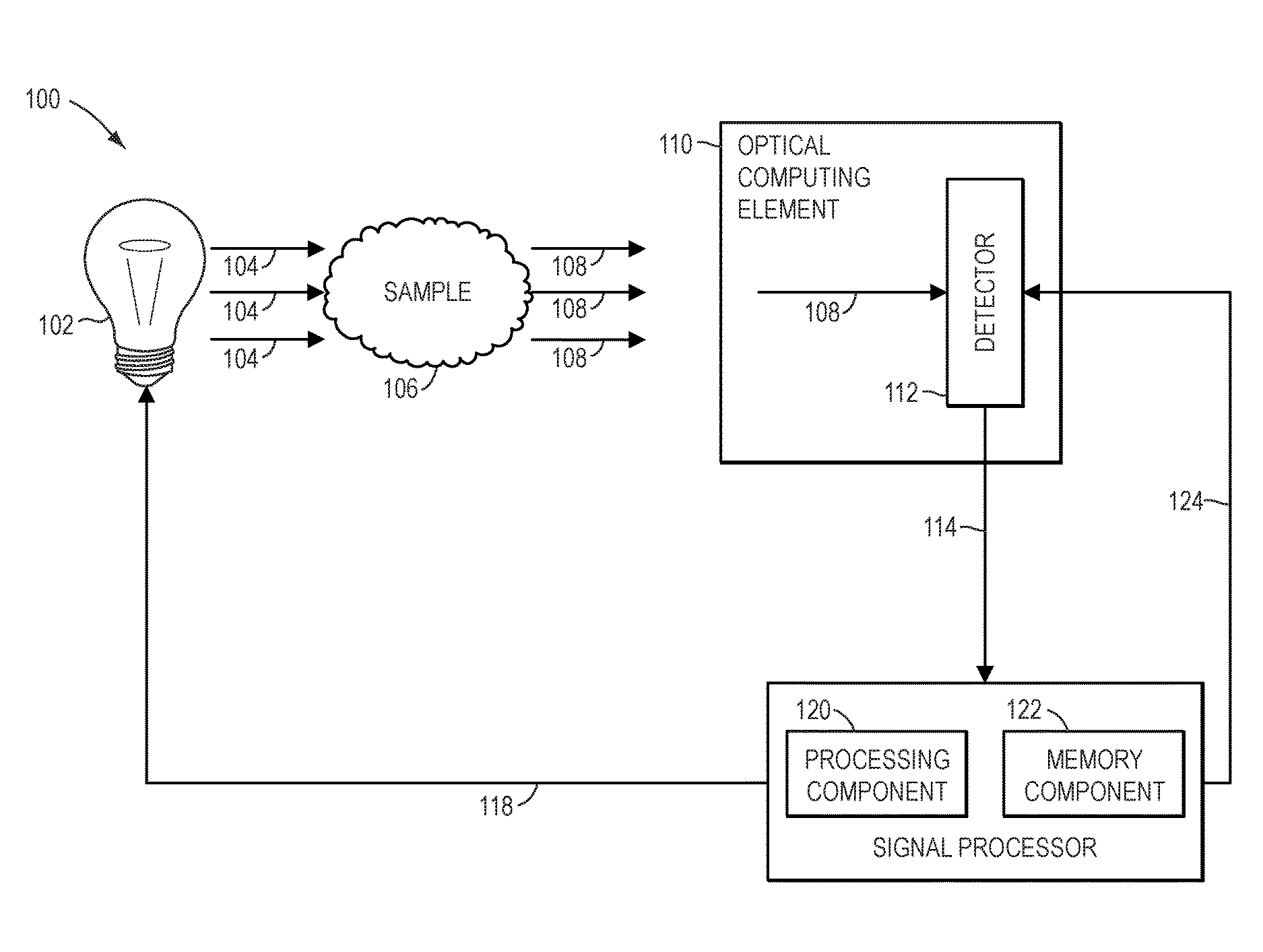

An optical computing device including a detector having a non-planar semiconductor structure is provided. The detector may include one or more structures having structure characteristics that may be optimized to respond to and weight predetermined wavelengths of light radiated from a sample that are related to characteristics of the sample. The detector may include an array of the one or more structures, wherein each of the structure units may be individually addressable to program or tune the detector to respond to and weight a spectra of light and generate an output signal based on the weighted spectra of light that is proportional to the characteristics of the sample.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- H01L Class
- 22267 Applications Filed
- 20713 Patents Issued To-Date
- 93.03 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 29, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 29, 2029 |
