Method and system for storage and transport of liquefied petroleum gases
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 29, 2018
Issued Date -
N/A
app pub date -
May 3, 2010
filing date -
Jun 30, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

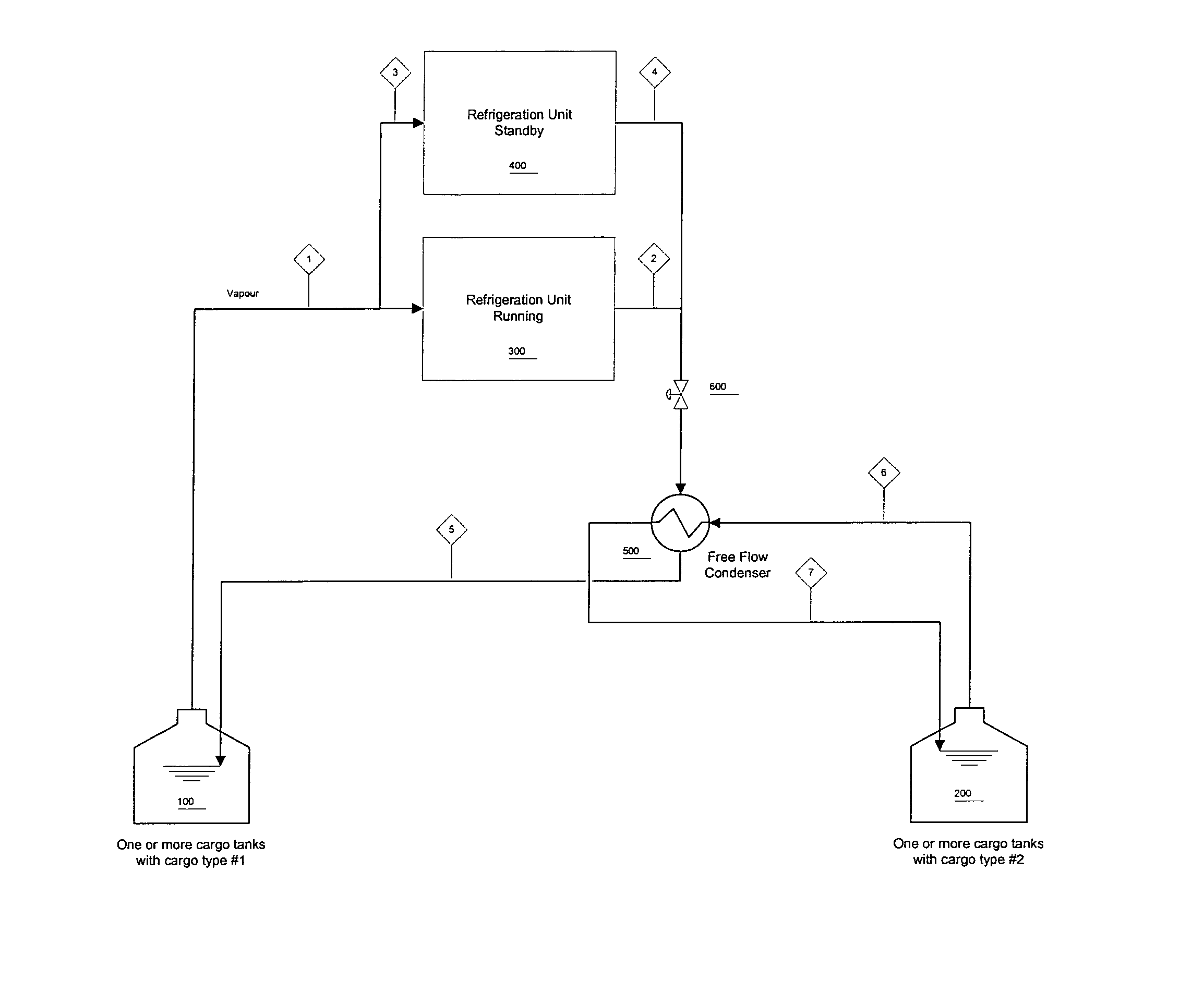

A method for storage and transport of LPG on LPG carriers, in particular two cargoes of different LPG types on same shipment, having reliquefaction units (300, 400) in which vaporized gases are condensed and then returned into at least one cargo tank (100) for the respective LPG cargo type. The method is further comprising: using the reliquefaction units (300, 400), at a minimum one running, as to condense vapor from the first cargo type; passing the condensed vapor through a heat exchanger (500); simultaneously flowing vapor from the second cargo type through the heat exchanger (500) as to condense vapor by means of heat exchanging with the condensed vapor; and returning the condensed vapors leaving the heat exchanger back into the respective cargo types. The present invention is also disclosing a system for storage and transport of LPG on LPG carriers.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- F25J Class
- 101 Applications Filed
- 61 Patents Issued To-Date
- 60.40 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F25J Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 29, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 29, 2029 |
