Method for filling a tank with liquefied gas
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 29, 2018
Issued Date -
N/A
app pub date -
Oct 10, 2013
filing date -
Nov 23, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

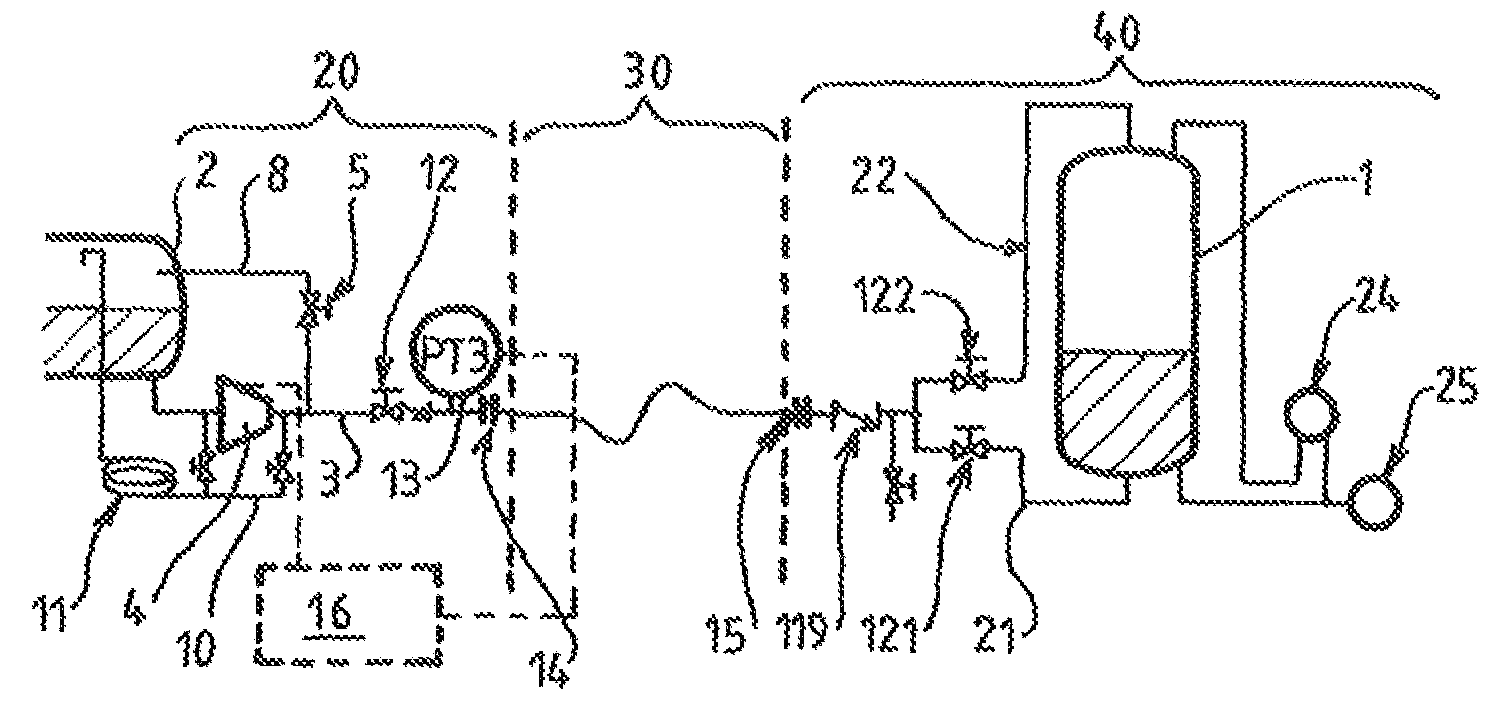

A method for filling a tank (1) with liquefied gas, in particular a tank with cryogenic liquid, from a liquefied gas container (2), in particular a cryogenic liquid container (2), which container (2) is in fluid communication with the tank (1) via a filling pipe (3), wherein the method uses a pressure differential generation member (4) for transferring liquid from the container (2) to the tank (1) at a predetermined pressure, characterized in that, at or following the switching on time (M) of the pressure differential generation member (4), the method comprises a step of determining the pressure (PT4) in the tank (1) via a measurement of a first pressure in the filling pipe (3), and, following the determination of the pressure (PT4) in the tank, a step of limiting the first instantaneous pressure (PT3) to a level below a maximum pressure threshold (PT3sup), said maximum pressure threshold being defined on the basis of the determined value of the pressure (PT4) in the tank (1) and exceeding said determined value of the pressure (PT4) in the tank by two to twenty bars and preferably by two to nine bars.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- F17C Class
- 246 Applications Filed
- 201 Patents Issued To-Date
- 81.71 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F17C Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 29, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 29, 2029 |
