cycle with independent shafts for combustion cycle elements and propulsion elements
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 29, 2018
Issued Date -
N/A
app pub date -
Jun 17, 2016
filing date -
Jun 19, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

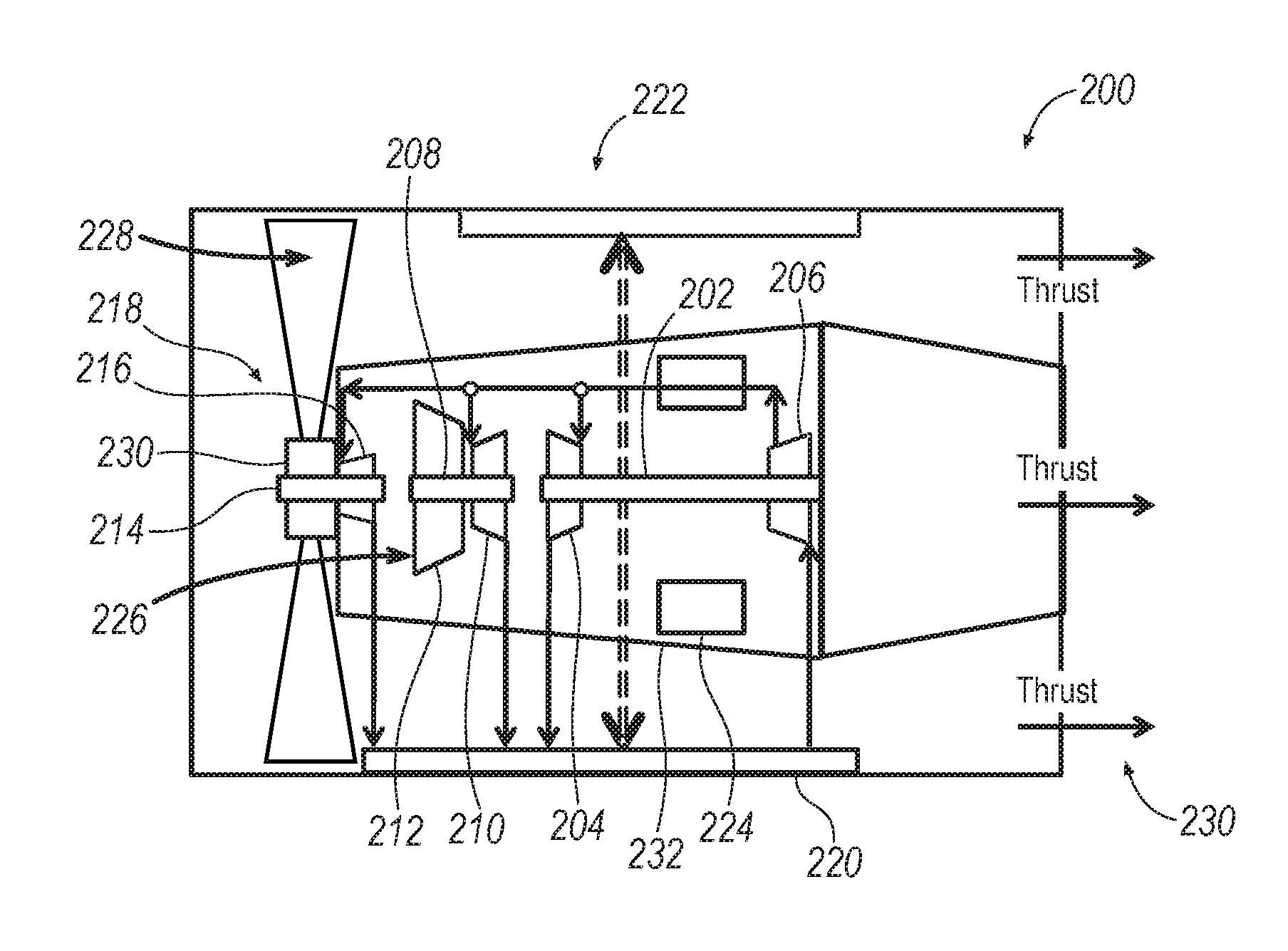

A gas turbine engine includes a first shaft coupled to a first turbine and a first compressor, a second shaft coupled to a second turbine and a second compressor, and a third shaft coupled to a third turbine and a fan assembly. The turbine engine includes a heat rejection heat exchanger configured to reject heat from a closed loop system with air passed from the fan assembly, and a combustor positioned to receive compressed air from the second compressor as a core stream. The closed-loop system includes the first, second, and third turbines and the first compressor and receives energy input from the combustor.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F02K Class
- 527 Applications Filed
- 379 Patents Issued To-Date
- 71.92 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F02K Class
- 22.31 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 29, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 29, 2029 |
