Locking mechanism and related electronic device capable of being switched for switchable security locks with different design
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 29, 2018
Issued Date -
N/A
app pub date -
Mar 9, 2015
filing date -
Sep 25, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

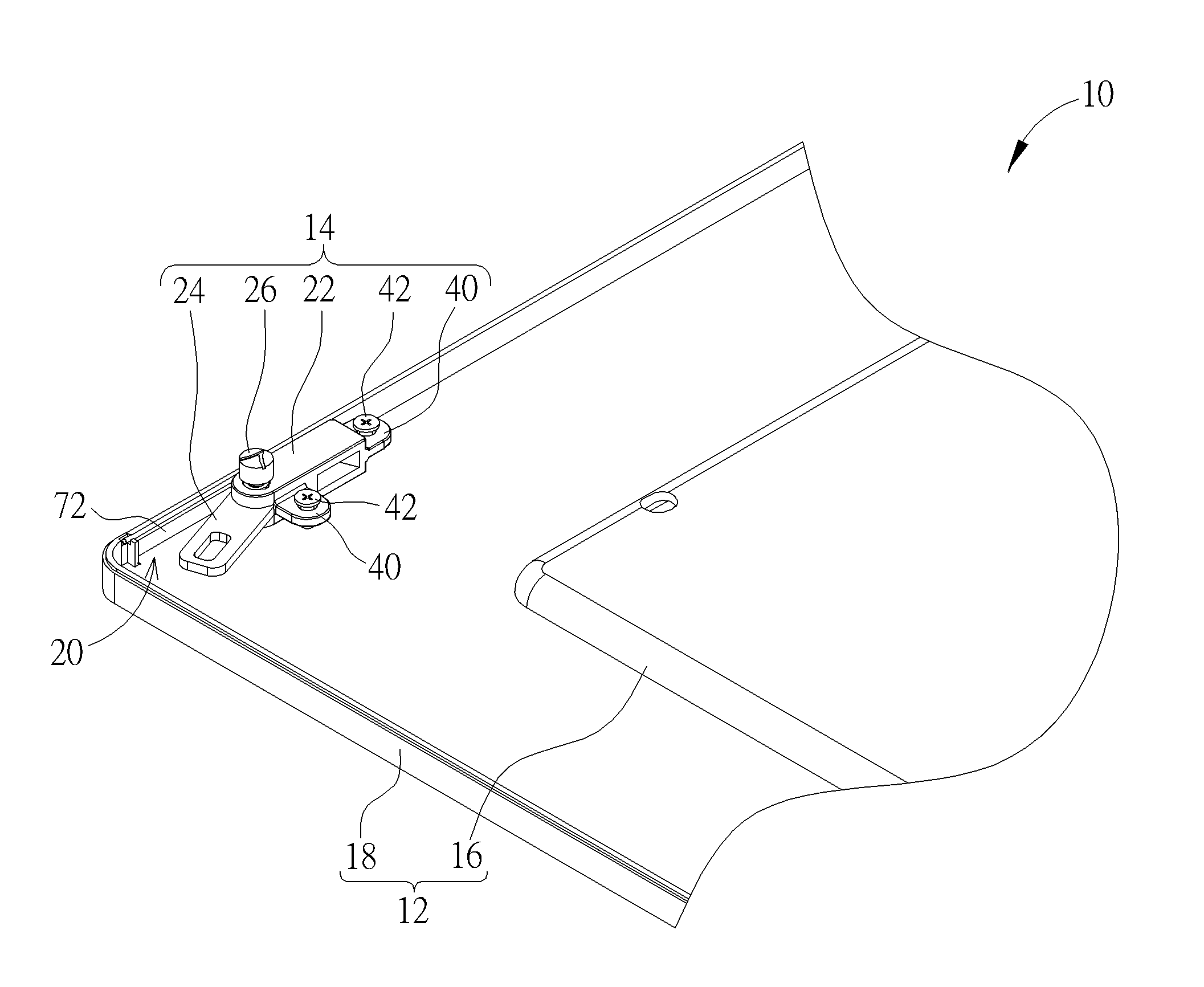

A locking mechanism selectively suitable for security locks with different design includes a first locking component, a second locking component and a pivoting component. The first locking component includes a first body, a first stretching portion and a second stretching portion. A first locking hole is formed on the first body. A first piercing hole, a first constraining hole and a second constraining hole are formed on the first stretching portion. A second piercing hole and a slide slot are formed on the second stretching portion. The second locking component includes a second body whereon a second locking hole, a third piercing hole and a third constraining hole are formed. The pivoting component includes a shaft, a first block and a second block. The shaft pieces through the foresaid piercing holes. The first block and the second block are movably switched between the foresaid constraining holes and the slide slot.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E05B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 29, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 29, 2029 |
