Liquid and gas-impermeable connections for panels of stay-in-place form-work systems
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 29, 2018
Issued Date -
N/A
app pub date -
Apr 2, 2015
filing date -
Apr 4, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

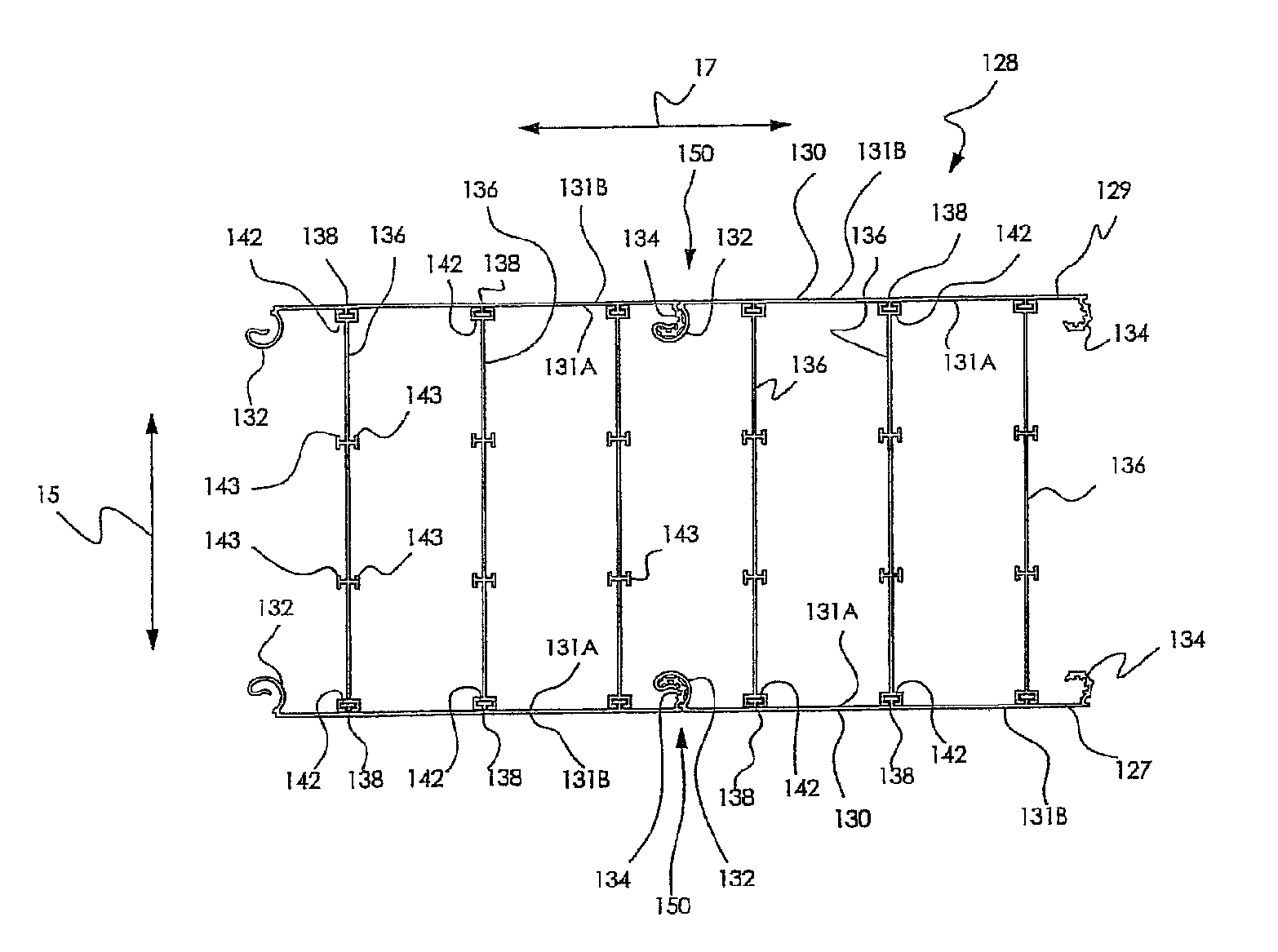

A stay-in-place form comprises a plurality of elongated panels connectable to one another in edge-to-edge relationship. The plurality of panels comprises first and second panels connectable to one another in edge-adjacent relationship by a connection which comprises a contact joint. The first panel comprise a longitudinally extending first seal-retaining projection shaped to project outwardly from the outer surface of the first panel at a location spaced apart from a first outer-surface transverse edge of the first panel in a first transverse direction. The second panel comprising a longitudinally extending second seal-retaining projection shaped to project outwardly from the outer surface of the second panel at a location spaced apart from a second outer-surface transverse edge of the second panel in a second transverse direction opposite the first transverse direction. The first and second seal-retaining projections and the outer surfaces of the first and second panels defining at least a portion of a seal-receiving concavity which opens outwardly from the form when the connection is made.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- E04B Class
- 42.29 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 29, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 29, 2029 |
