Device for handling artifacts
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 29, 2018
Issued Date -
N/A
app pub date -
Feb 15, 2017
filing date -
Feb 15, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

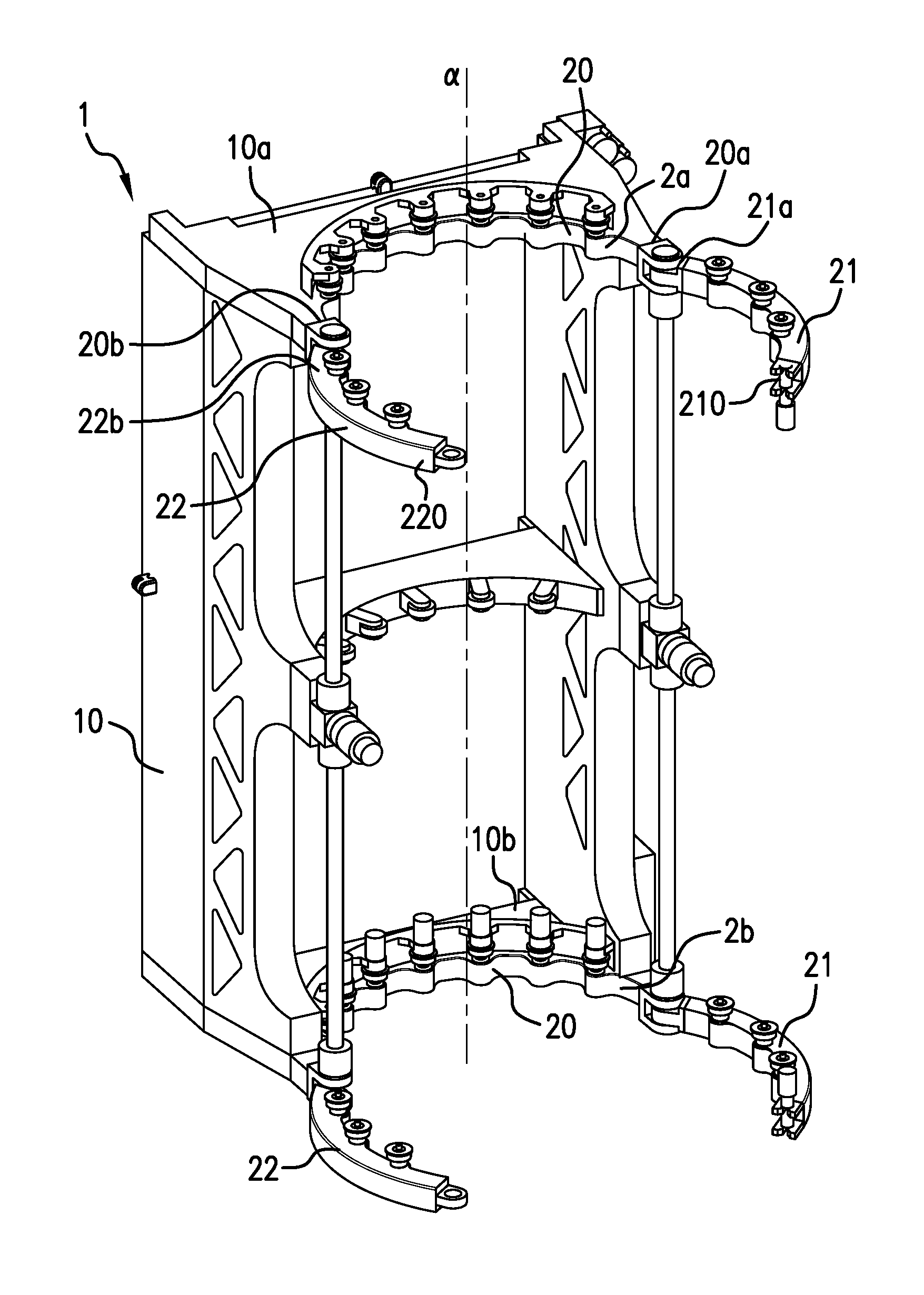

A device for handling an artifact of substantially cylindrical shape, having a bed (10) and supporting means fixed to the bed (10) and connected to actuators. The supporting means being positioned along at least an arc of circumference lying in a plane orthogonal to the development axis α of the bed (10) and having rolling elements (3) adapted to support and handle an artifact, at least one of them being motorized. Each rolling element (3) is connected to one of a plurality of corresponding actuators operatively connected to each other and adapted to regulate a movement of the rolling elements (3) in response to forces exerted by the artifact on each rolling element (3), in such a way as to distribute the forces uniformly on each rolling element (3) to position one or more resultants of the forces in one or more points.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B23Q Class
- 705 Applications Filed
- 514 Patents Issued To-Date
- 72.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- B23Q Class
- 40.32 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 29, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 29, 2029 |
