Double-sided tangential cutting insert and cutting tool system using the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 29, 2018
Issued Date -
N/A
app pub date -
Jul 16, 2015
filing date -
Jul 16, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

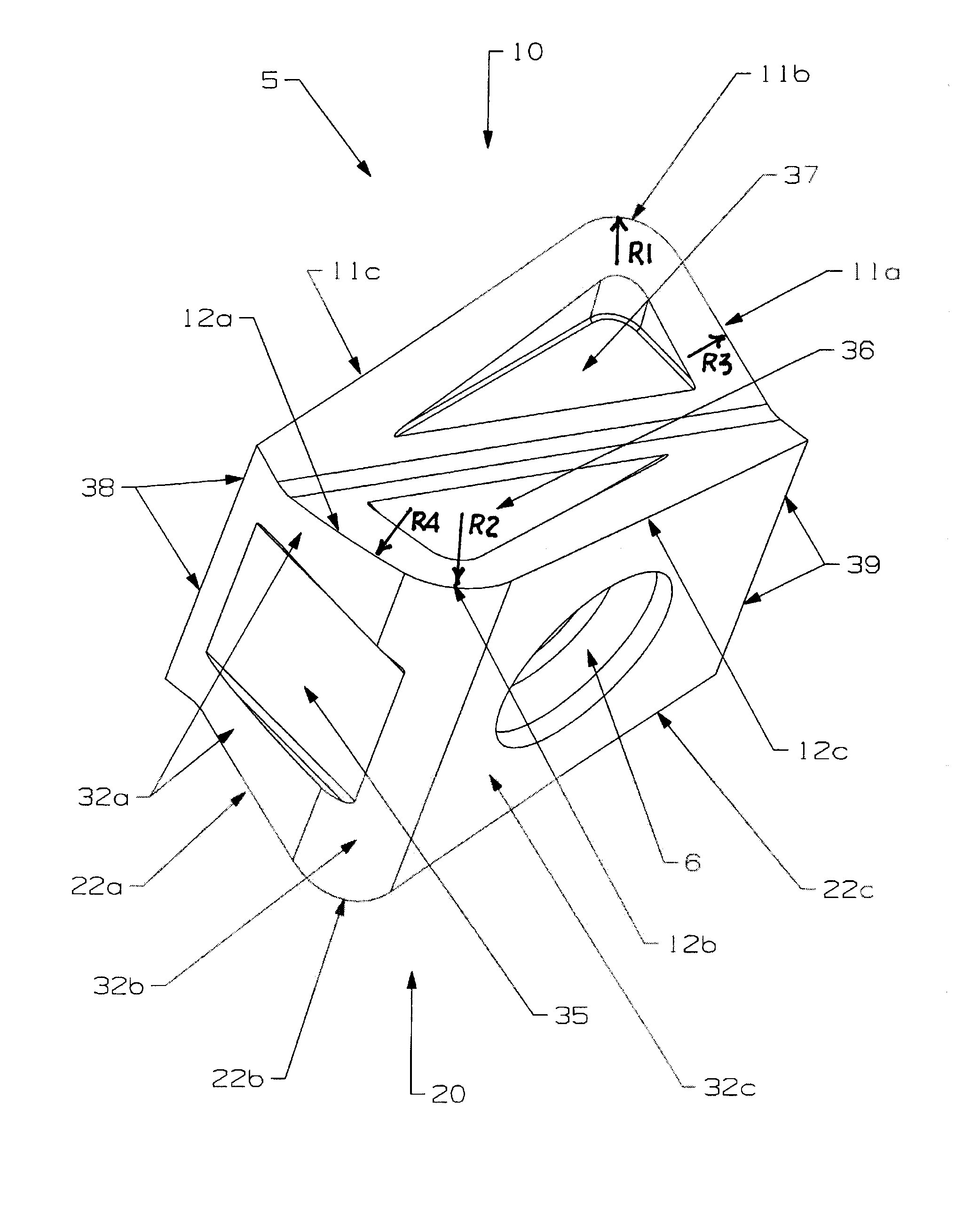

A double-sided tangential cutting insert, as well as a tool holder system that carries a plurality of the double-sided tangential cutting inserts, that has a peripheral side shape, as viewed from one of said cutting rake faces, that includes a pair of generally identical opposing main cutting edges wherein each of the main cutting edge comprises a substantially straight main cutting edge portion and an adjoining convex main cutting edge portion. The convex main cutting edge portion is truncated by an adjacent convex minor side face so as to define a generally sharp edge and a point of truncation. The peripheral side shape further includes a pair of opposing full nose cutting edges with a nose cutting radius; and a pair of opposing convex minor cutting edges with a minor cutting edge radius. The minor cutting edge radius is at least about four times greater than the nose cutting radius.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B23C Class
- 230 Applications Filed
- 192 Patents Issued To-Date
- 83.48 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- B23C Class
- 25.69 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 29, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 29, 2029 |
