Spark plug having reduced wear of the center electrode and method of making such a spark plug
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 22, 2018
Issued Date -
N/A
app pub date -
Sep 16, 2015
filing date -
Nov 20, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

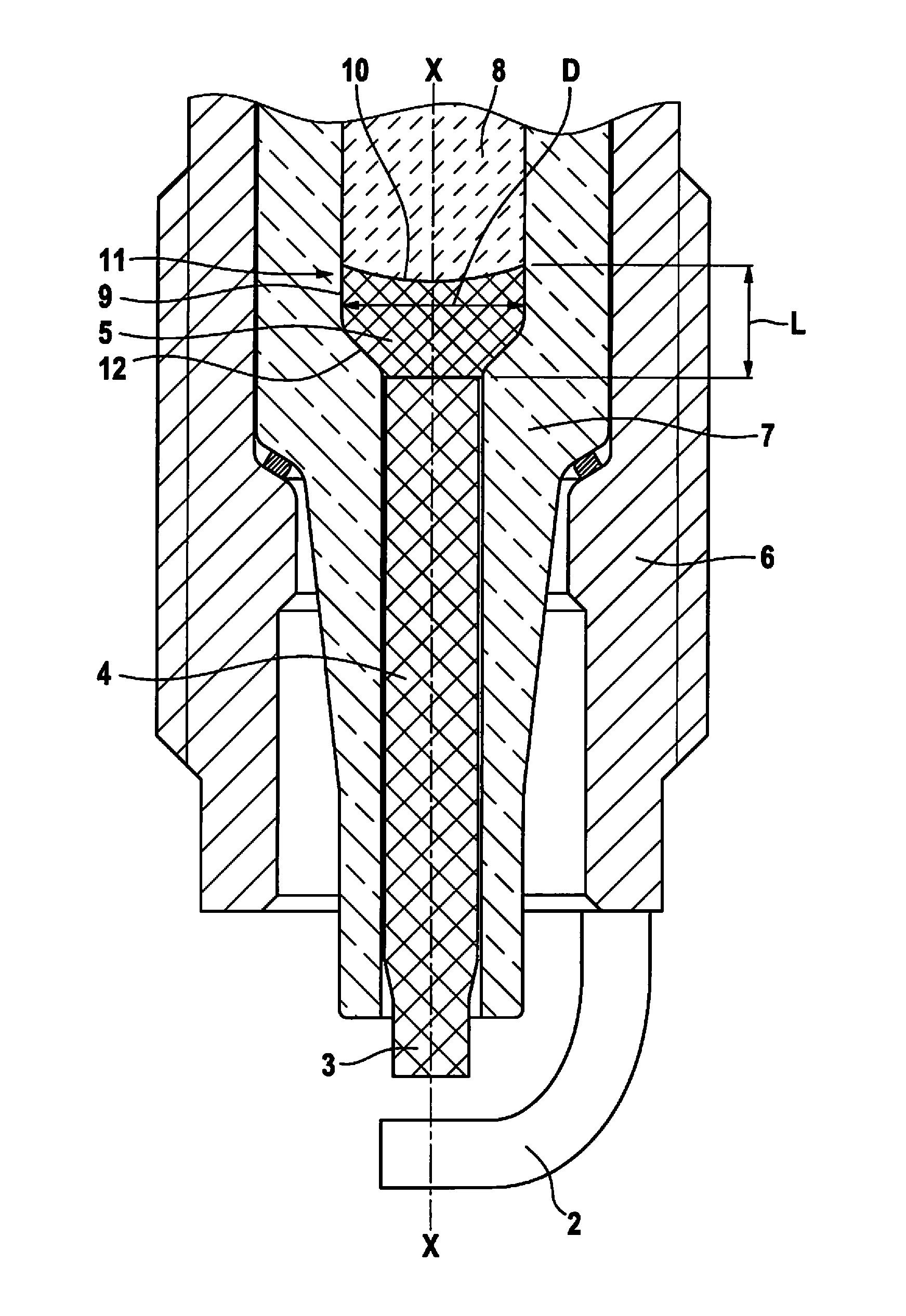

A spark plug with an improved heat-dissipating capacity of the center electrode. The spark plug includes a ground electrode, a center electrode and a ceramic insulator, which is designed to accommodate the center electrode. The center electrode has a center-electrode head which lies in the direction of an electrical connection region of the spark plug and which includes an end face that is in contact with an electrically conductive connection element disposed between the electrical connection region and the center-electrode head. At its outer periphery, the center-electrode head is at least regionally in heat-conducting contact with the ceramic insulator and forms a heat-conducting contact region.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H01T Class
- 186 Applications Filed
- 166 Patents Issued To-Date
- 89.25 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01T Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 22, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 22, 2029 |
