Banknote acceptor with visual checking
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 22, 2018
Issued Date -
N/A
app pub date -
Jun 27, 2012
filing date -
Mar 20, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

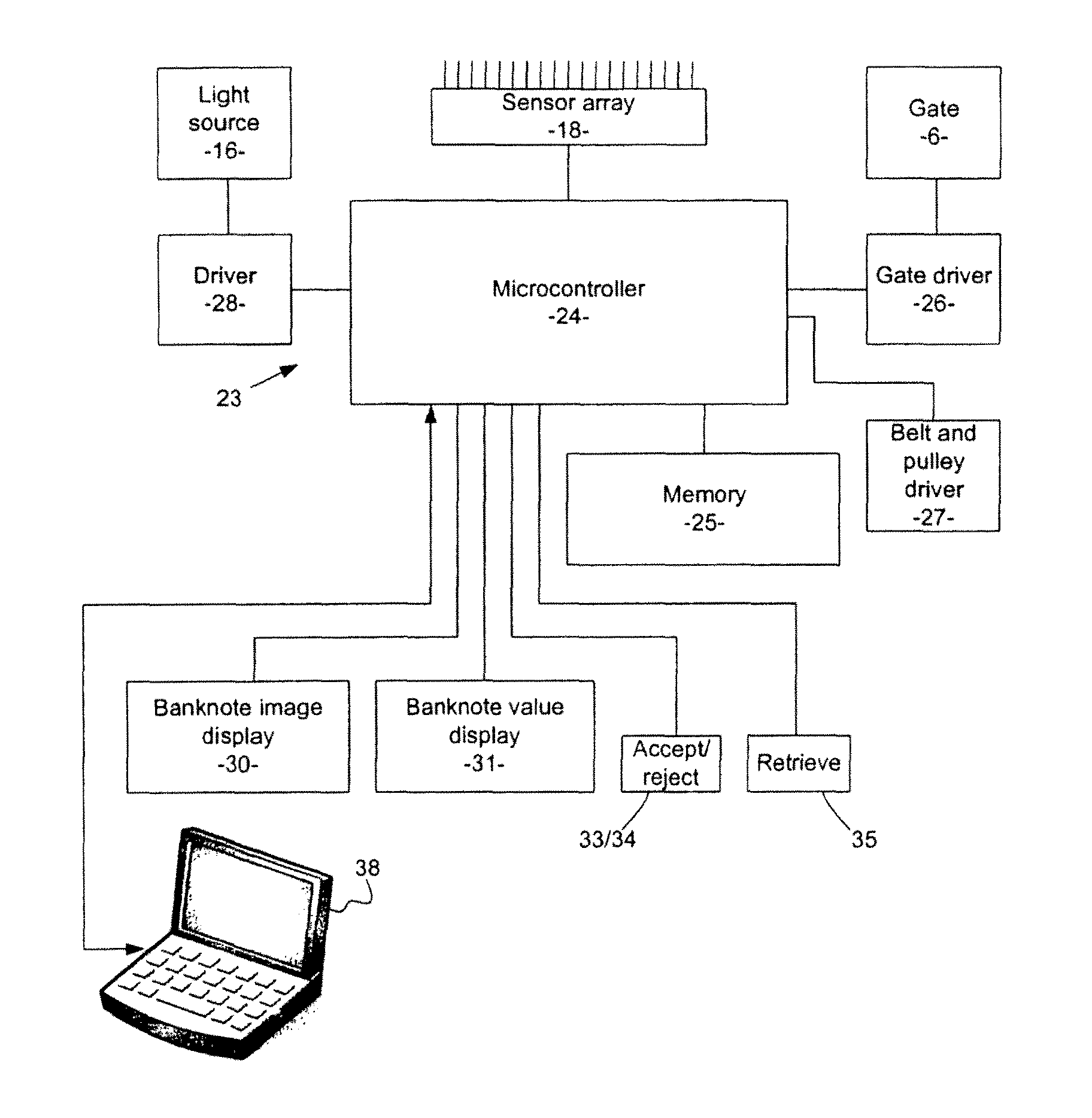

A banknote acceptor 1 for authenticating a banknote 2, has a sensing station S with detector 18 that produces image signals corresponding to a face the banknote. A processor 24 pre-processes the image signals and compares them with stored reference data corresponding to an acceptable banknote from memory 25 to determining the authenticity of the banknote and its denomination. A display device 29 displays an image 31 corresponding to the banknote under test based on the image signals from the detector 18, to allow the user to perform a visual check that the banknote detected at the sensing station corresponds to the banknote under test presented by the user. Also, the detected denomination of the banknote is displayed on device 32. The user can accept or reject the banknote using buttons 33 and 34, and retrieve images of previously accepted banknotes with button 35.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- G06Q Class
- 8277 Applications Filed
- 6321 Patents Issued To-Date
- 76.37 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G06Q Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 22, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 22, 2029 |
