Post-processing apparatus and image forming system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 22, 2018
Issued Date -
N/A
app pub date -
Aug 23, 2017
filing date -
Oct 24, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

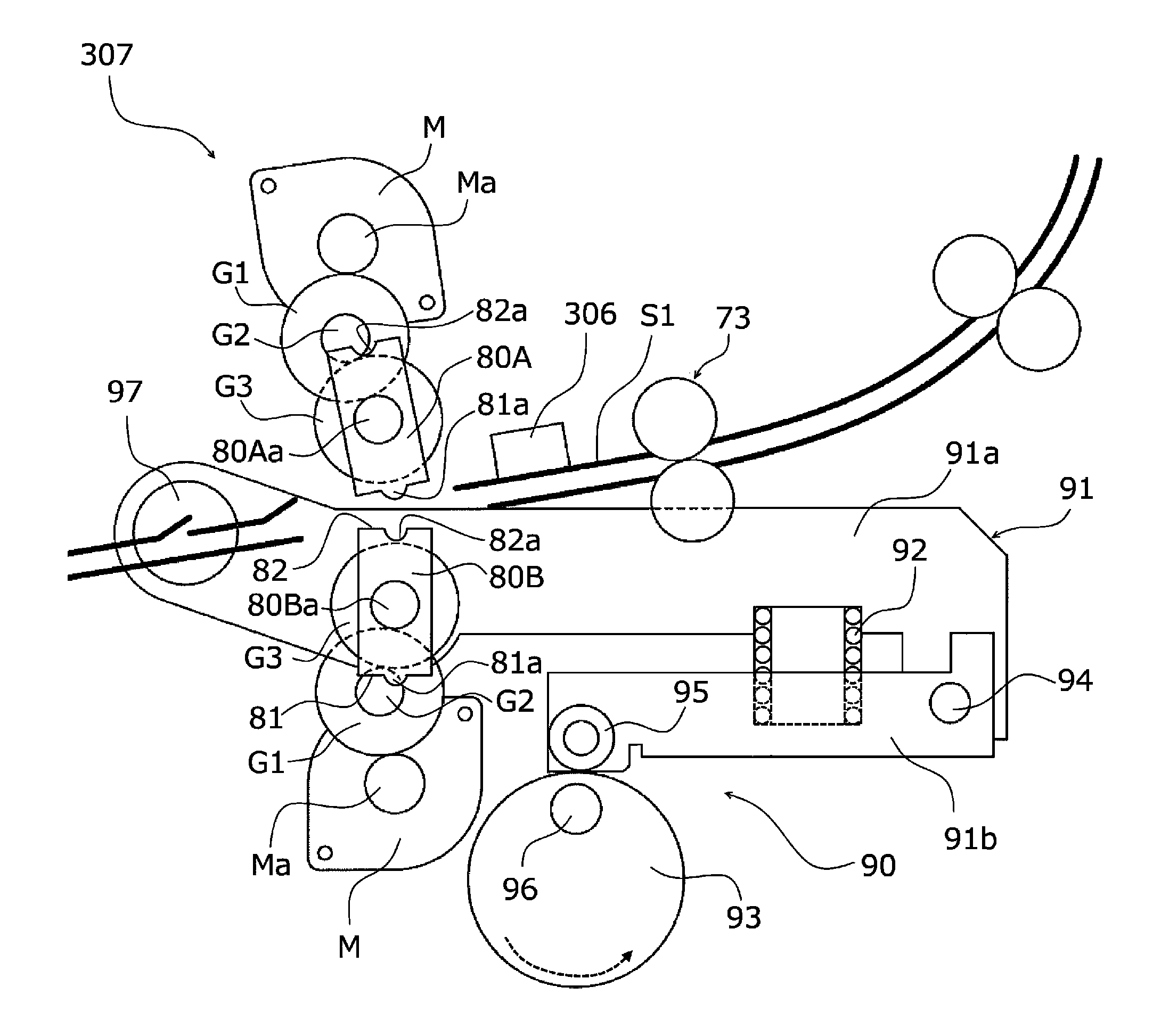

A post-processing device includes first and second opposite members extending in a predetermined direction of a recording medium, the opposite members each including a first surface having a protrusion and a second surface having a recess, mutually facing to interpose the recording medium therebetween and being rotatable. A position of the opposite members is switched between a first position, at which the first surface of the first opposite member and the second surface of the second opposite member engage with each other and form a crease protruding in a first direction on the recording medium, and a second position, at which the second surface of the first opposite member and the first surface of the second opposite member engage with each other and form a crease protruding in a second direction reverse to the first direction on the recording medium, depending on an output destination of the recording medium.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B31F Class
- 116 Applications Filed
- 92 Patents Issued To-Date
- 79.32 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B31F Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 22, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 22, 2029 |
