Seat having capacitive coupling sensor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 22, 2018
Issued Date -
N/A
app pub date -
Sep 5, 2014
filing date -
Sep 5, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

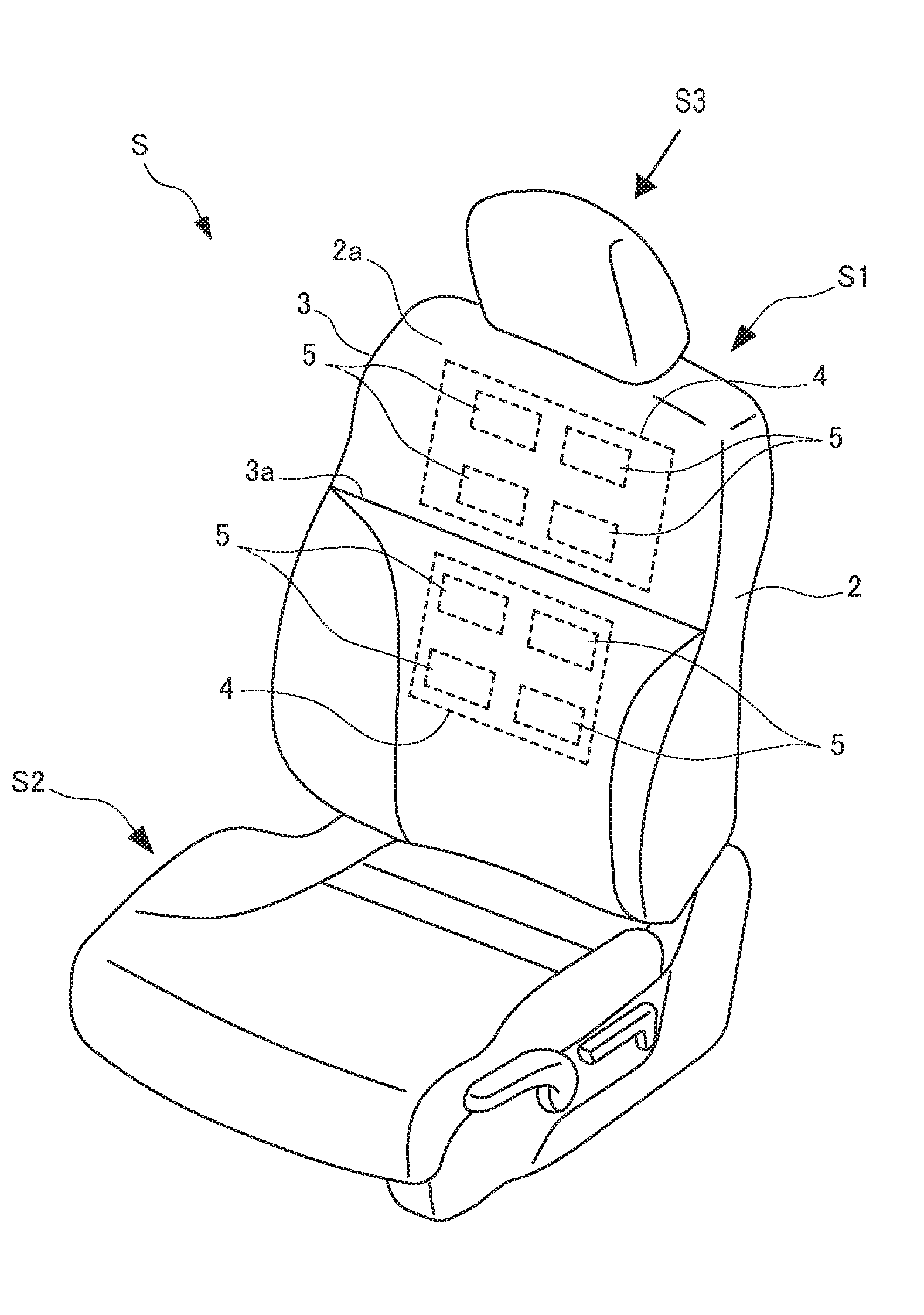

A seat configured so that the accuracy of detection of each sensor provided in the seat to detect the body potential of a seated occupant can be improved without degrading the sense and comfort of the seat. A seat includes a trim cover having a contact surface for a seated occupant, and sensors arranged opposite to the contact surface and configured to detect the body potential of the seated occupant. Each sensor is a capacitive coupling sensor configured to detect the body potential through the trim cover. Moreover, a portion of the seat facing each sensor includes a dielectric configured to increase the dielectric constant of such a portion.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- A61B Class
- 14296 Applications Filed
- 12053 Patents Issued To-Date
- 84.32 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- A61B Class
- 20.51 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 22, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 22, 2029 |
