Roll surface layer material for hot rolling with excellent fatigue resistance produced by centrifugal casting, and composite roll for hot rolling produced through centrifugal casting
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 22, 2018
Issued Date -
N/A
app pub date -
Oct 15, 2012
filing date -
Oct 19, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

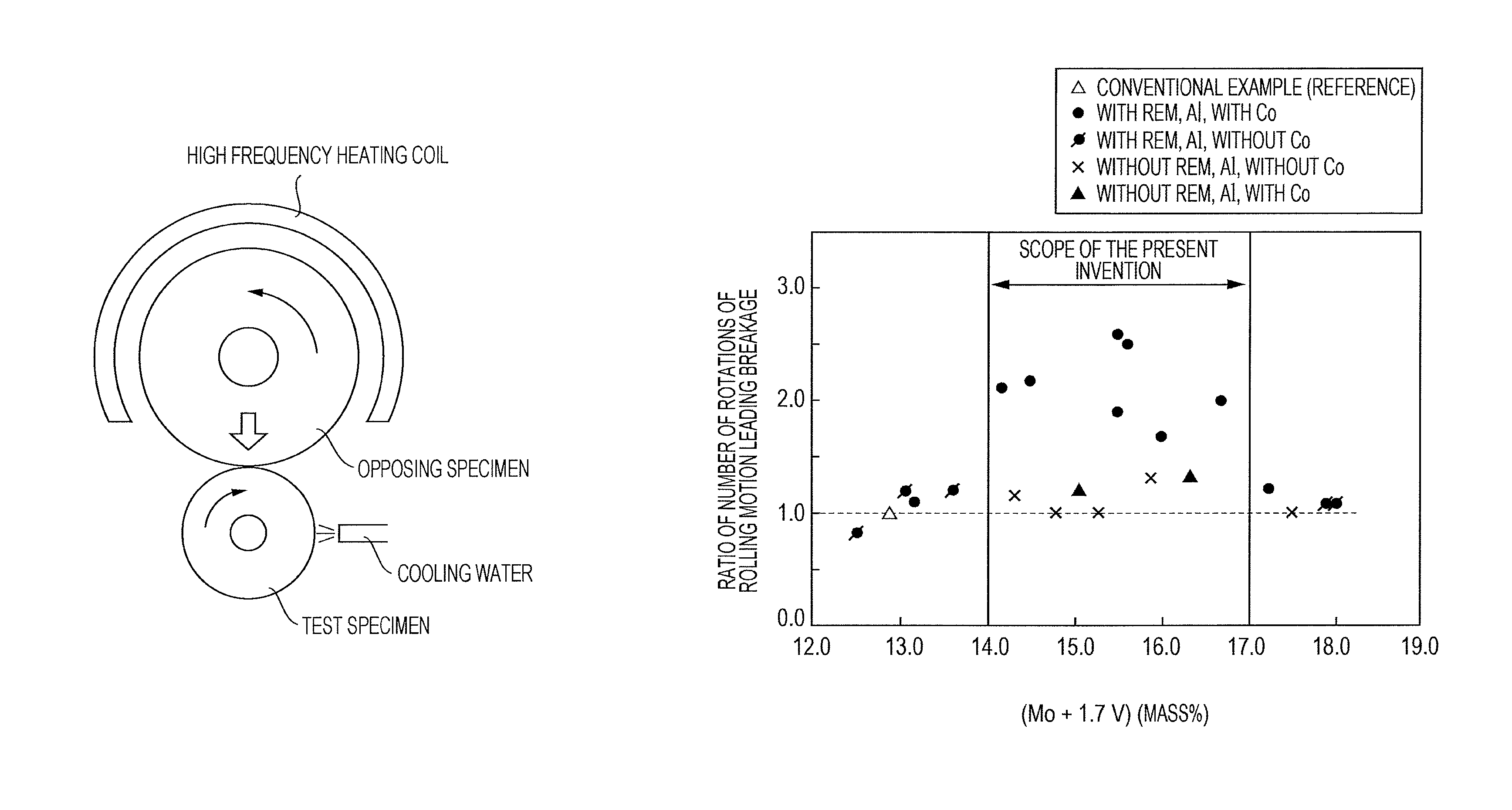

There is provided a roll surface layer material including a roll surface layer with excellent fatigue resistance. The roll surface layer material has a composition including, on a mass % basis, C: 2.3% to 2.9%, Si: 0.2% to 0.8%, Mn: 0.2% to 1.0%, Cr: 5.0% to 7.5%, Mo: 4.4% to 6.5%, V: 5.3% to 7.0%, Nb: 0.6% to 1.5%, and Co: 0.1% to 4.0% so as to satisfy 14.0≤(Mo+1.7V)≤17.0 (where Mo represents a content (mass %) of Mo and V represents a content (mass %) of V) and further including Al: 0.001% to 0.03% and/or REM: 0.001% to 0.03%, wherein a carbide is contained at an area fraction of 13% to 40%. A composite roll obtained by integrally welding a shaft member to the roll surface layer member is treated as a centrifugal cast roll that includes a surface layer with excellent fatigue resistance.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B22D Class
- 363 Applications Filed
- 293 Patents Issued To-Date
- 80.72 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B22D Class
- 54.85 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 22, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 22, 2029 |
