Process and apparatus for producing profiles from metal
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 22, 2018
Issued Date -
N/A
app pub date -
Jun 30, 2015
filing date -
Jul 3, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

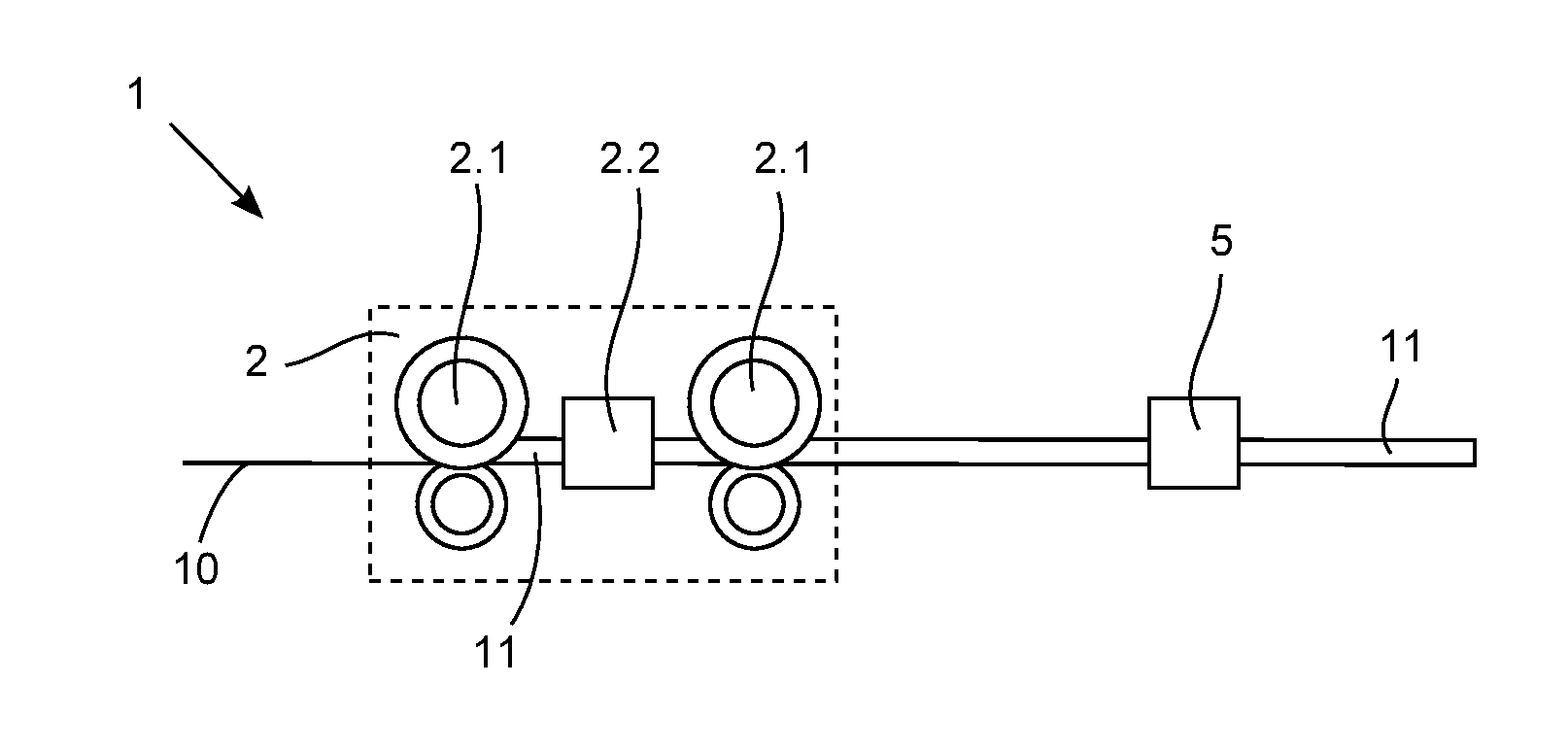

The present disclosure relates to a process for producing profiles from metal, a metallic strip material being fed to a shaping-hardening device, in which the strip material is shaped into a profile and is hardened at least in certain regions, portions of the profile that are emerging continuously from the shaping-hardening device being coated with a protective layer. The disclosure also relates to an apparatus for producing profiles from metal, with a shaping-hardening device for shaping a metallic strip material that can be fed to the shaping-hardening device into a profile and for hardening the profile at least in certain regions, and with a coating device, by which portions of the profile that are emerging continuously from the shaping-hardening device can be coated with a protective layer.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| DE | B4 | DE102014109315 | Jul 03, 2014 |
| CN | A | CN105234061 | Jul 03, 2015 |
International Classification(s)
- 2015 Application Filing Year
- C23C Class
- 3009 Applications Filed
- 2118 Patents Issued To-Date
- 70.39 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C23C Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 22, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 22, 2029 |
