DC-DC CONVERTER CONTROLLER
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Oct 4, 2017
filing date -
Nov 15, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

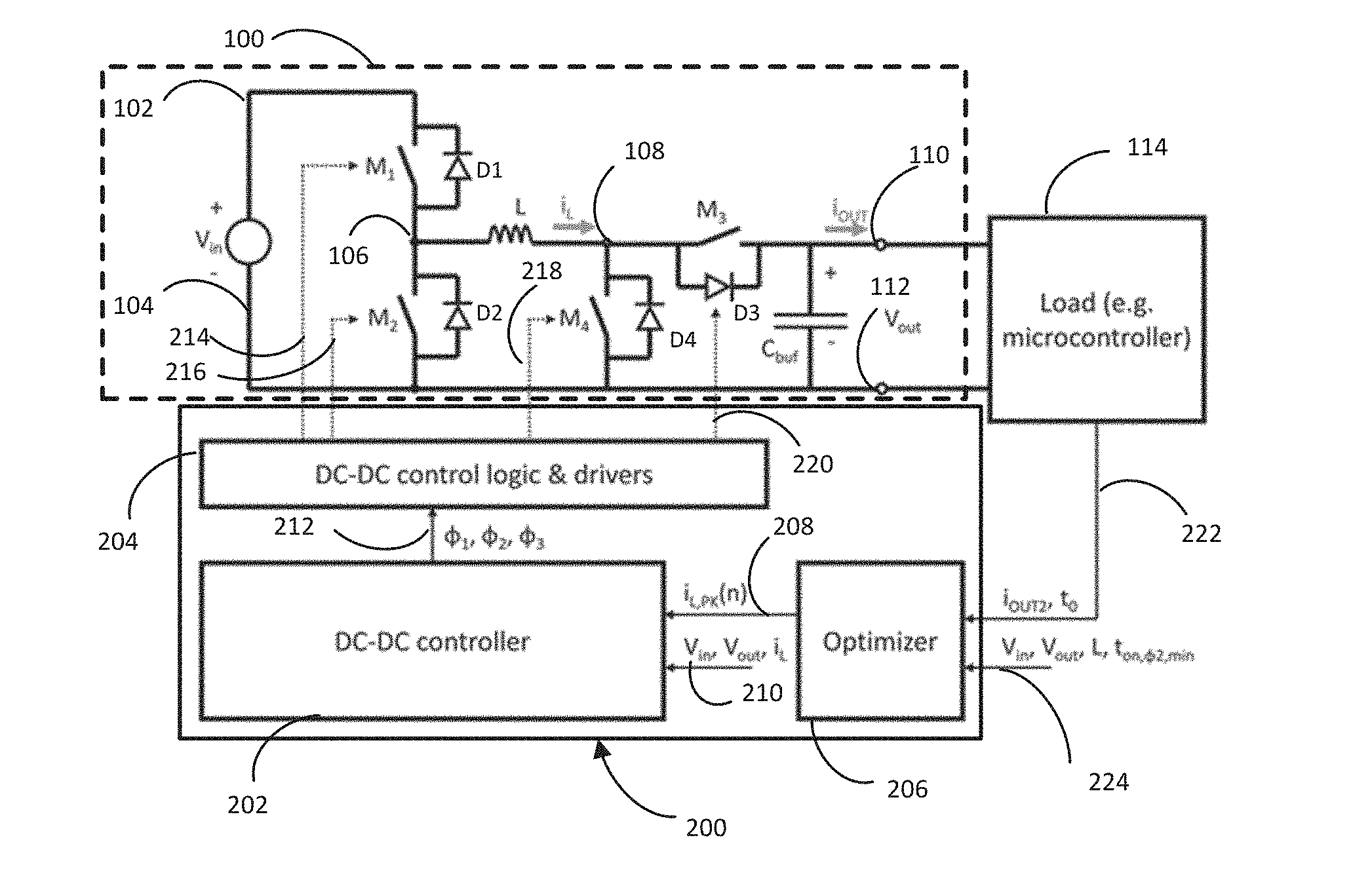

A predictive controller for an inductive DC-DC converter comprising a switchable inductor is described. The predictive controller includes a DC-DC controller configured to generate a plurality of switching phases to control the inductor current in the switchable inductor, the duration of the switching phases being determined from at least one of a reference inductor current value and a reference output voltage value. The predictive controller includes a supervisory controller coupled to the DC-DC controller and configured to set a reference inductor current value dependent on an expected change in load current and/or voltage of a load configured to be connected to the load terminal. The expected change in load current and/or voltage is determined from a predetermined load profile.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- H02M Class
- 19.31 % this patent is cited more than
- 7 Age
