System and method for phase retrieval in lensless imaging
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 15, 2018
Issued Date -
N/A
app pub date -
Nov 4, 2014
filing date -
Nov 4, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

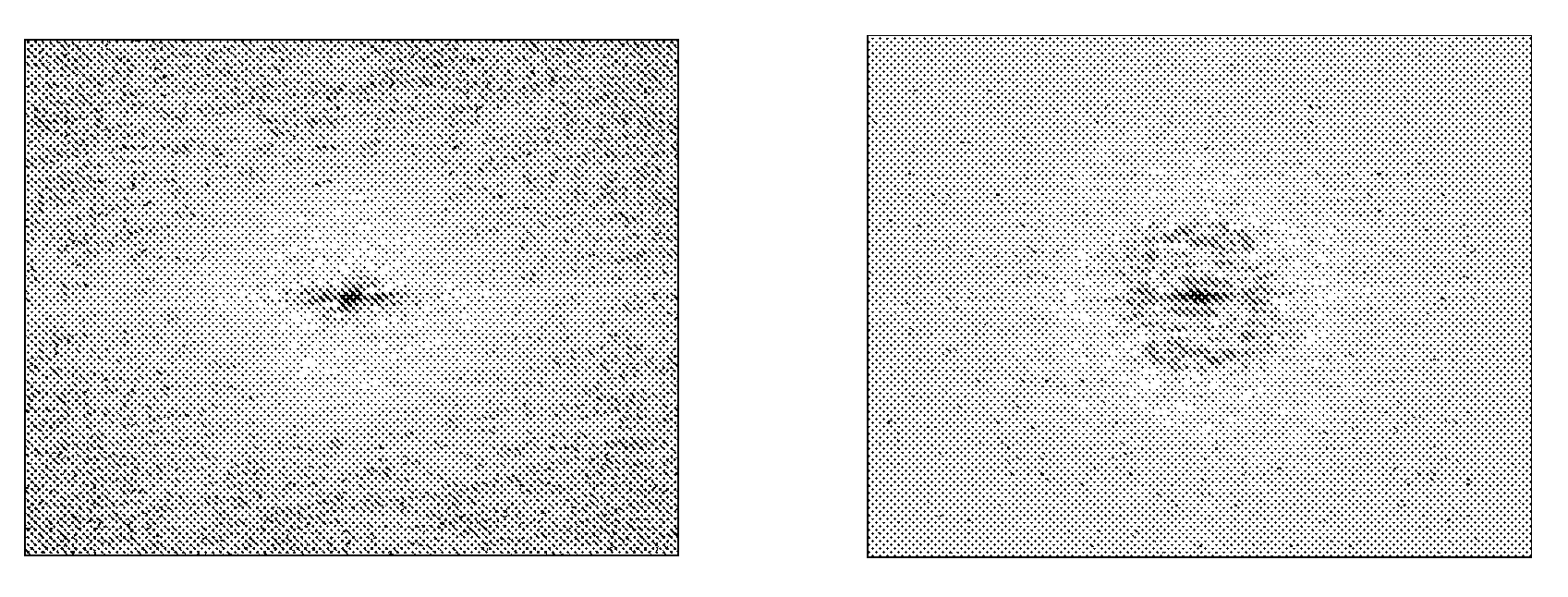

A method and system for use in reconstruction and retrieval of phase information associated with a two-dimensional diffractive response are presented. The method comprising: providing (75) input data indicative of one or more diffractive patterns corresponding to diffractive responses from one or more objects (50). Dividing (130) said input data into a plurality of one-dimensional slices and determining (140) one-dimensional phase data for at least some of said one-dimensional slices. Tailoring (150) the reconstructed phase data of said one-dimensional slices to form a two-dimensional phase solution. The two-dimensional phase solution is defined by phase shifts of said reconstructed one-dimensional phase data of said one-dimensional slices. The two-dimensional phase solution thus enables obtaining two-dimensional reconstructed phase data suitable for reconstruction of image data (250).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G06T Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 15, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 15, 2029 |
