Rimless toilet pan and a method of flushing same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 15, 2018
Issued Date -
N/A
app pub date -
May 8, 2015
filing date -
Jun 26, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

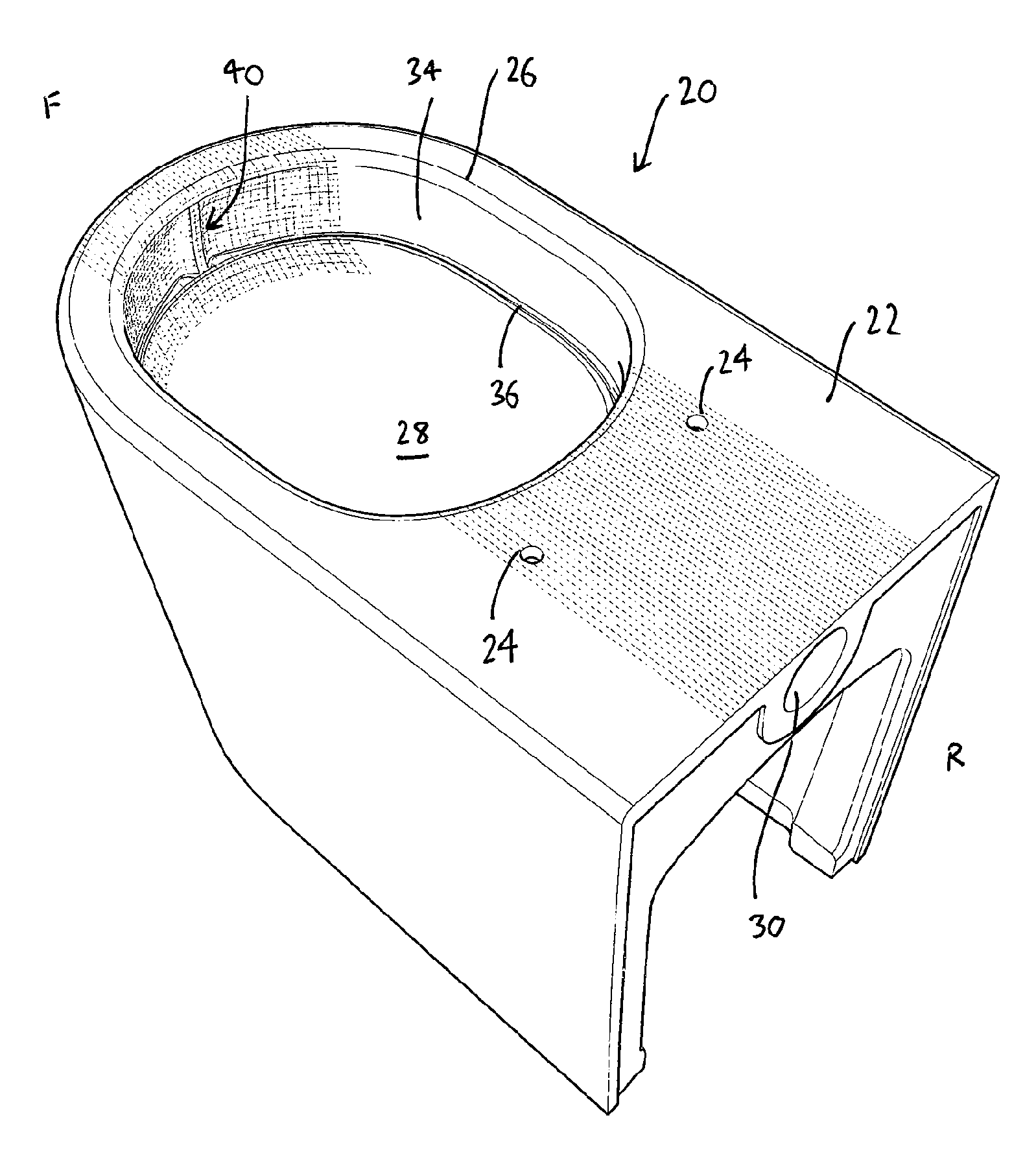

A rimless toilet pan (20) including a forward end (F), a rearward end (R), a pan bowl (28), a flushing outlet (32), a flushing water inlet (30), an inwardly facing first sidewall (34), an inwardly facing second sidewall (37) and a flushing water flow splitter (38). The flushing outlet (32) is in fluid communication with the pan bowl (28). The flushing water inlet (30) is in fluid communication with the pan bowl (28). The inwardly facing first sidewall (34) extends substantially around the top of the pan bowl (28). The substantially horizontal ledge (36) extends substantially around the bottom of the first sidewall (34). The inwardly facing second sidewall (37) extends substantially around the pan bowl (28) under the horizontal ledge (36). The flushing water flow splitter (38) is substantially adjacent a rearward end of the first sidewall (34), is in fluid communication with the flushing water inlet (30) and has a leftwards outlet (38a) and a rightwards outlet (38b). The flushing water flow balancer (40) is on a frontwards part of the first sidewall (34), includes an inwardly facing projection (40a/b/c) extending vertically through at least part of the height of the first sidewall (34) and is positioned substantially symmetrically in relation to a forward to rearward centerline (42) of the toilet pan (28).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- E03D Class
- 199 Applications Filed
- 163 Patents Issued To-Date
- 81.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- E03D Class
- 42.77 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 15, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 15, 2029 |
