Flush tank with discharge valve and triggering mechanism therefor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 15, 2018
Issued Date -
N/A
app pub date -
May 16, 2014
filing date -
May 16, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

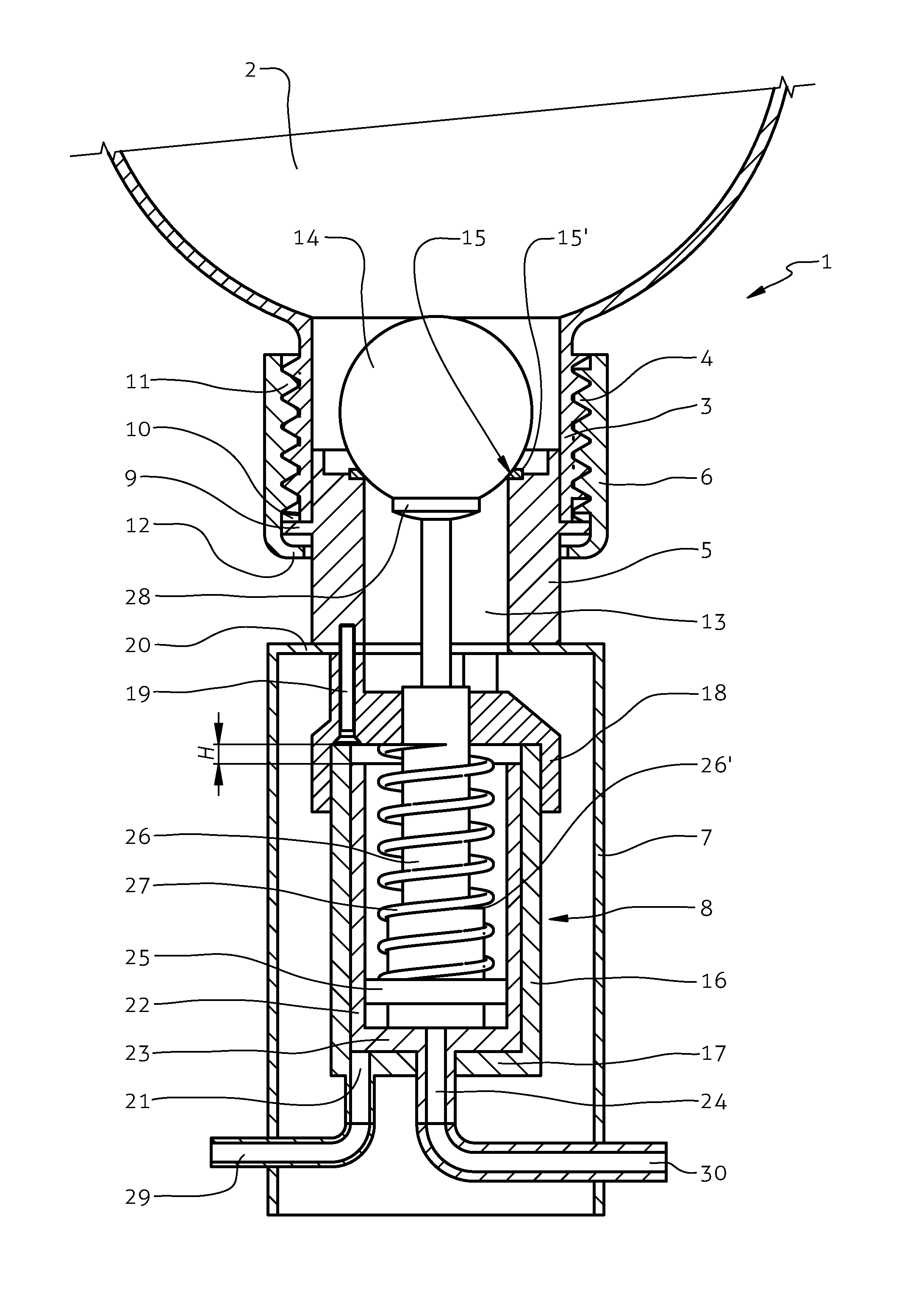

The present invention refers to a flush tank providing a receptacle with a discharge valve and a triggering mechanism therefore. A first end of an adapter (5) is inserted with a press fit into a discharge projection (3) of the receptacle (2) for the flush water. A discharge tube (7) to discharge the flush water from said receptacle (2) is attached to a second end of said adapter (5), wherein a triggering mechanism (8) is arranged within said tube (7), said mechanism releasing flow of the water out of said receptacle (2). The triggering mechanism comprises a body (16) in which a first hollow piston (22) is slidably arranged whereby lifting the first piston initiates a small flush. A second piston (25) is in turn slidably arranged in the first piston whereby lifting the second piston initiates a large flush. The pistons are both actuated pneumatically.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- E03D Class
- 171 Applications Filed
- 151 Patents Issued To-Date
- 88.31 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E03D Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 15, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 15, 2029 |
