System and method for using cloth filters in automated vertical molding
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 15, 2018
Issued Date -
N/A
app pub date -
Apr 15, 2015
filing date -
Jan 30, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

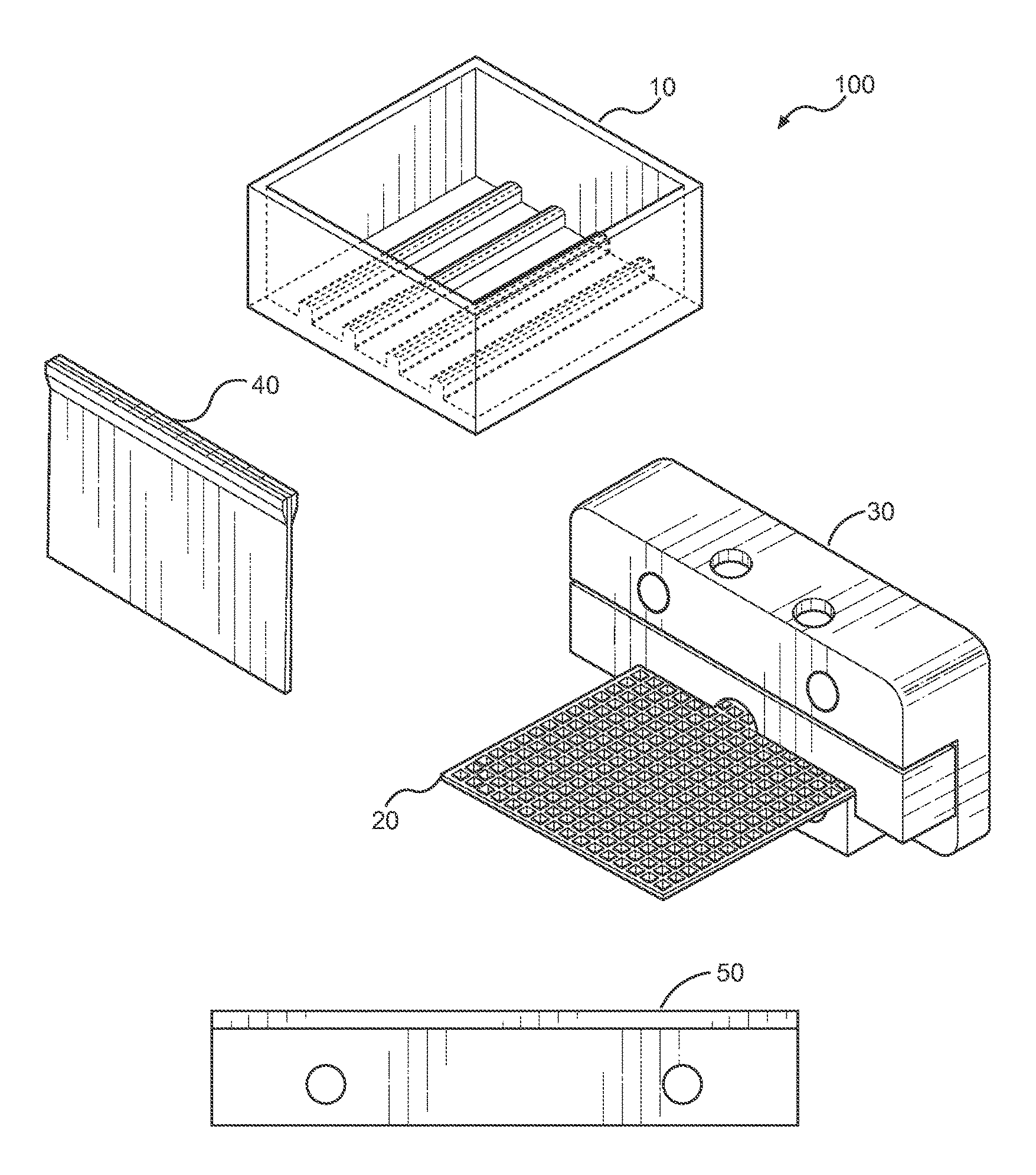

The present invention is a multipart system and method for using cloth filters in automated vertical molding. The system includes a filter setter, a filter print plate and a filter back shelf. The filter setter removably mounts to a mechanical arm and releasably carries at least one cloth filter between upper and lower jaws. The filter print plate mounts to a ram plate while the filter back shelf mounts to a swing plate. During vertical molding, the ram plate and swing plate compress sand to create a mold. The mounted filter print plate creates at least part of a print aperture into which the filter setter inserts the cloth filter. The apertures created by the filter print plate and the filter back shelf support the cloth filter during the founding process.
