Method and assembly for forming components having internal passages using a lattice structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 15, 2018
Issued Date -
N/A
app pub date -
Dec 17, 2015
filing date -
Dec 17, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

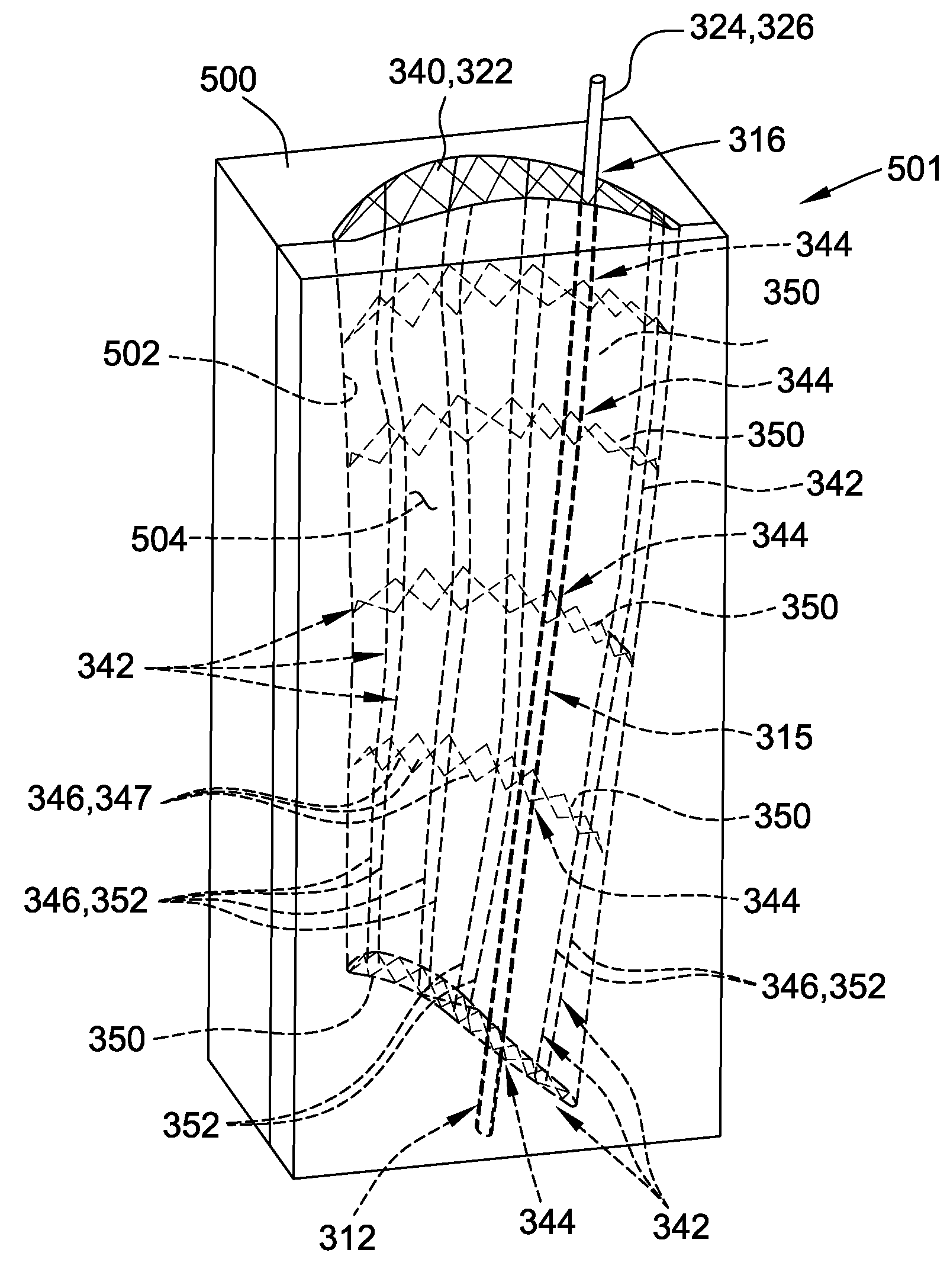

A mold assembly for use in forming a component having an internal passage defined therein is provided. The component is formed from a component material. The mold assembly includes a mold that defines a mold cavity therein. The mold assembly also includes a lattice structure selectively positioned at least partially within the mold cavity. The lattice structure is formed from a first material that has a selectively altered composition in at least one region of the lattice structure. A channel is defined through the lattice structure, and a core is positioned in the channel such that at least a portion of the core extends within the mold cavity and defines the internal passage when the component is formed in the mold assembly.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F04D Class
- 30.09 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 15, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 15, 2029 |
